CONCEPT
Z1100 SE
ESSENCE
-

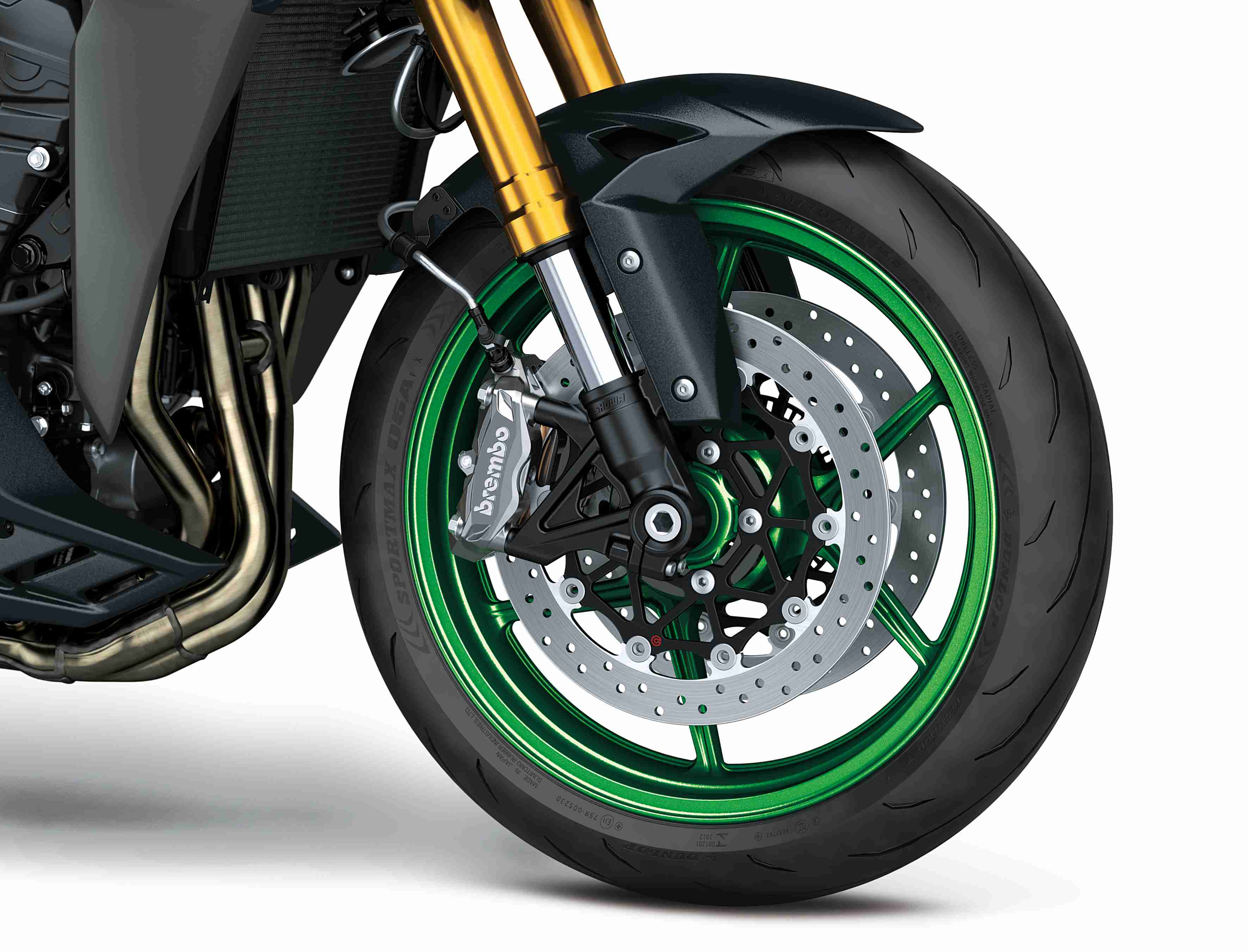

HIGH-PERFORMANCE BRAKING SYSTEM
-

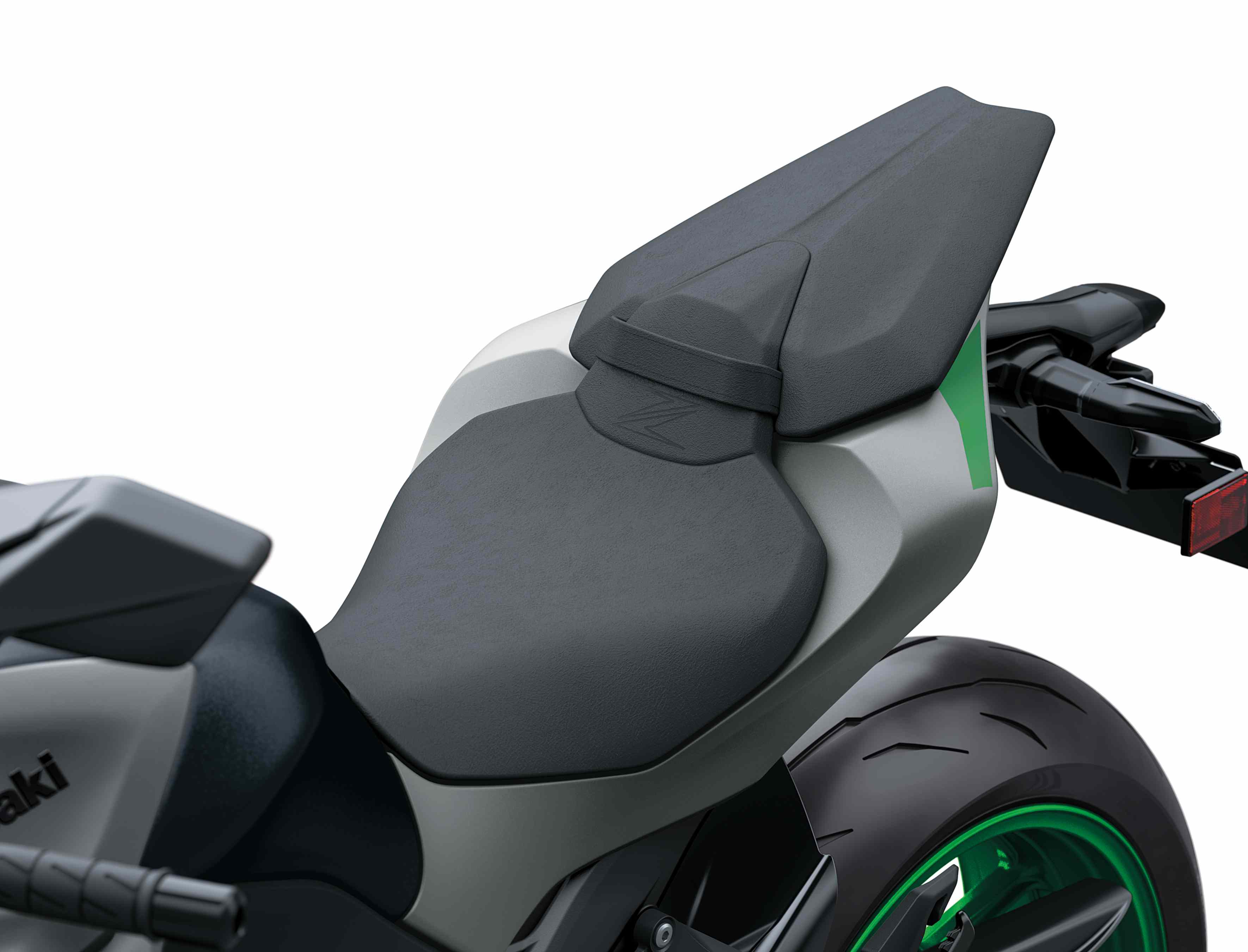

SPORTY SINGLE-SEAT DESIGN
-

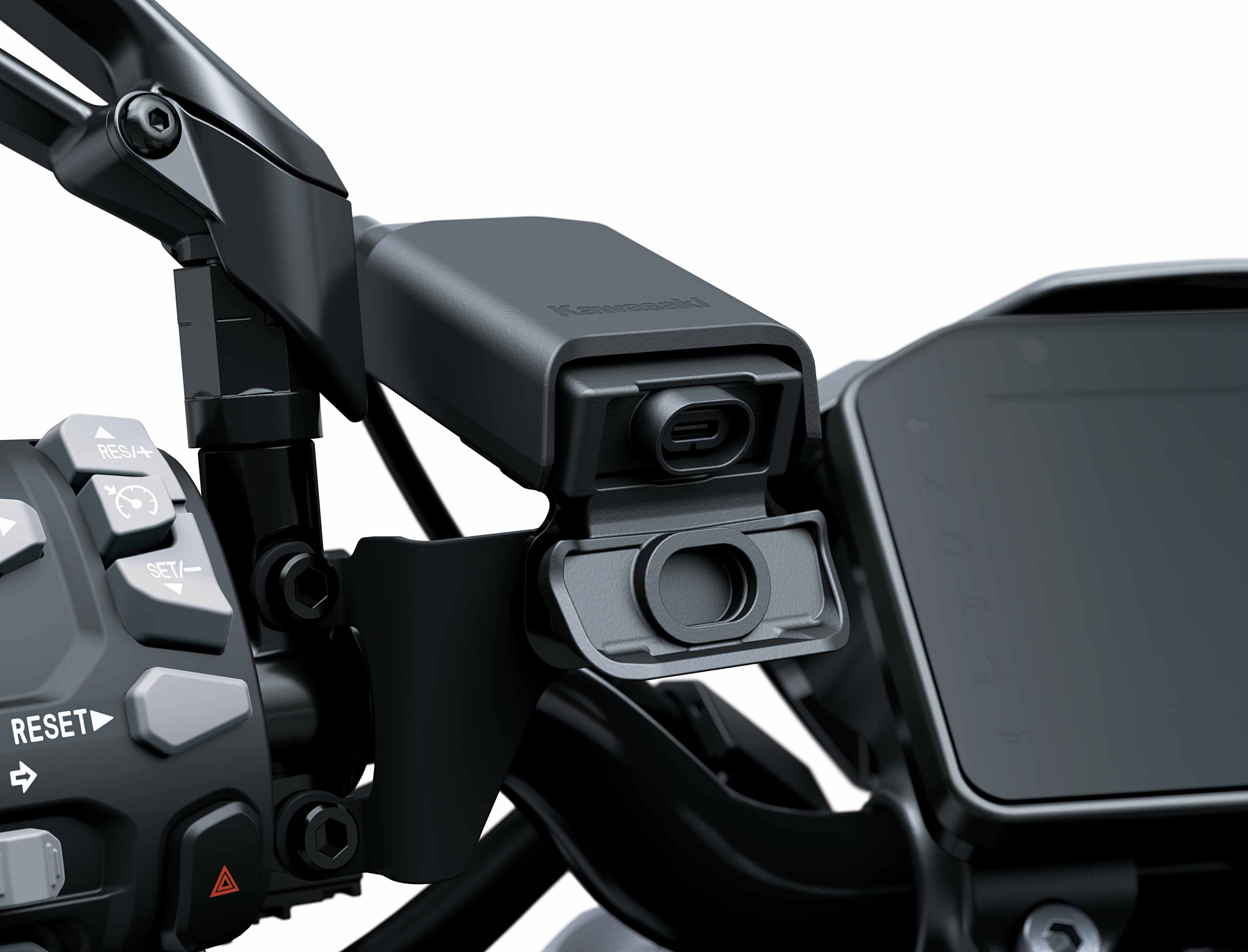

USB-C & ADJUSTABLE SUSPENSION
-

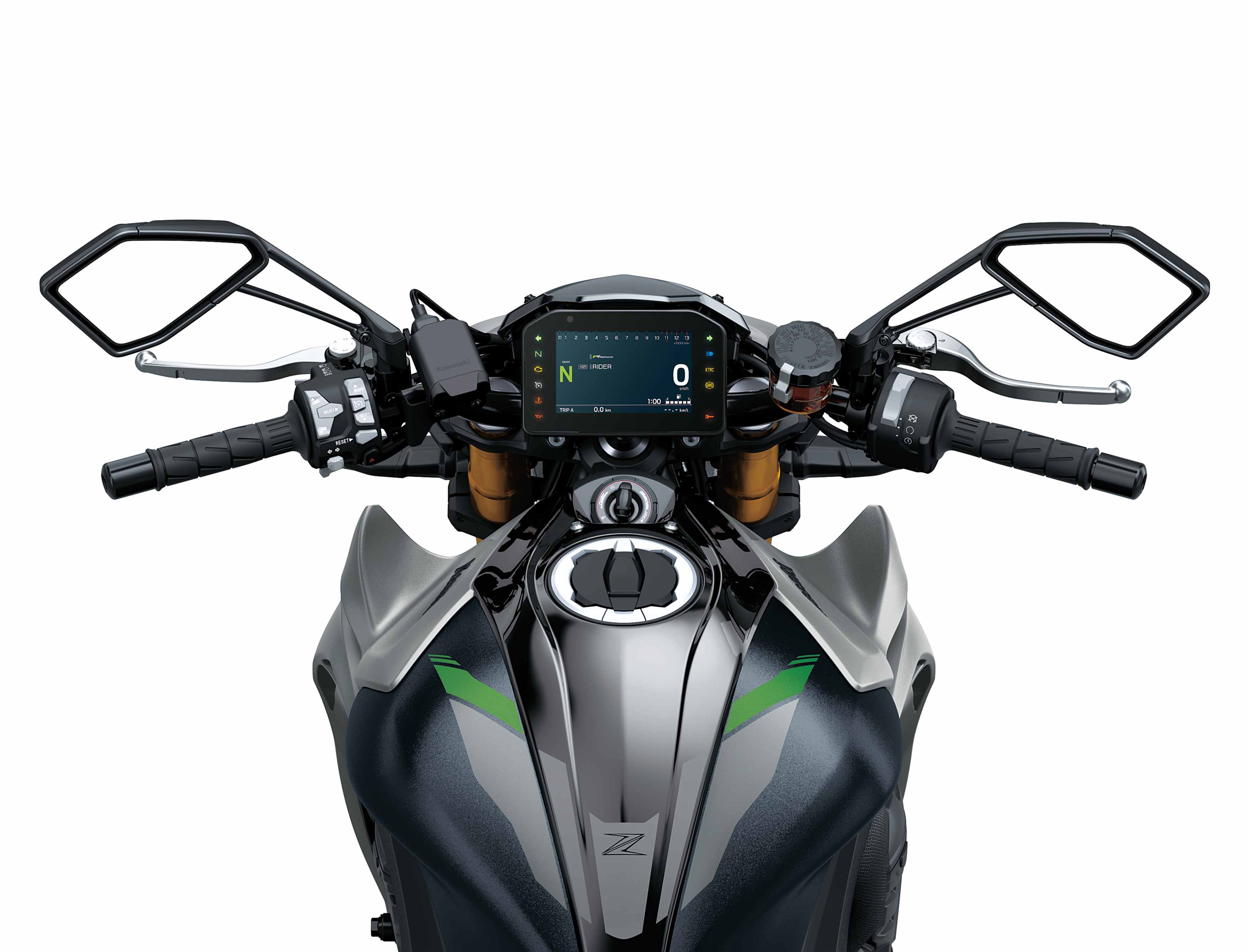

ALUMINIUM FAT-TYPE HANDLEBAR
TOP FEATURES
LIGHTWEIGHT ALUMINIUM FRAME
The Z1100 SE features a lightweight aluminium twin-tube frame designed for sharp handling and excellent stability. Its narrow construction improves rider comfort, while high rigidity and mass centralisation deliver agile cornering and a planted riding feel. Using the engine as a stressed member further enhances responsiveness and control.
ADVANCED SFF-BP FORK
The Separate Function Fork – Big Piston (SFF-BP) suspension delivers the ideal balance of sporty handling and everyday comfort. Smooth damping action improves braking stability and control, especially during corner entry. Its advanced design ensures a composed ride with precise front-end feedback.
HORIZONTAL BACK-LINK SUSPENSION
The Horizontal Back-link rear suspension enhances the Z1100 SE’s direct handling and balanced weight transfer during braking and acceleration. Positioned above the swingarm, it improves mass centralisation and keeps the suspension away from exhaust heat. Adjustable rebound and preload settings allow riders to fine-tune performance for greater comfort and control.SPECIFICATIONS
SUGOMI
PERFORMANCE
POWER
CONTROL
TECHNOLOGY
POWER
-
Engine Type
Liquid-cooled, 4-stroke In-Line Four
-
Valve System
DOHC, 16 valves
-
Bore X Stroke
77.0 x 59.0 mm
-
Displacement
1,099 CC
-
Compression Ratio
11.8:1
-
Fuel Supply
Fuel injection: 38 mm x 4
-
Lubrication System
Forced lubrication, wet sump
-
Starting System
Electric
-
Ignition System
Digital
PERFORMANCE
-
Max. power
100.0 kW {136 PS} / 9,000 rpm
-
Max. torque
113.0 N·m {11.5 kgƒ·m} / 7,600 rpm
-
Driving system
Chain
-
Transmission
6-speed, return
-
Primary reduction ratio
1.528 (81/53)
-
Final reduction ratio
2.800 (42/15)
-
Clutch type (Primary)
Wet multi-disc, manual
DETAILS
-
Frame Type
Twin-tube, aluminium
-
Wheel travel: Front
120 mm
-
Wheel travel: Rear
136 mm
-
Caster (Rake angle)
24.5º
-
Trail
101 mm
-
Steering angle (left/right)
29º / 29º
-
Tyre: Front
120/70ZR17M/C (58W)
-
Tyre: Rear
190/50ZR17M/C (73W)
-
Rear Type
260 mm disc (Effective diameter: 226 mm)
-
Overall length
2,055 mm
-
Overall width
825 mm
-
Overall height
1,085 mm
-
Wheelbase
1,440 mm
-
Road clearance
125 mm
-
Seat height
815 mm
-
Fuel tank capacity
17 litres
DOWNLOAD
Get brochure & catalogue of this model to learn more about the motorcycle model.
** The curb weight includes all materials and fluids required to operate properly, a full tank of fuel (over 90 percent capacity), and tool kit (if provided).
KAWASAKI CARE: Read the Manual and all warnings on the product. Always wear a helmet, eye protection, and appropriate clothing for riding conditions. Never drive under the influence of drugs or alcohol. Follow the maintenance schedule in your Manual. © 2022 Edaran Modenas Sdn Bhd. All Rights Reserved.
Specifications are subject to change.
