CONCEPT

NEW MODEL

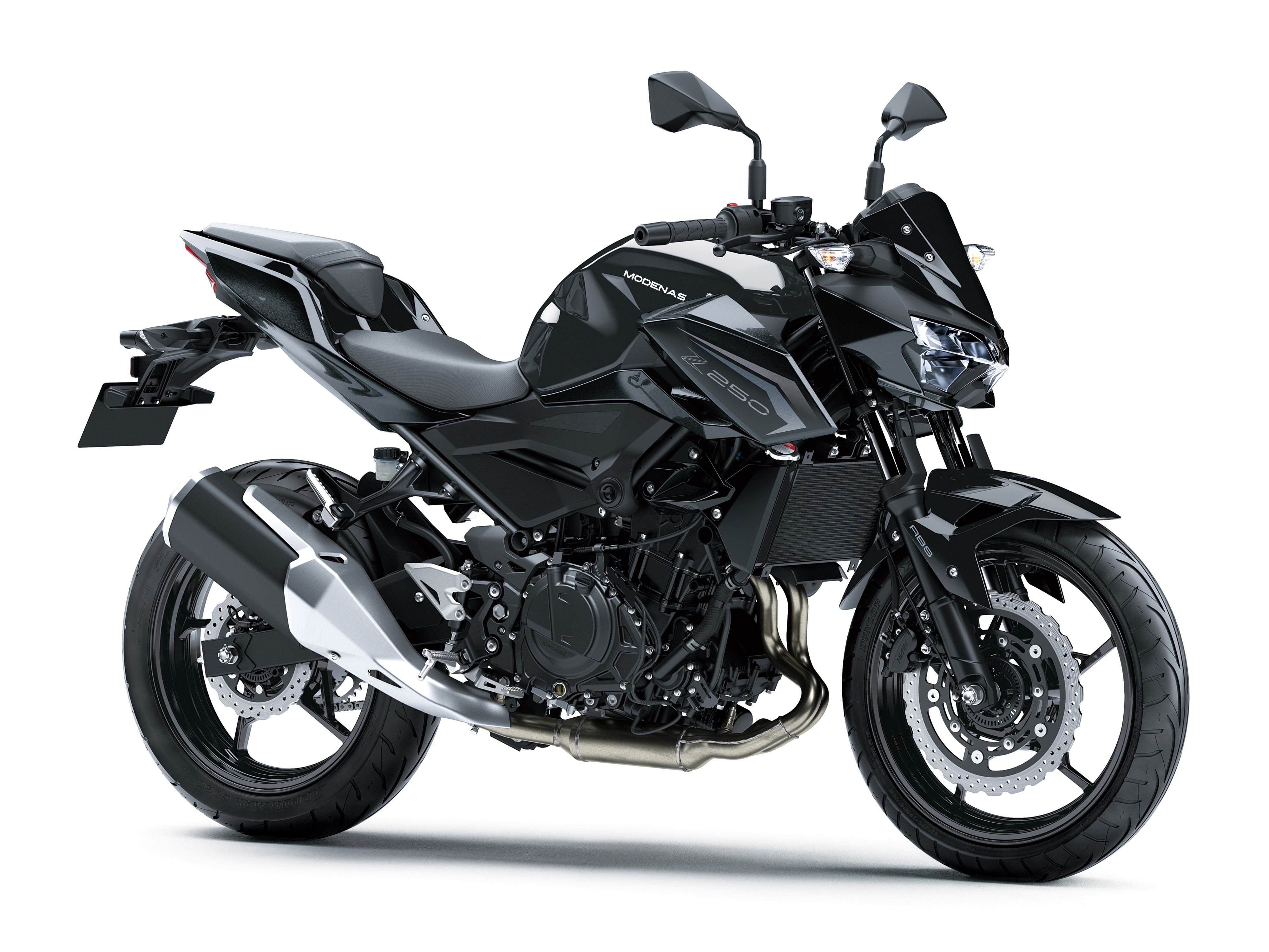

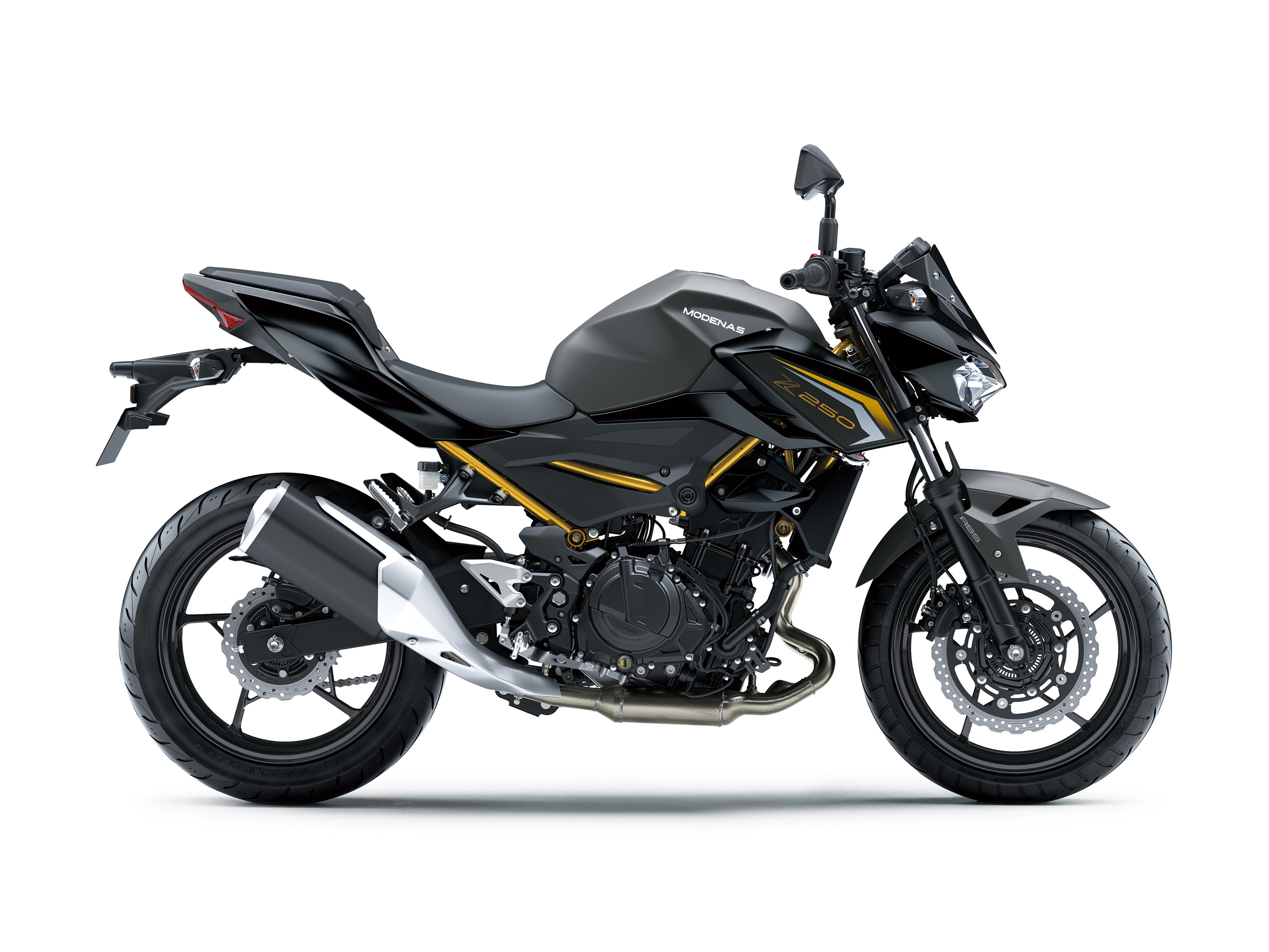

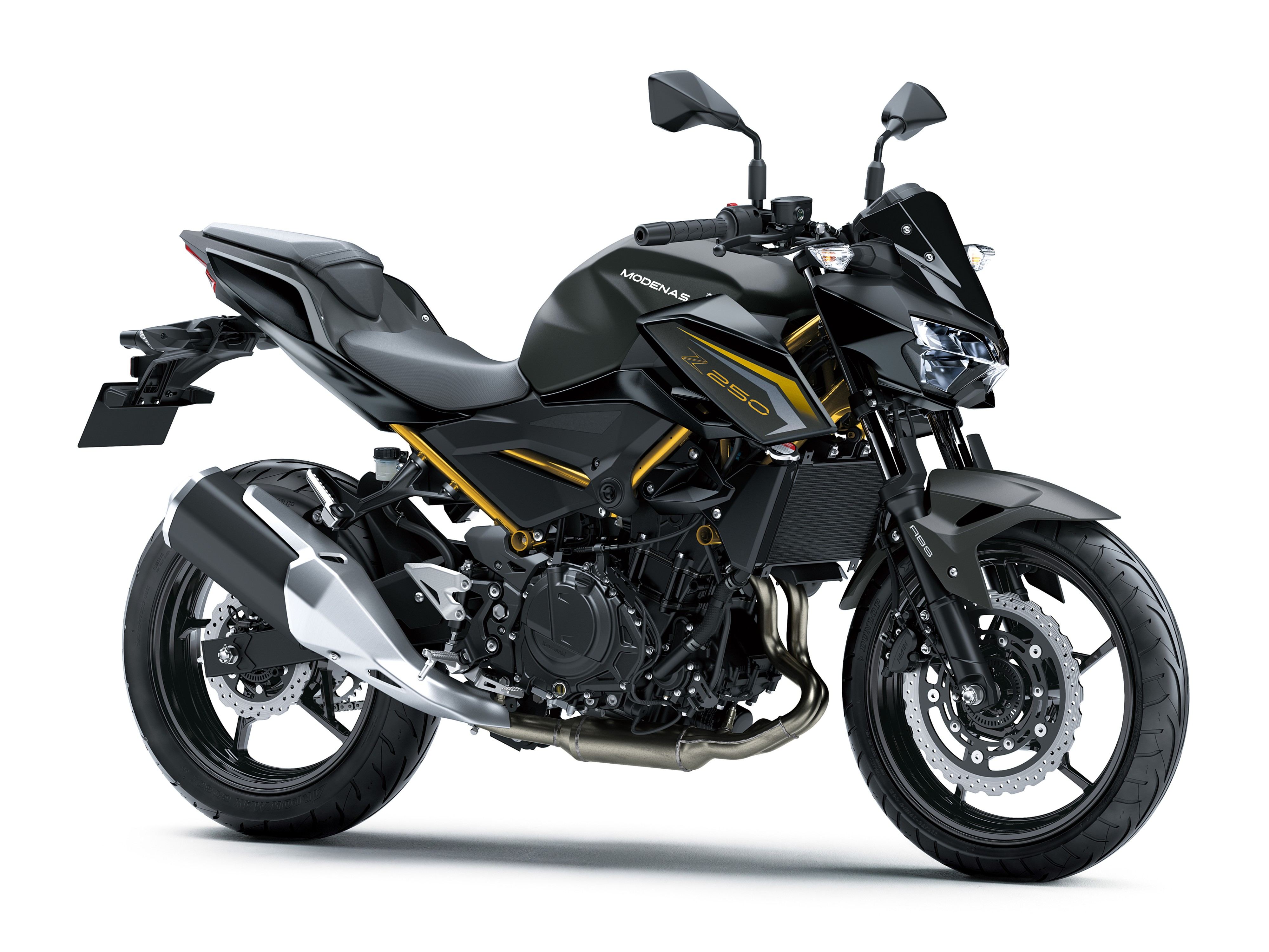

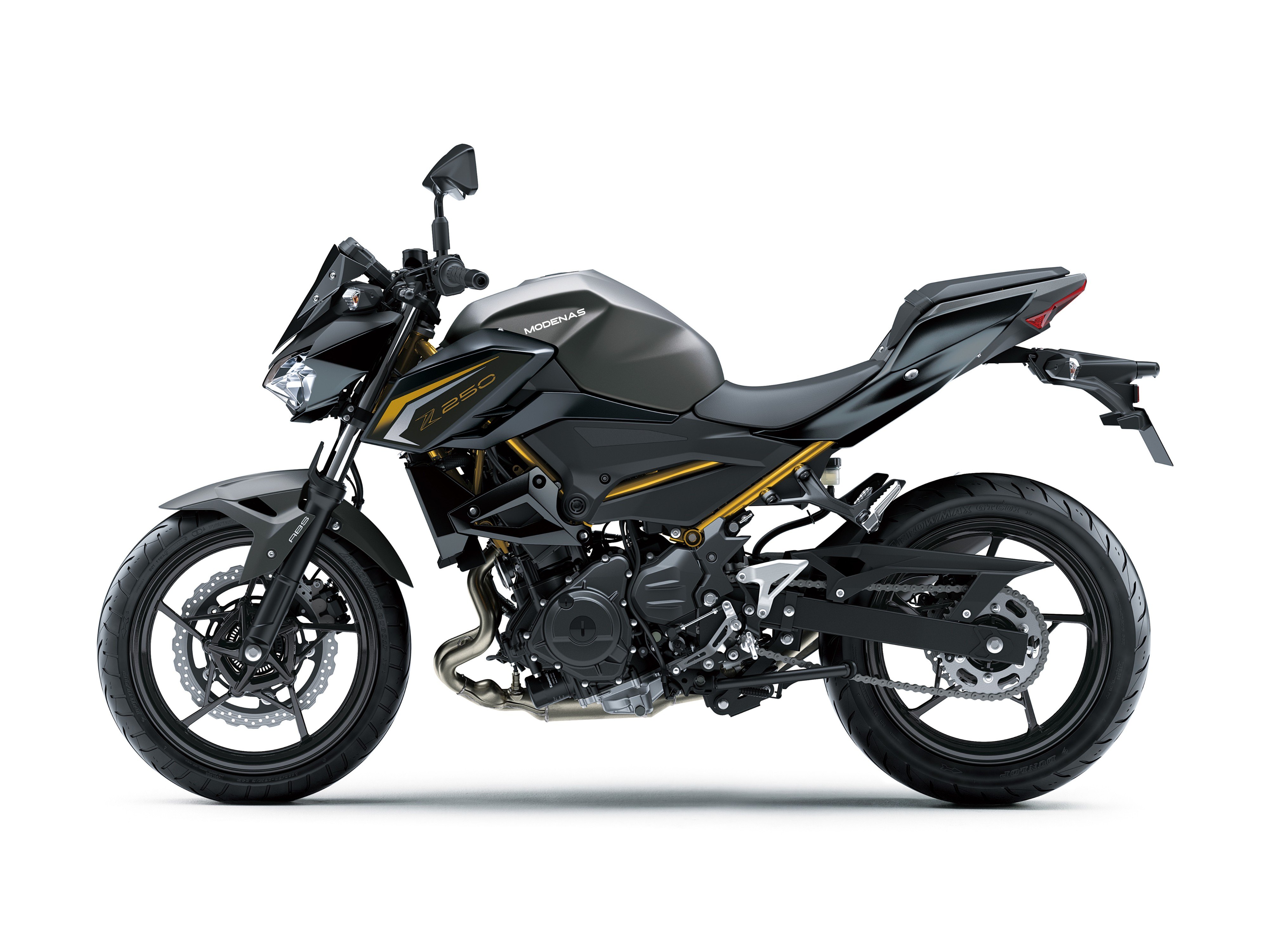

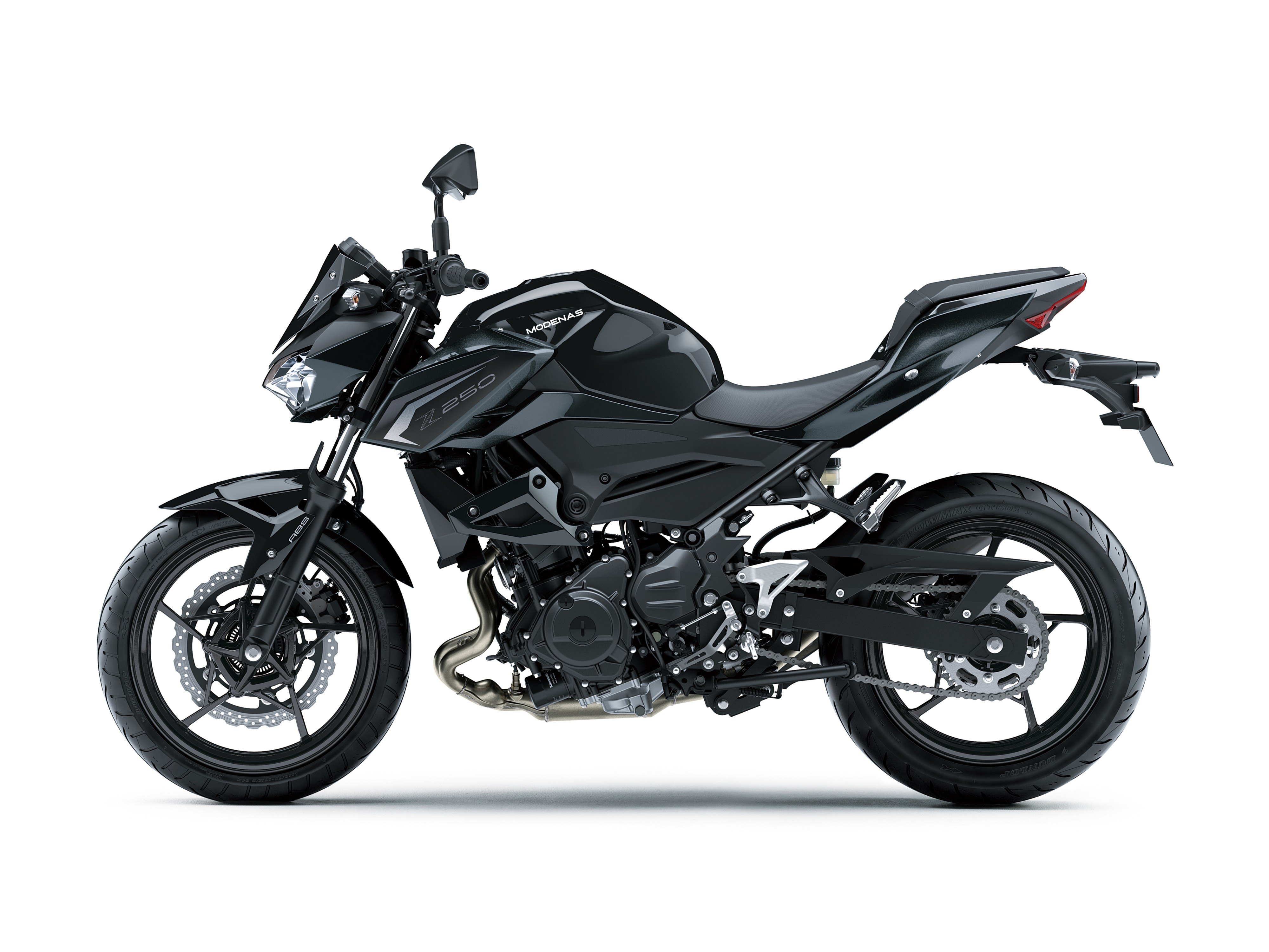

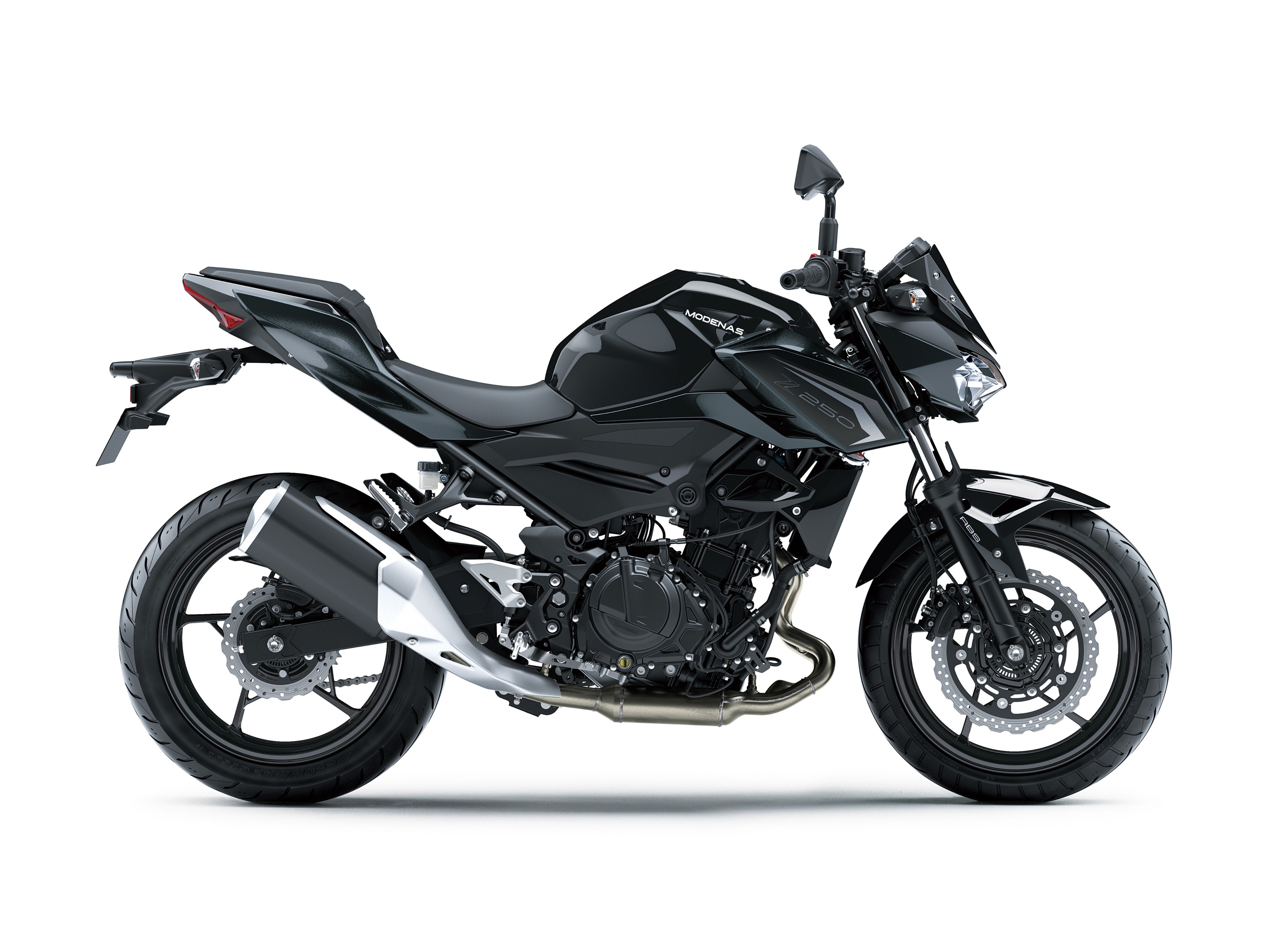

Z250 ABS

TOP FEATURES

COMPACT MULTI-FUNCTION INSTRUMENTATION

The Z250 ABS is equipped with the same stacked instrument cluster as the Z650 ABS. Offering an easy-to-read layout, the analogue-style tachometer features a gear position indicator at its centre and sits atop a multi-function LCD screen.

NEW ASSIST SLIPPER CLUTCH

More compact clutch (ø139 mm >> ø125 mm) with less rigid operating plates offers a 20% lighter lever pull. Complementing the extremely light feel at the lever, the new clutch has a wider engagement range, facilitating control.

LIGHTWEIGHT TRELLIS FRAME

The Z250 ABS features a trellis frame similar in design to that of the Ninja H2. Kawasaki’s advanced dynamic rigidity analysis was used to ensure optimum rigidity with light weight. The engine is rigid-mounted and used as a stressed member. The new frame design contributes significantly to the bike’s low curb mass.

LARGE-DIAMETER FRONT BRAKE DISC

A rigid new front brake master cylinder helps eliminate ineffective (idle) stroke, contributing to controllability, while carefully selected brake hose dimensions and material contribute to brake touch.

ERGONOMICS FOR ACTIVE CONTROL

Relaxed rider triangle accommodates a wide range of rider sizes and riding situations, contributing to its rider-friendly character. The relatively upright riding position and wider handlebar put the rider in the ideal position for active control, facilitating dynamic, sporty riding.

SPECIFICATIONS

LIMITED-PRODUCTION

MODEL

FORGED MARCHESINI

WHEELS

TECHNOLOGY

Engine Management Technology

Chassis Management Technology

POWER

Engine

4-Stroke, 2-Cylinder, DOHC, 4-Valve, Liquid Cooled

Ignition

B&C (TCBI, B, P&EL, ADV.D.)

Displacement

249CC

Transmission

6-speed, Constant Mesh, Return Shift

Bore X Stroke

62.0 mm x 41.2 mm

Final Drive

Sealed Chain

Fuel System

Fuel Injection

Electronic Rider Aids

Assist & Slipper Clutch, Ergo-Fit, Anti-Lock Brake System (ABS), Economical Riding Indicator

PERFORMANCE

Front Suspension / Wheel Travel

Telescopic fork, 120 mm

Front Brakes

Single Disc (310mm)

Rear Suspension / Wheel Travel

Mono Shock, 130mm

Rear Brakes

Single Disc (220mm)

Front Tire

110/70-17M/C 54H

Rear Tire

140/70-17M/C 66H

DETAILS

Frame Type

Trellis, High-Tensile Steel

Fuel Capacity

14 liters

Rake/Trail

24.5°/92 mm

Curb Weight

165 kg*

Overall Length

1,990 mm

Overall Width

800 mm

Overall Height

1,060 mm

Color Choices

Metallic Spark Black, Candy Cardinal Red

Ground Clearance

145 mm

Seat Height

795 mm

DOWNLOAD

Get brochure & catalogue of this model to learn more about the motorcycle model.

Z250 ABS BROCHURE

Z250 Brochure_v2.pdf

77.79 MB

** The curb weight includes all materials and fluids required to operate properly, a full tank of fuel (over 90 percent capacity), and tool kit (if provided).
