CONCEPT
ESSENCE
-
BOTTOM-LINK UNI TRAK REAR SUSPENSION
-

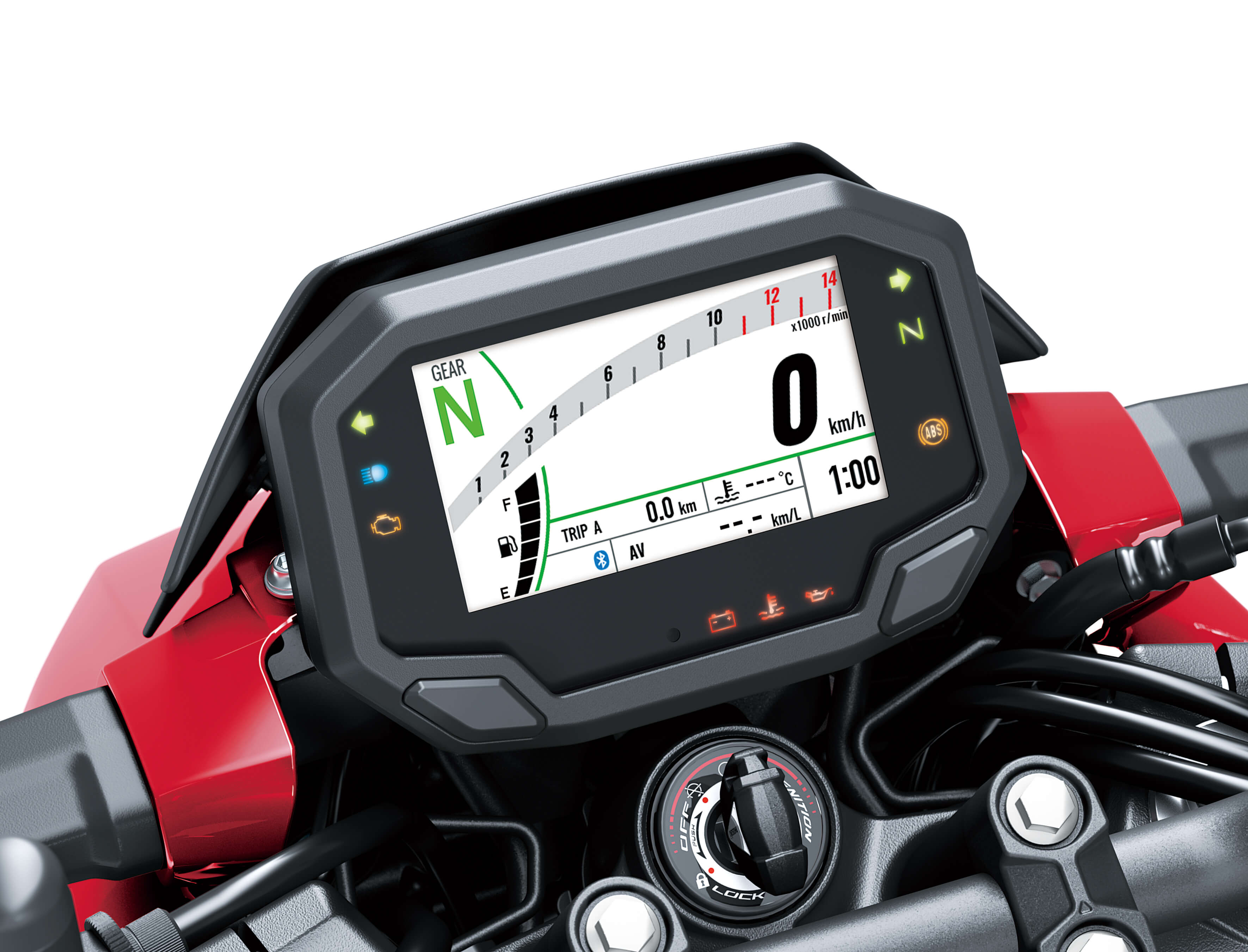

TFT METER INSTRUMENT WITH SMARTPHONE CONNECTIVITY
-

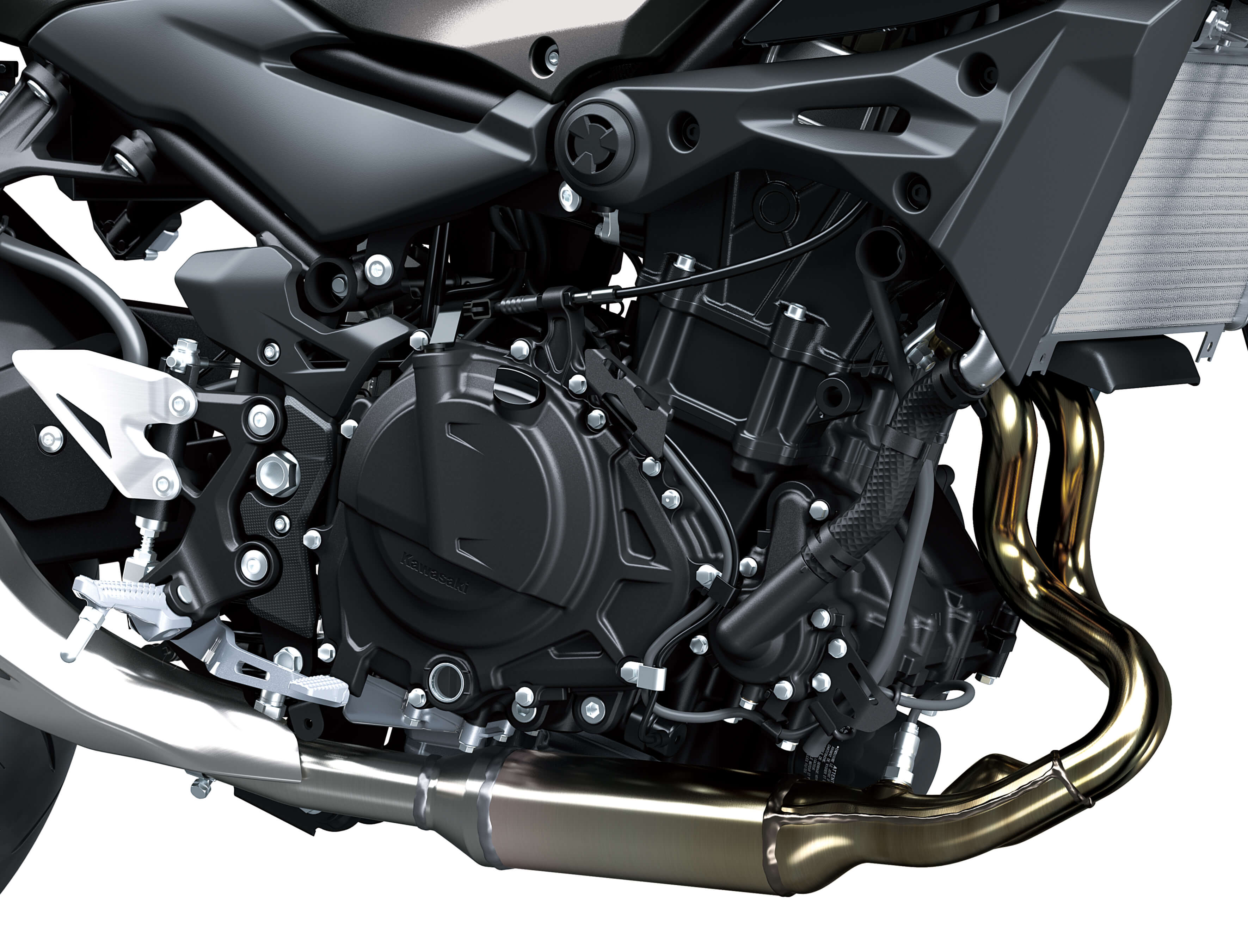

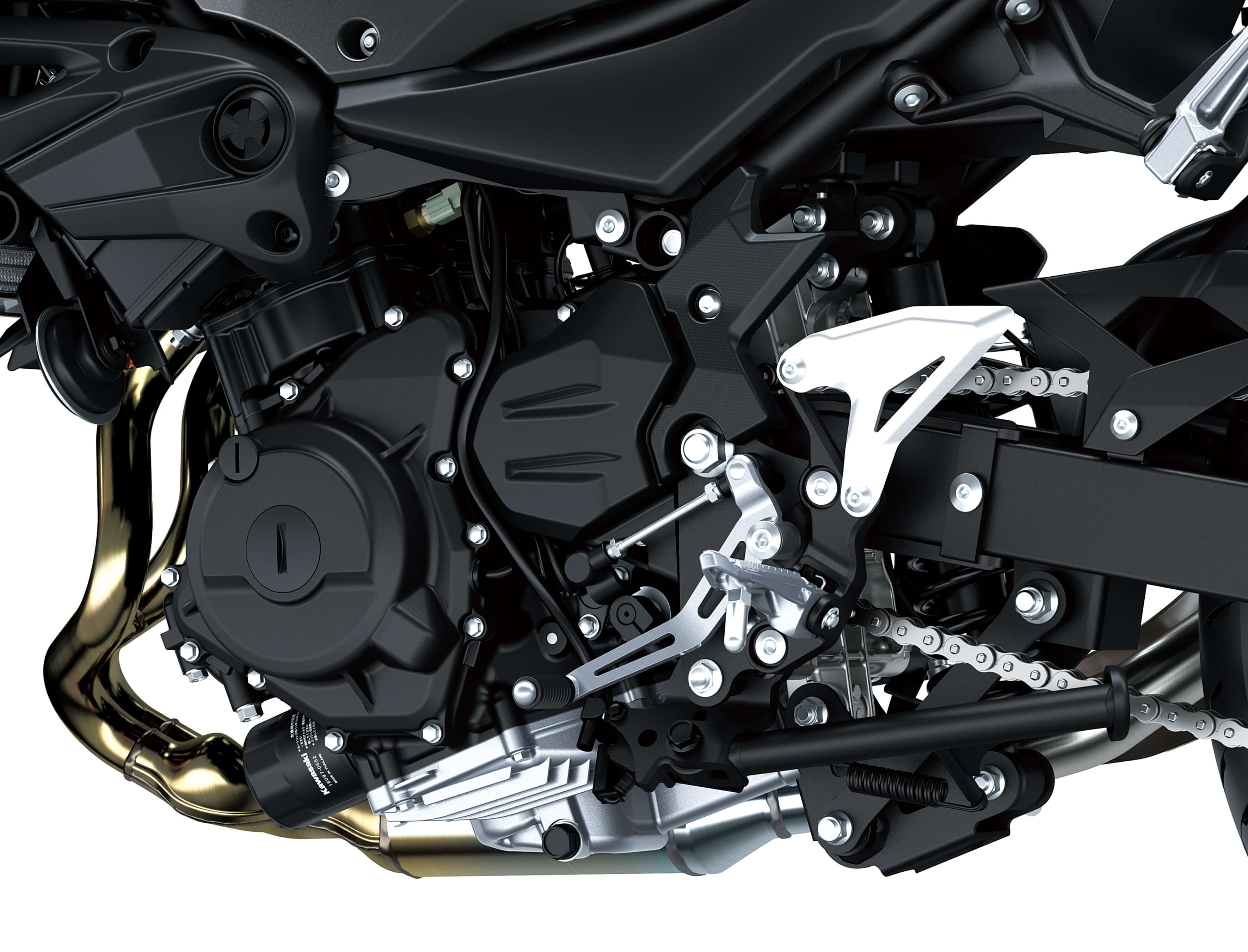

FUEL-INJECTED 451 CM3 PARALLEL TWIN ENGINE
-
ASSIST & SLIPPER CLUTCH SYSTEM
SPECIFICATIONS
ENGINE
451 CM3
VERSION
SE
TECHNOLOGY
Engine Management Technology
Chassis Management Technology
POWER
-
Engine
Liquid-cooled, 4-stroke Parallel Twin
-
Displacement
451 cm3
-
Ignition System
Digital
-
Starting System
Electric
-
Bore X Stroke
70.0 x 58.6 mm
-
Compression Ratio
11.3:1
-
Lubrication System
Forced lubrication, wet sump
PERFORMANCE
-
Max. power
33.4 kW {45 PS} / 9,000 min-1
-
Max. torque
42.6 N·m {4.3 kgƒ·m} / 6,000 min-1
-
Primary reduction ratio
2.029 (69/34)
-
Final reduction ratio
3.071 (43/14)
-
Driving system
Chain
-
Transmission
6-speed, return
DETAILS
-
Overall length
1,995 mm
-
Overall width
730 mm
-
Overall height
1,120 mm
-
Wheelbase
1,375 mm
-
Road clearance
145 mm
-
Seat height
785 mm
-
Curb mass
171 kg
-
Fuel tank capacity
14 litres
-
Suspension: Front
ø41 mm telescopic fork
-
Suspension: Rear
Bottom-Link Uni-Trak, gas-charged shock with adjustable preload
-
Brakes: Front
Dual-Piston, Semi-floating ø310 mm disc
-
Brakes: Rear
Dual Piston, ø220 mm disc
** The curb weight includes all materials and fluids required to operate properly, a full tank of fuel (over 90 percent capacity), and tool kit (if provided).
KAWASAKI CARE: Read the Manual and all warnings on the product. Always wear a helmet, eye protection, and appropriate clothing for riding conditions. Never drive under the influence of drugs or alcohol. Follow the maintenance schedule in your Manual. © 2022 Edaran Modenas Sdn Bhd. All Rights Reserved.
Specifications are subject to change.
