CONCEPT
ESSENCE
-
SMOOTH, FLOWING NINJA ZX STYLING
-
636 CM3 LIQUID-COOLED, 4-STROKE IN-LINE FOUR
-
LARGE BRAKE DICS, MONOBLOC CALIPER
KIBS (KAWASAKI INTELLIGENT ANTI-LOCK BRAKE SYSTEM)
-
TFT COLOUR INSTRUMENTATION WITH SMARTPHONE CONNECTIVITY
-
LIGHT-WEIGHT, PRESSED-ALUMINIUM PERIMETER FRAME
-
SFF-BP (SEPARATE FUNCTION FORK – BIG PISTON)
TOP FEATURES

INTEGRATED RIDING MODES

POWER MODE SELECTION
Riders can choose from Full Power or Low Power mode.
KTRC (KAWASAKI TRACTION CONTROL)

KQS (KAWASAKI QUICK SHIFTER)
SPECIFICATIONS
INTEGRATED
RIDING MODE
SELECTION
POWER MODE
KAWASAKI
TRACTION CONTROL
KAWASAKI QUICK SHIFTER
KQS
TECHNOLOGY
Engine Management Technology
Chassis Management Technology
POWER
-
Engine
Liquid-cooled, 4-stroke In-Line Four, DOHC, 16 valves
-
Bore X Stroke
67.0 x 45.1 mm
-
Displacement
636 cm3
-
Compression Ratio
12.9:1
-
Fuel Supply
Fuel injection: ø38 mm x 4 with oval sub-throttle
-
Lubrication System
Forced lubrication, wet sump
-
Starting System
Electric
-
Ignition System
Digital
PERFORMANCE
-
Max. power
91.0 kW {124 PS} / 13,000 min-1
-
Max. power with Ram Air
95.2 kW {129 PS} / 13,000 min-1
-
Max. torque
69.0 N·m {7.0 kgƒ·m} / 10,800 min-1
-
Transmission
6-speed, return
-
Clutch type (Primary)
Wet multi-disc, manual
-
Suspension: Front
ø41 inverted fork (SFF-BP) with rebound and compression damping and spring preload adjustability, and top-out springs
-
Suspension: Rear
Bottom-Link Uni Trak, gas-charged shock with piggyback reservoir, compression and rebound damping and spring preload adjustability
-
Brake; Front
Dual semi-floating ø310 mm discs (Effective diameter: ø275 mm) Dual radial-mount, monobloc, opposed 4-piston
-
Brake: Rear
Single ø220 mm disc (Effective diameter: ø186 mm) Single-bore pin-slide
DETAILS
-
Overall length
2,025 mm
-
Overall width
710 mm
-
Overall height
1,105 mm
-
Wheelbase
1,400 mm
-
Road clearance
130 mm
-
Seat height
830 mm
-
Curb mass
198 kg
-
Fuel tank capacity
17 litres
** The curb weight includes all materials and fluids required to operate properly, a full tank of fuel (over 90 percent capacity), and tool kit (if provided).
KAWASAKI CARE: Read the Manual and all warnings on the product. Always wear a helmet, eye protection, and appropriate clothing for riding conditions. Never drive under the influence of drugs or alcohol. Follow the maintenance schedule in your Manual. © 2022 Edaran Modenas Sdn Bhd. All Rights Reserved.
Specifications are subject to change.

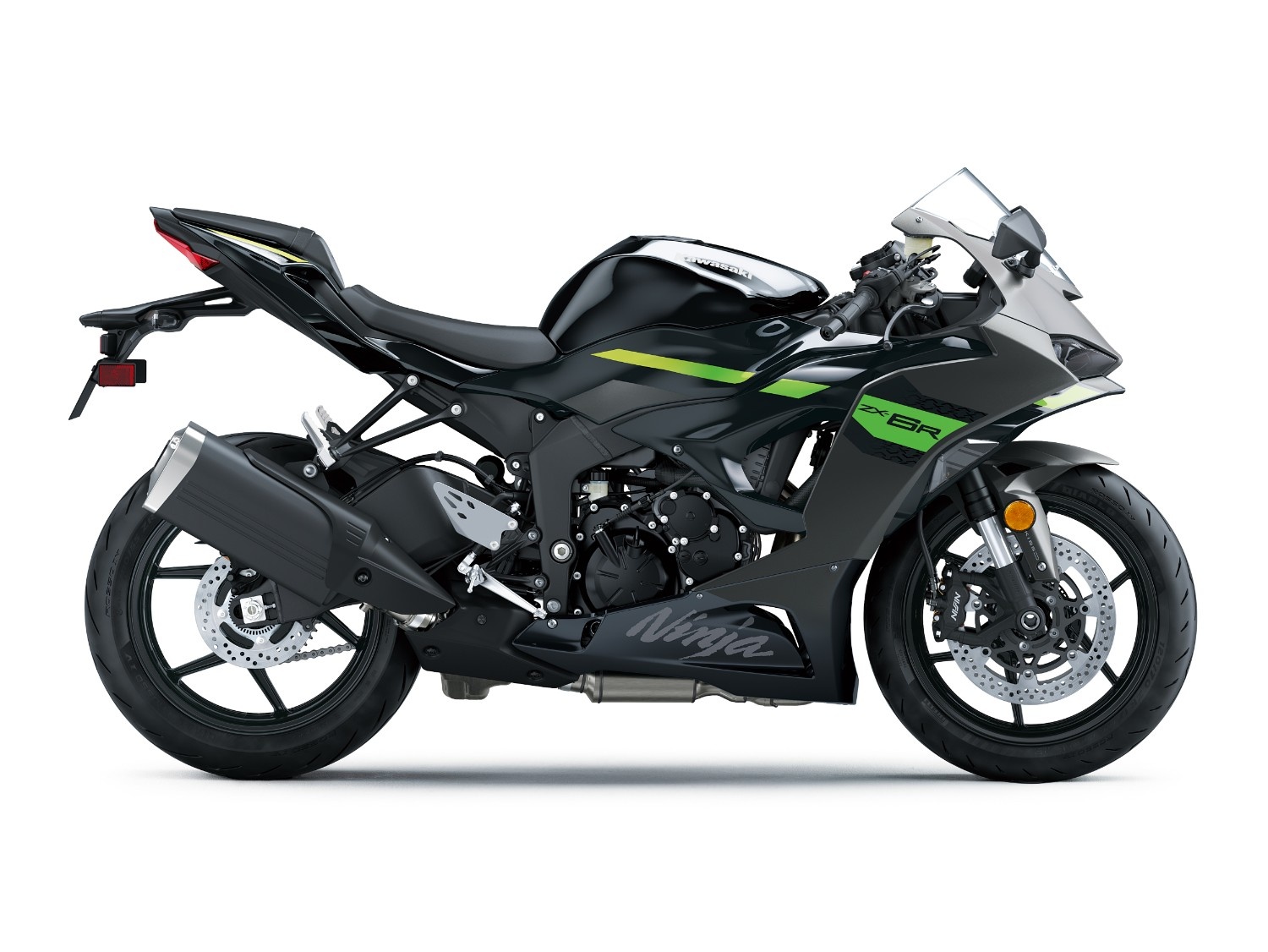

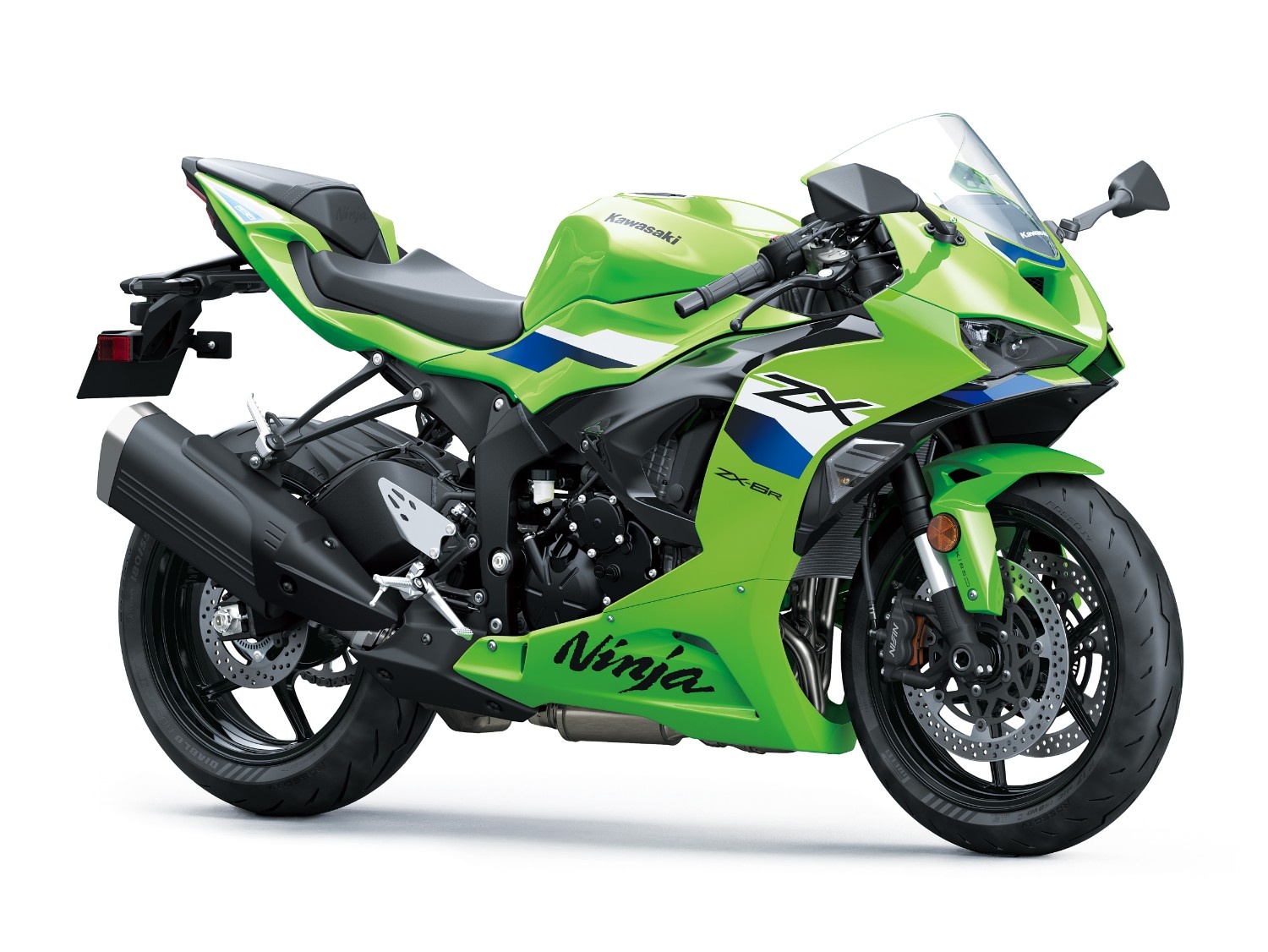

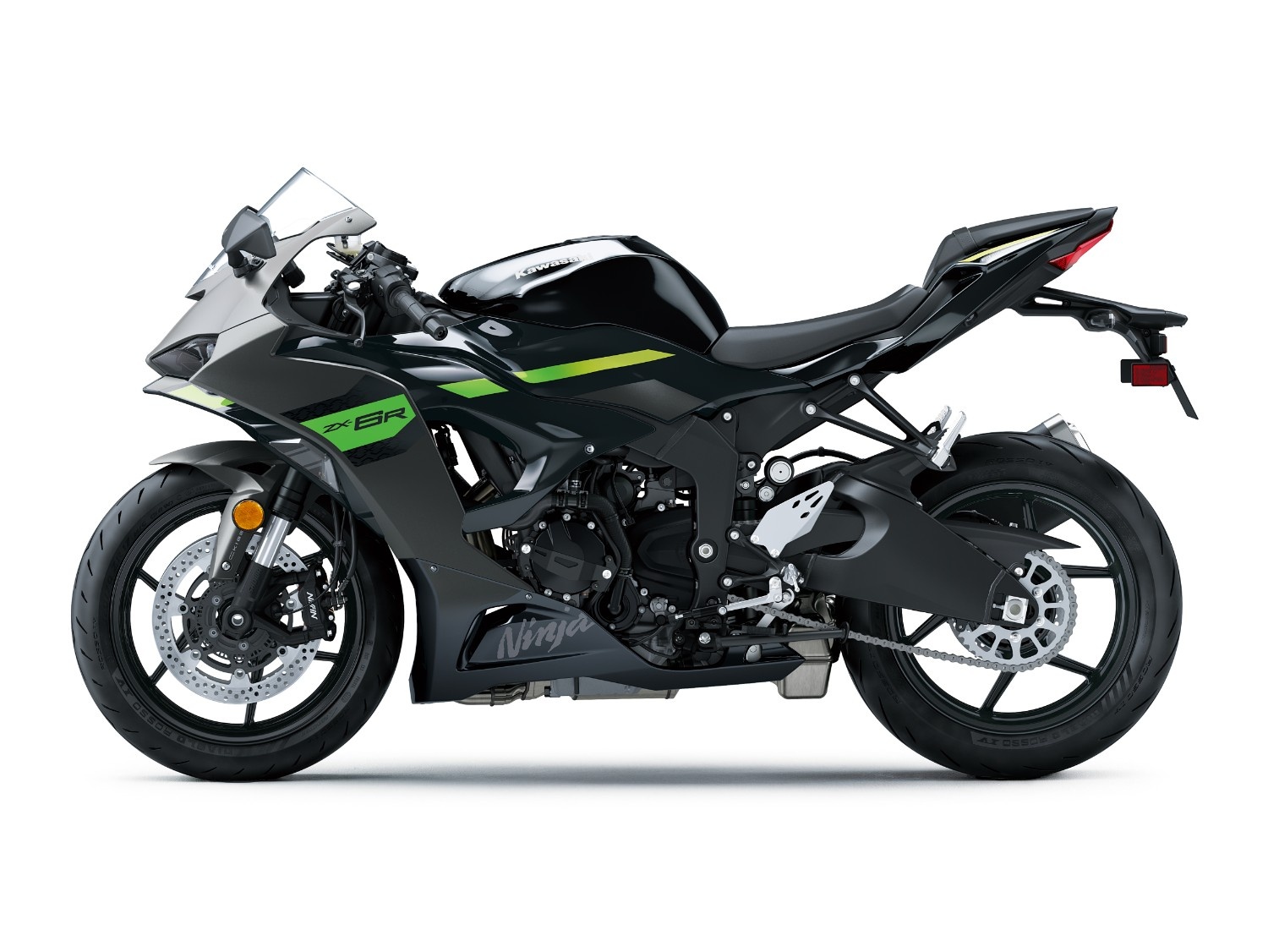

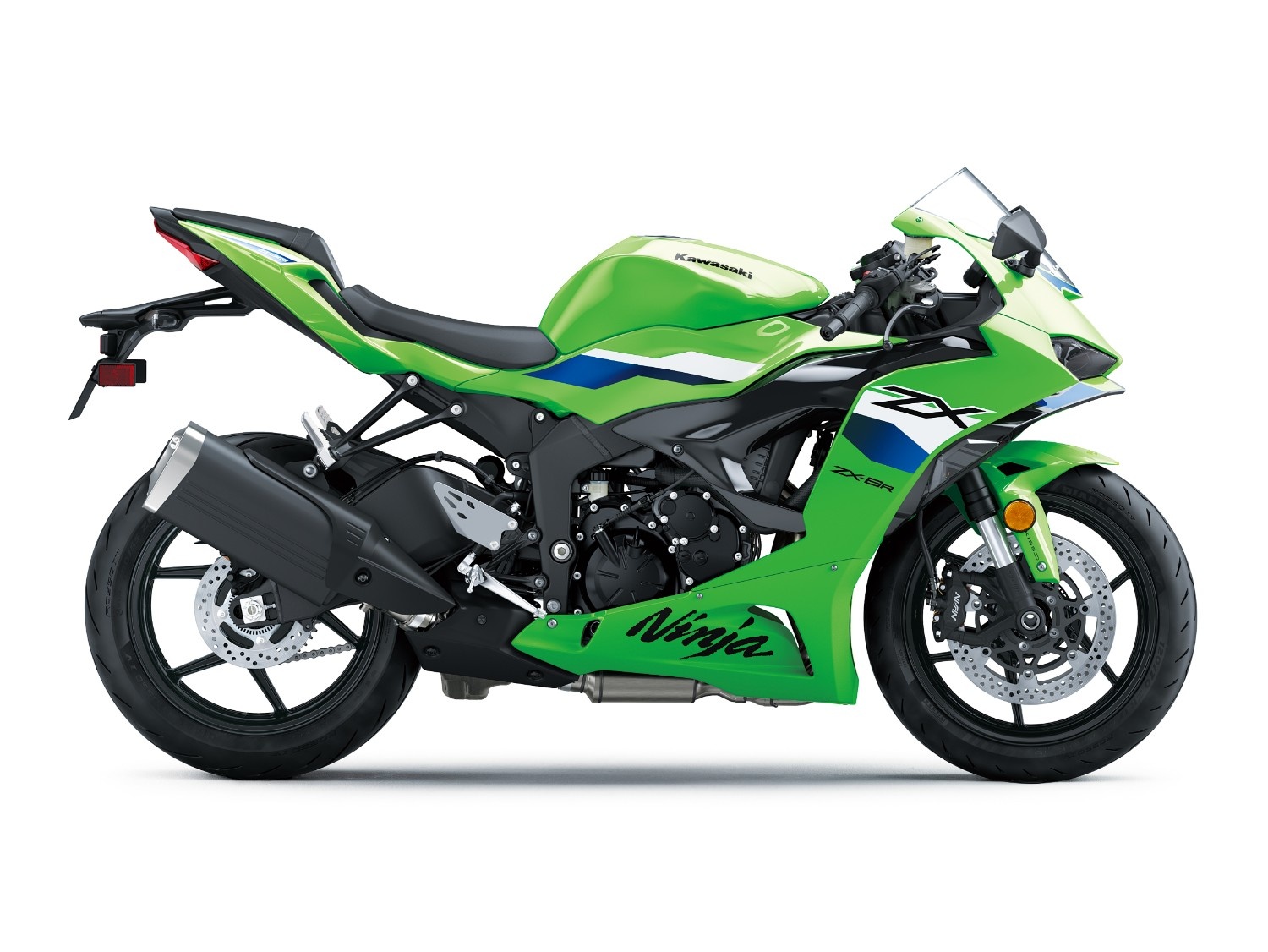

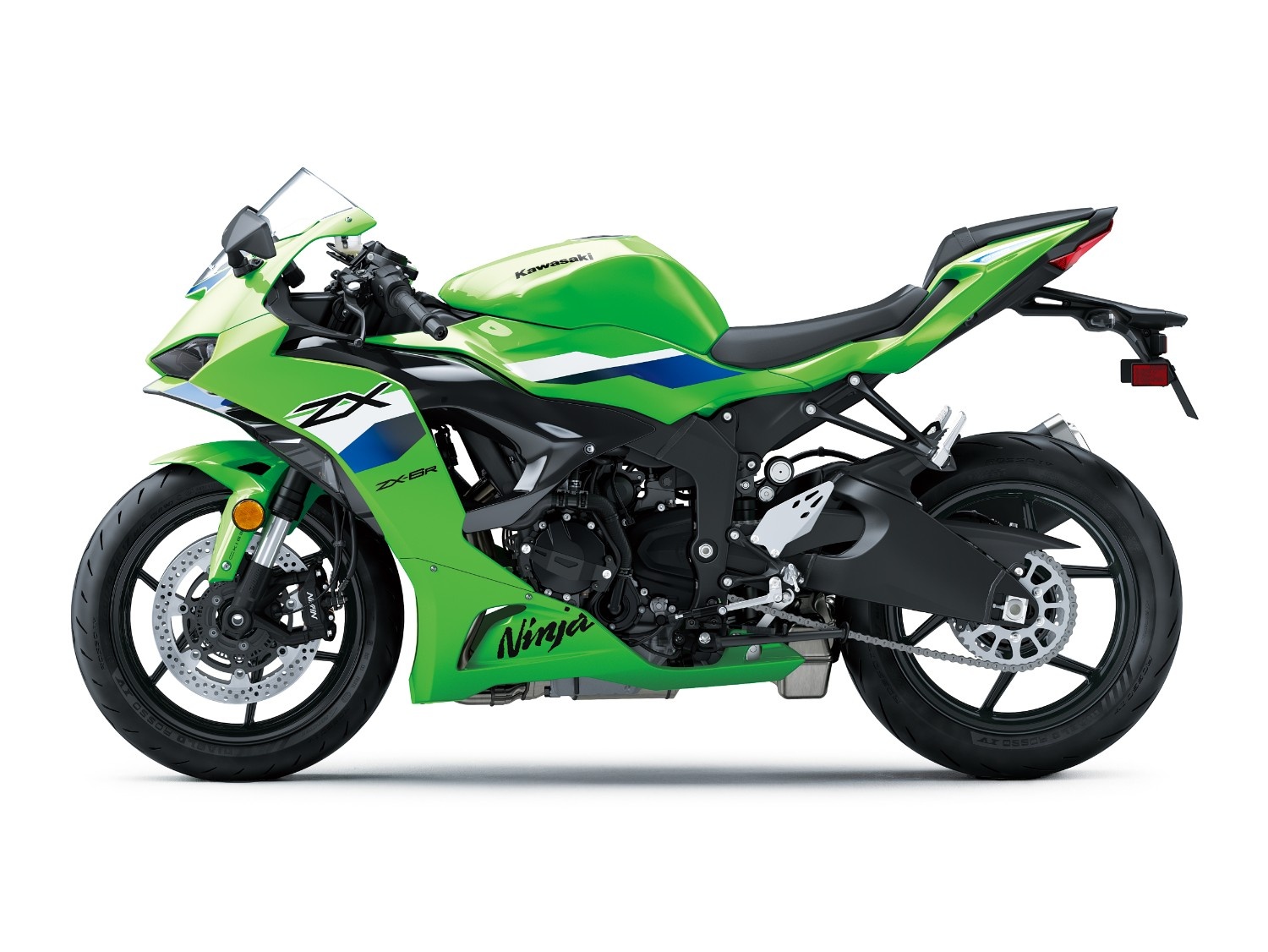

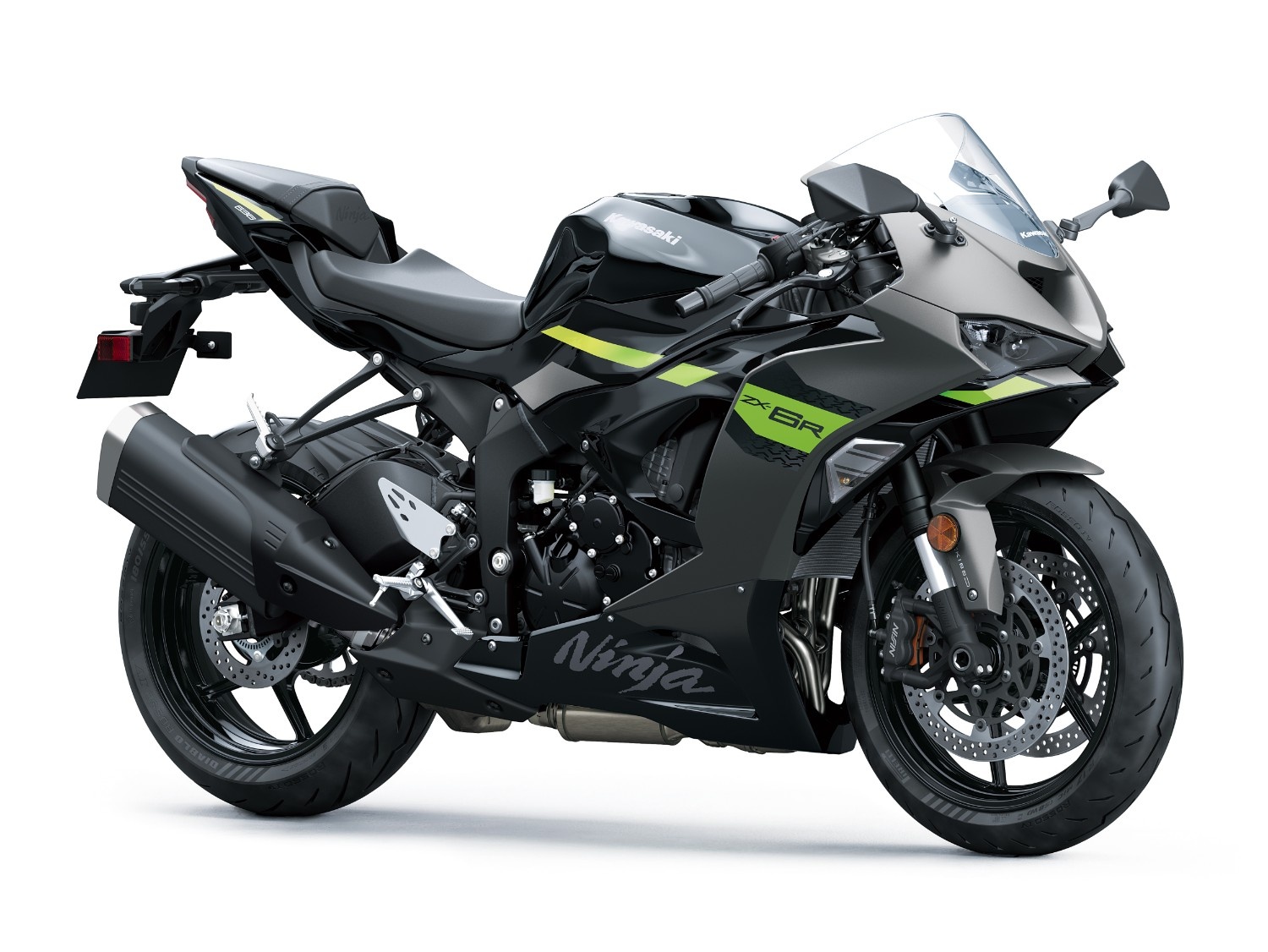

GALLERY

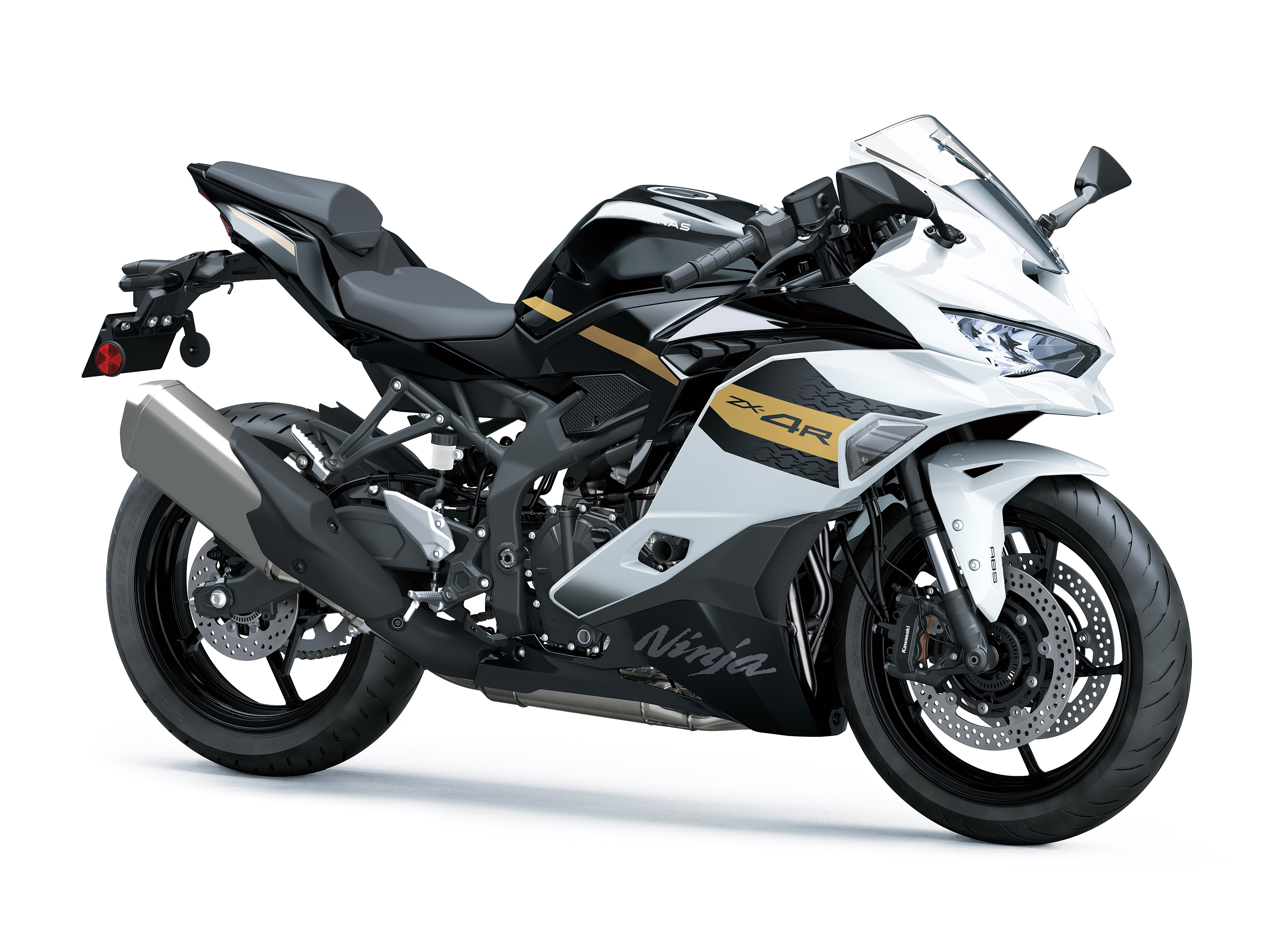

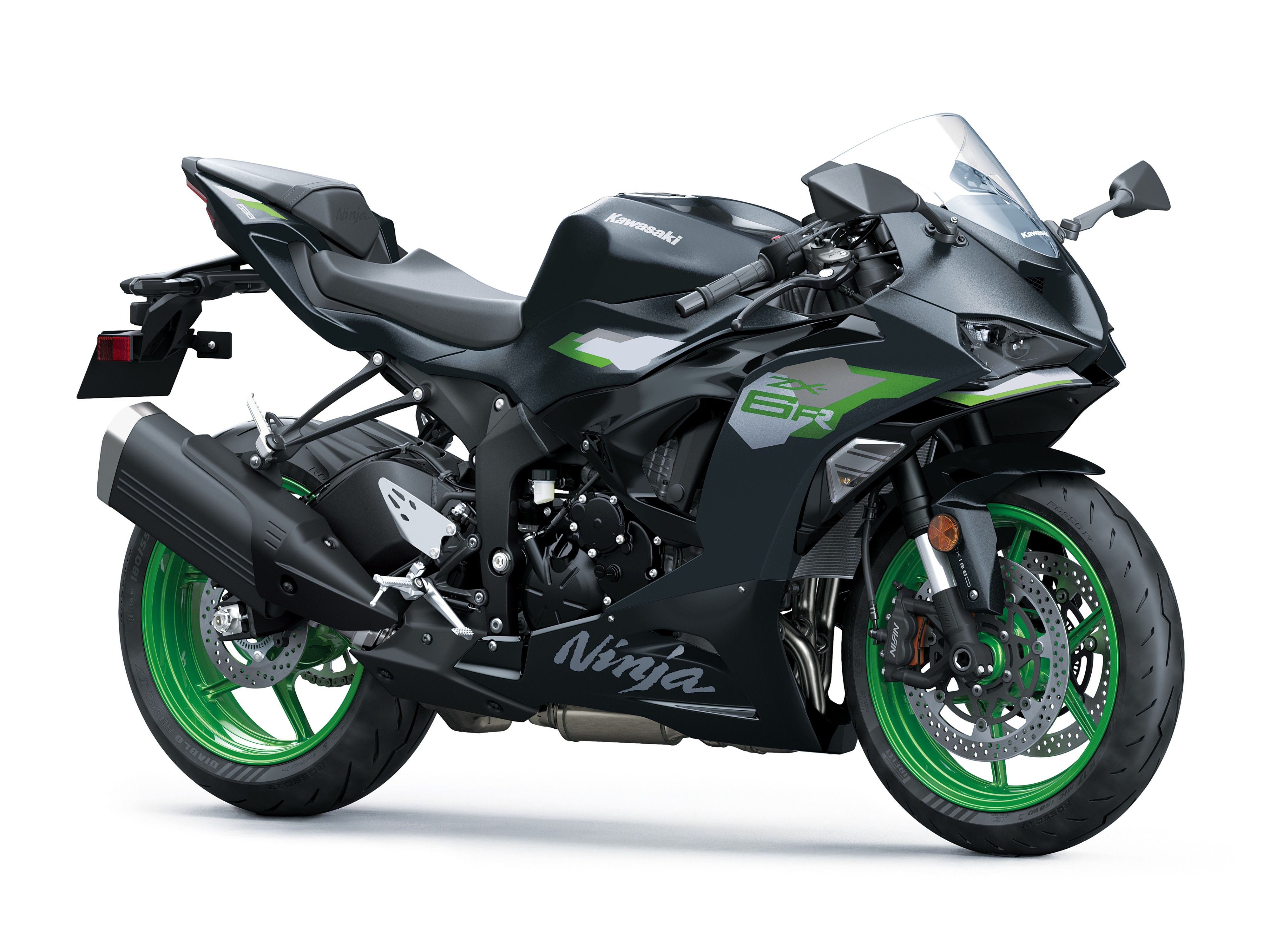

SIMILAR MODELS
