CONCEPT
KLE500
ESSENCE
-
MULTI-FUNCTION LCD DISPLAY
-
ADJUSTABLE RALLY WINDSHIELD
-
LONG-TRAVEL ADVENTURE SUSPENSION
-
LIGHTWEIGHT TRELLIS FRAME
TOP FEATURES

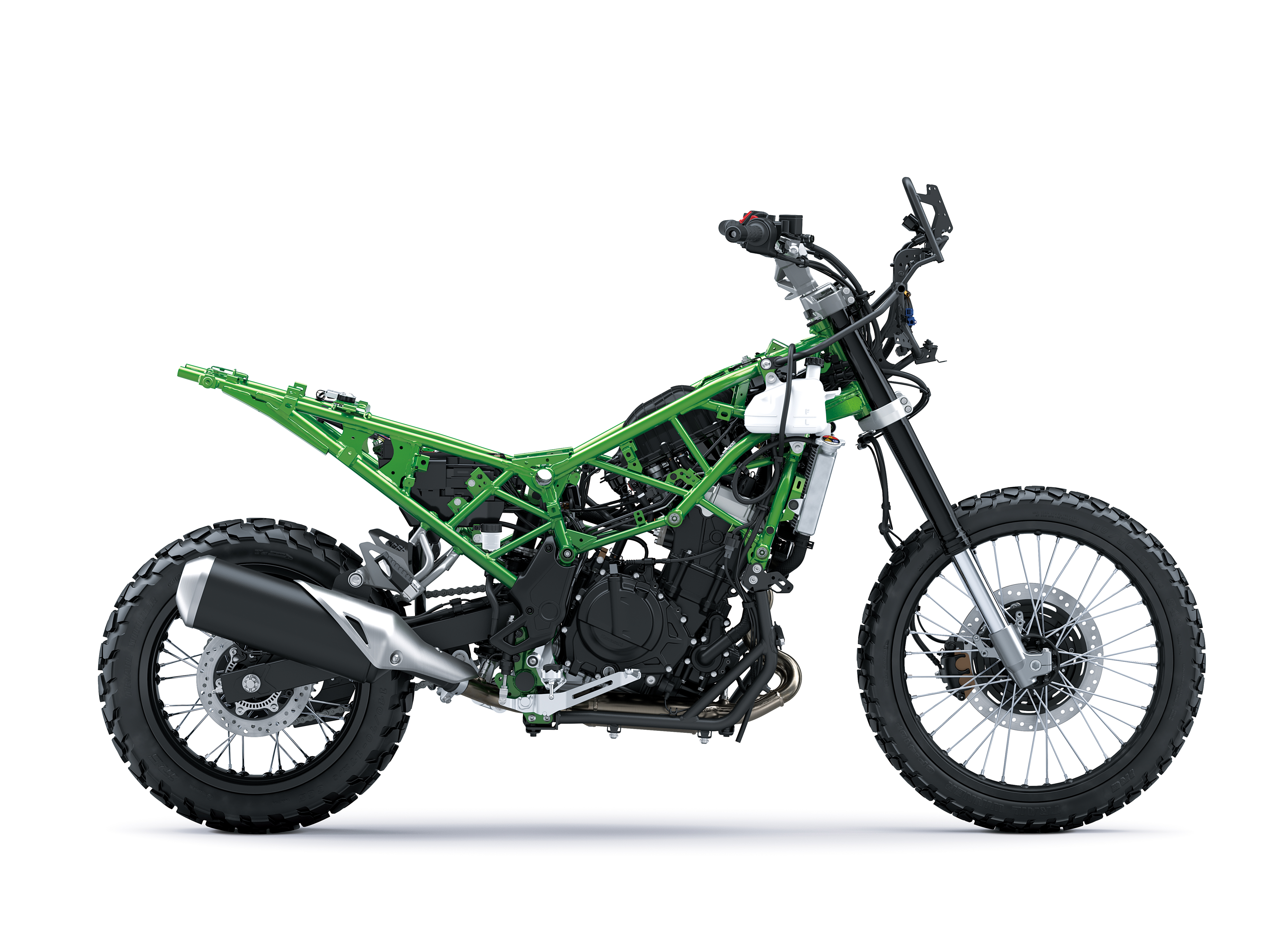

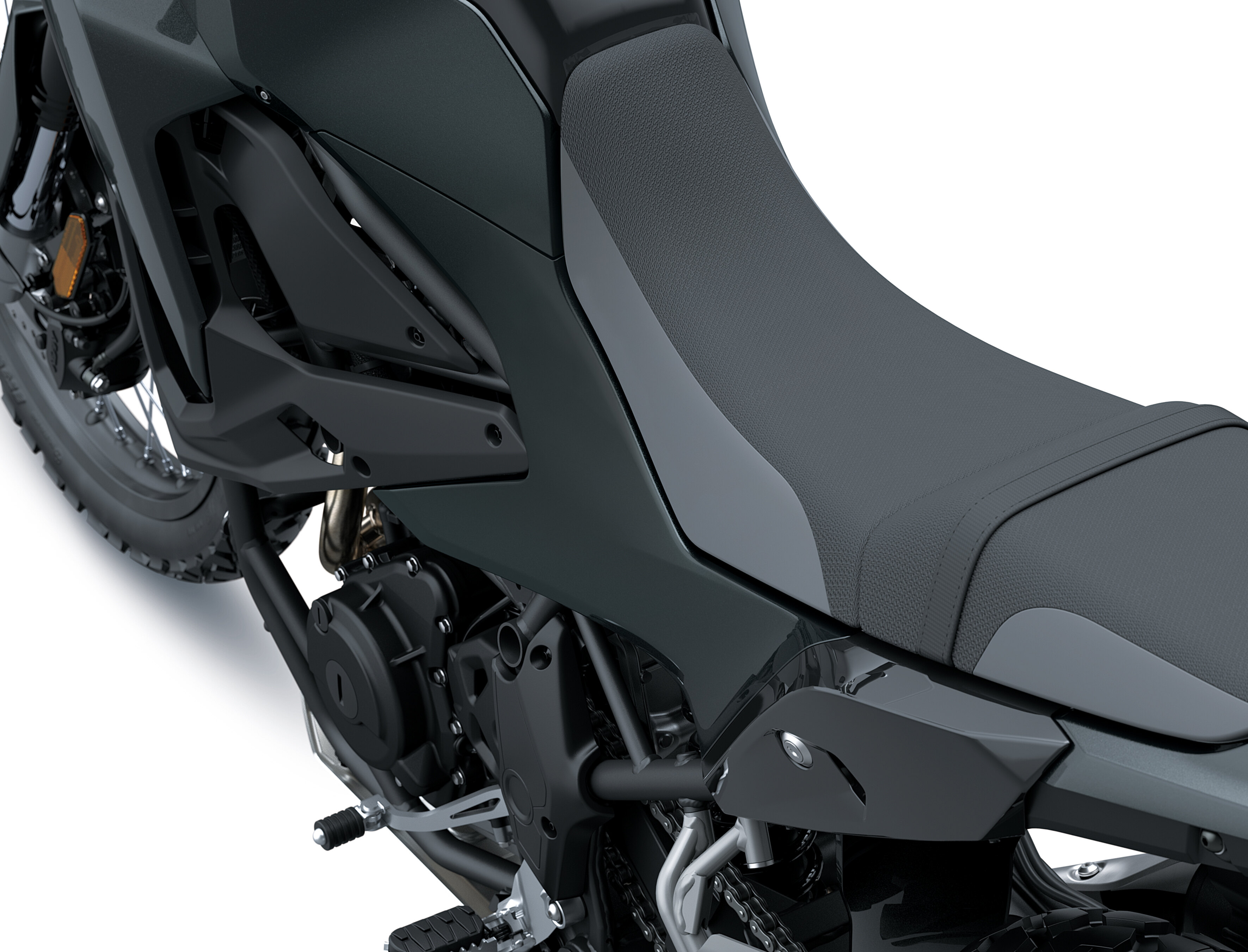

LIGHTWEIGHT TRELLIS FRAME
The high-tensile steel trellis frame combines lightweight construction with optimized rigidity to deliver agile handling and outstanding stability. Designed for both everyday riding and off-road adventures, it inspires confidence on every journey.
FUEL-INJECTED 451 CM³ PARALLEL TWIN ENGINE
The fuel-injected 451 cm³ Parallel Twin engine delivers smooth, responsive power with strong low-end torque and confident acceleration. Whether cruising on the highway or exploring off-road trails, its predictable power delivery provides excellent control across a wide range of riding conditions.

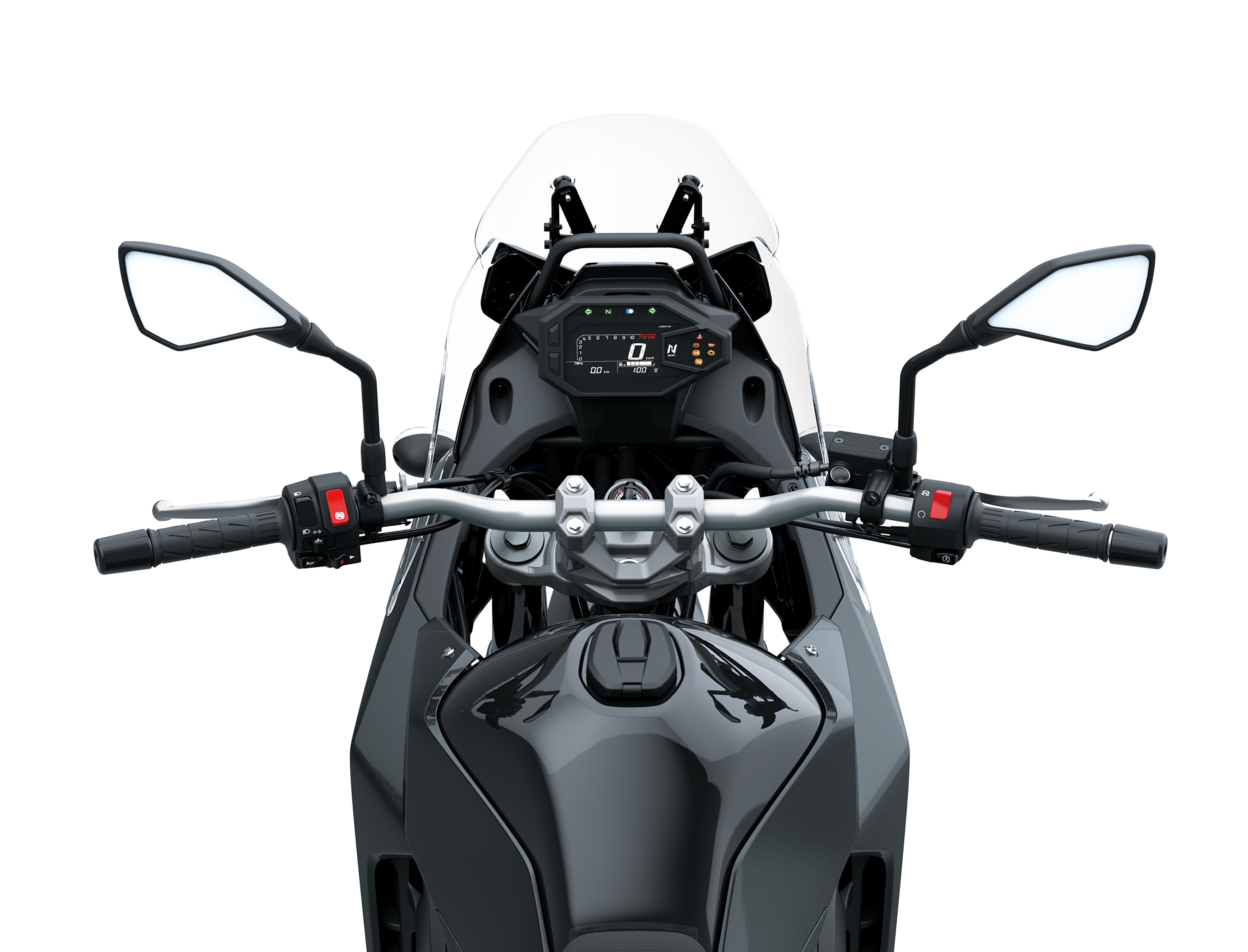

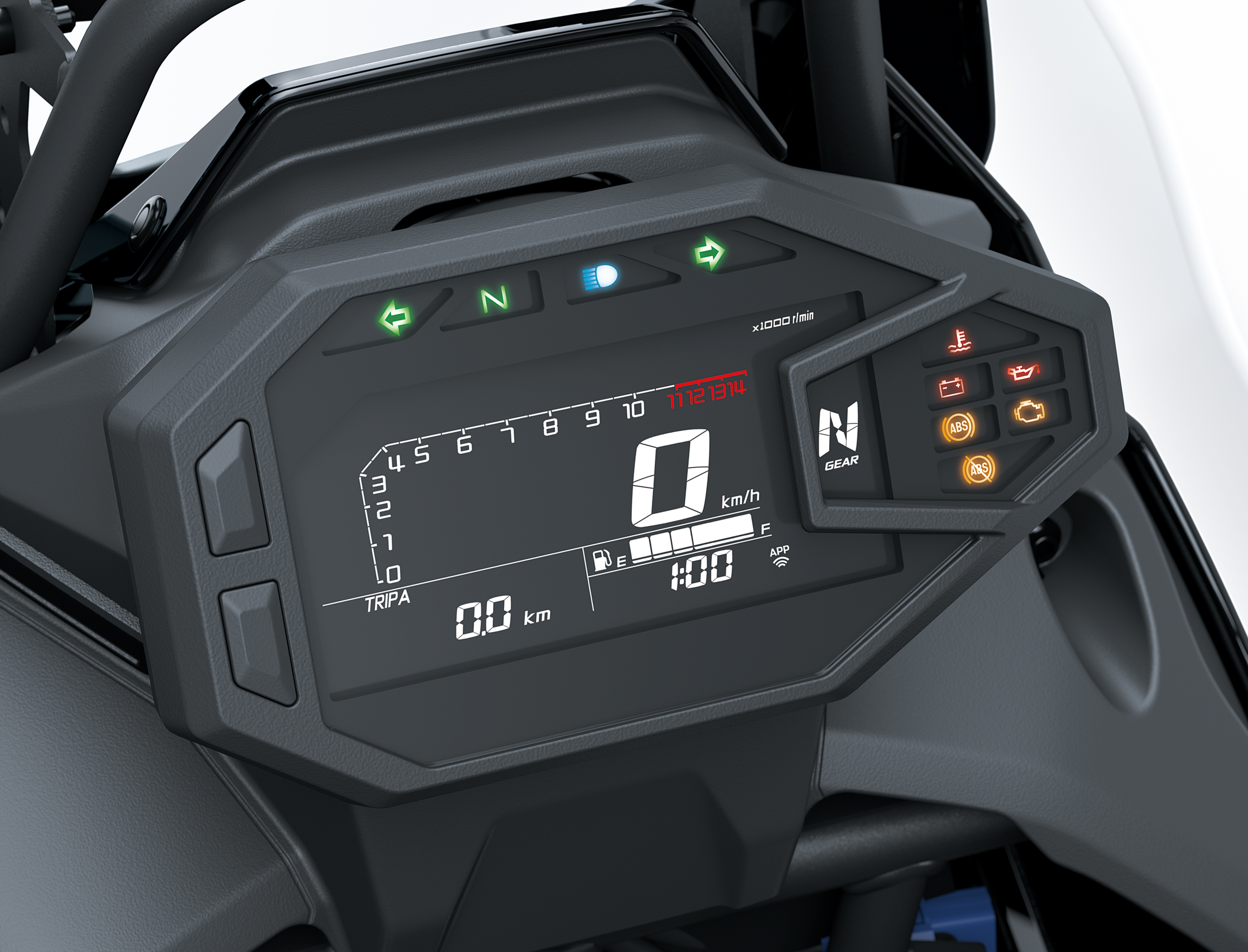

RIDER-FOCUSED COCKPIT
The rider-focused cockpit features an easy-to-read LCD instrument panel, a wide handlebar, and an ergonomic control layout for excellent visibility and confidence. Designed for both seated and standing riding positions, it keeps essential information and controls within easy reach on every adventure.

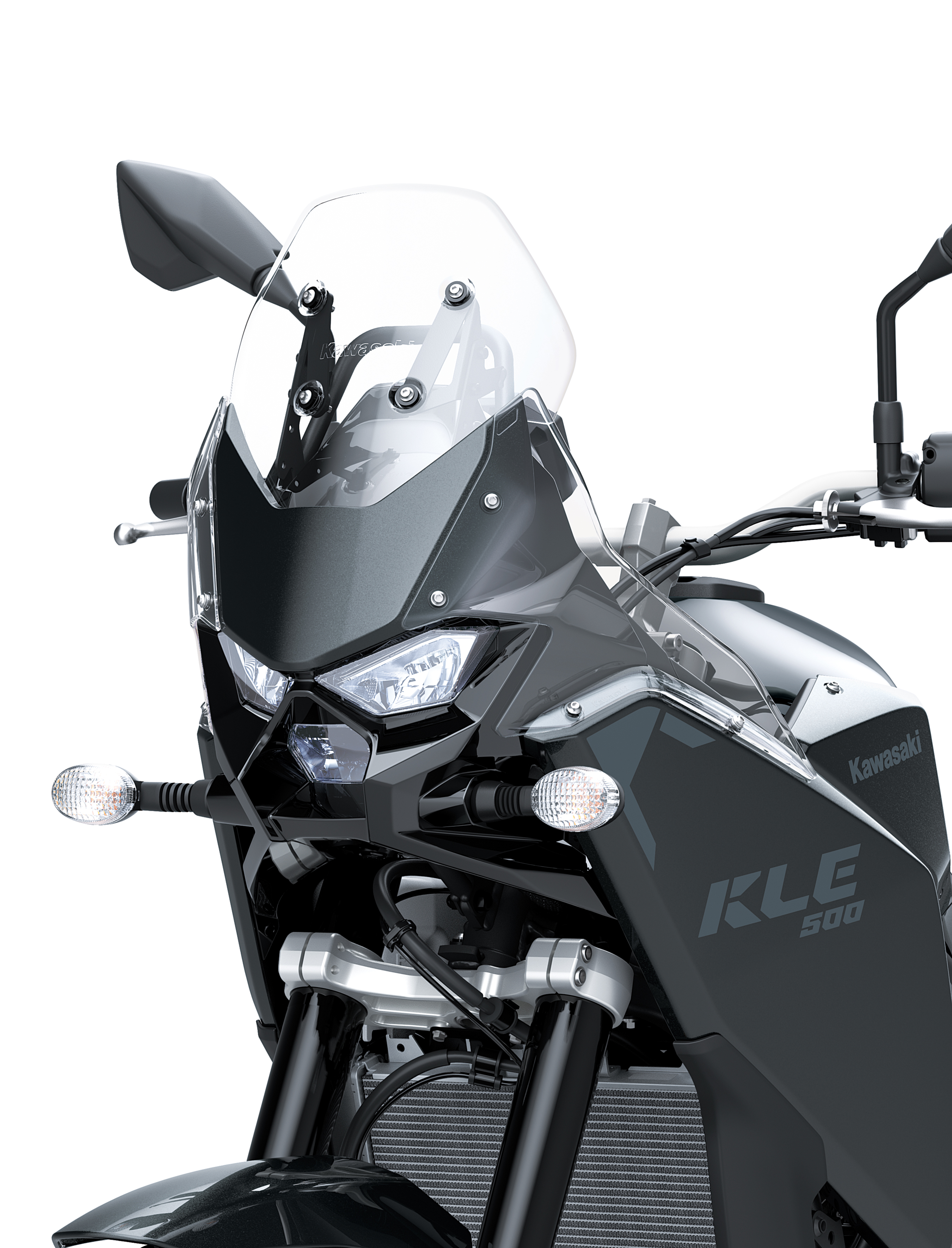

THREE-POSITION ADJUSTABLE WINDSHIELD
The rally-style windshield offers three adjustable height settings to improve rider comfort and wind protection. Whether tackling off-road trails or long highway journeys, it provides excellent visibility while maintaining its distinctive adventure styling.SPECIFICATIONS
OFF-ROAD
CONTROL
PARALLEL TWIN
POWER
TECHNOLOGY
Engine Management Technology
Chassis Management Technology
POWER
-
Engine Type
Liquid-cooled, 4-stroke Parallel Twin
-
Valve System
DOHC, 8 valves
-
Bore X Stroke
70.0 x 58.6 mm
-
Displacement
451 cc
-
Compression Ratio
11.3:1
-
Fuel Supply
Fuel injection: 32 mm x 2
-
Lubrication System
Forced lubrication, wet sump
-
Starting System
Electric
-
Ignition System
Digital
-
Max. Power
33.4 kW / 9,000 rpm
-
Max. Torque
42.6 N·m / 6,000 rpm
-
Front Brakes
300 mm disc (Effective diameter: 272 mm)
-
Rear Brakes
Dual-piston 230 mm disc (Effective diameter: 203 mm) Dual-piston
PERFORMANCE
-
Frame Type
Trellis, high-tensile steel
-
Front Suspension
43 mm inverted fork
-
Rear Suspension
New Uni Trak
-
Front Wheel Travel
210 mm
-
Rear Wheel Travel
196 mm
-
Caster (Rake Angle)
28.0º
-
Trail
104 mm
-
Steering Angle (left/right)
40º / 40º
-
Driving system
Chain
-
Transmission
6-speed, return
-
Primary reduction ratio
2.029 (69/34)
-
Final reduction ratio
3.067 (46/15)
-
Clutch type (Primary)
Wet multi-disc, manual
DETAILS
-
Overall length
2,300 mm
-
Overall width
940 mm
-
Overall height (High/Low position)
1,405 mm / 1,355 mm
-
Wheelbase
1,555 mm
-
Road clearance
185 mm
-
Seat height
870 mm
-
Curb mass
194 kg
-
Estimated Dry mass
175 kg
-
Fuel tank capacity
16 litres
** The curb weight includes all materials and fluids required to operate properly, a full tank of fuel (over 90 percent capacity), and tool kit (if provided).
KAWASAKI CARE: Read the Manual and all warnings on the product. Always wear a helmet, eye protection, and appropriate clothing for riding conditions. Never drive under the influence of drugs or alcohol. Follow the maintenance schedule in your Manual. © 2022 Edaran Modenas Sdn Bhd. All Rights Reserved.
Specifications are subject to change.
