CONCEPT

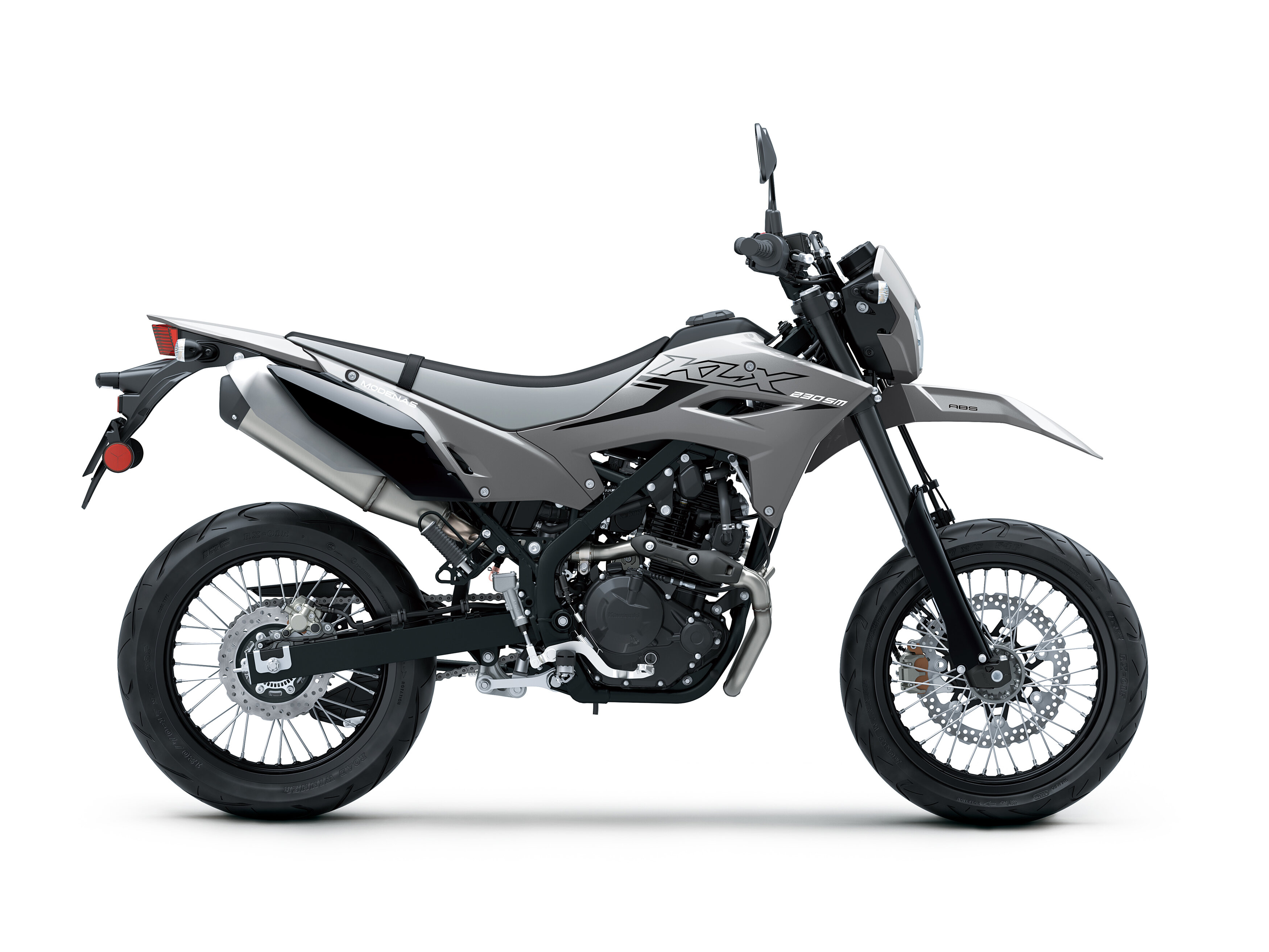

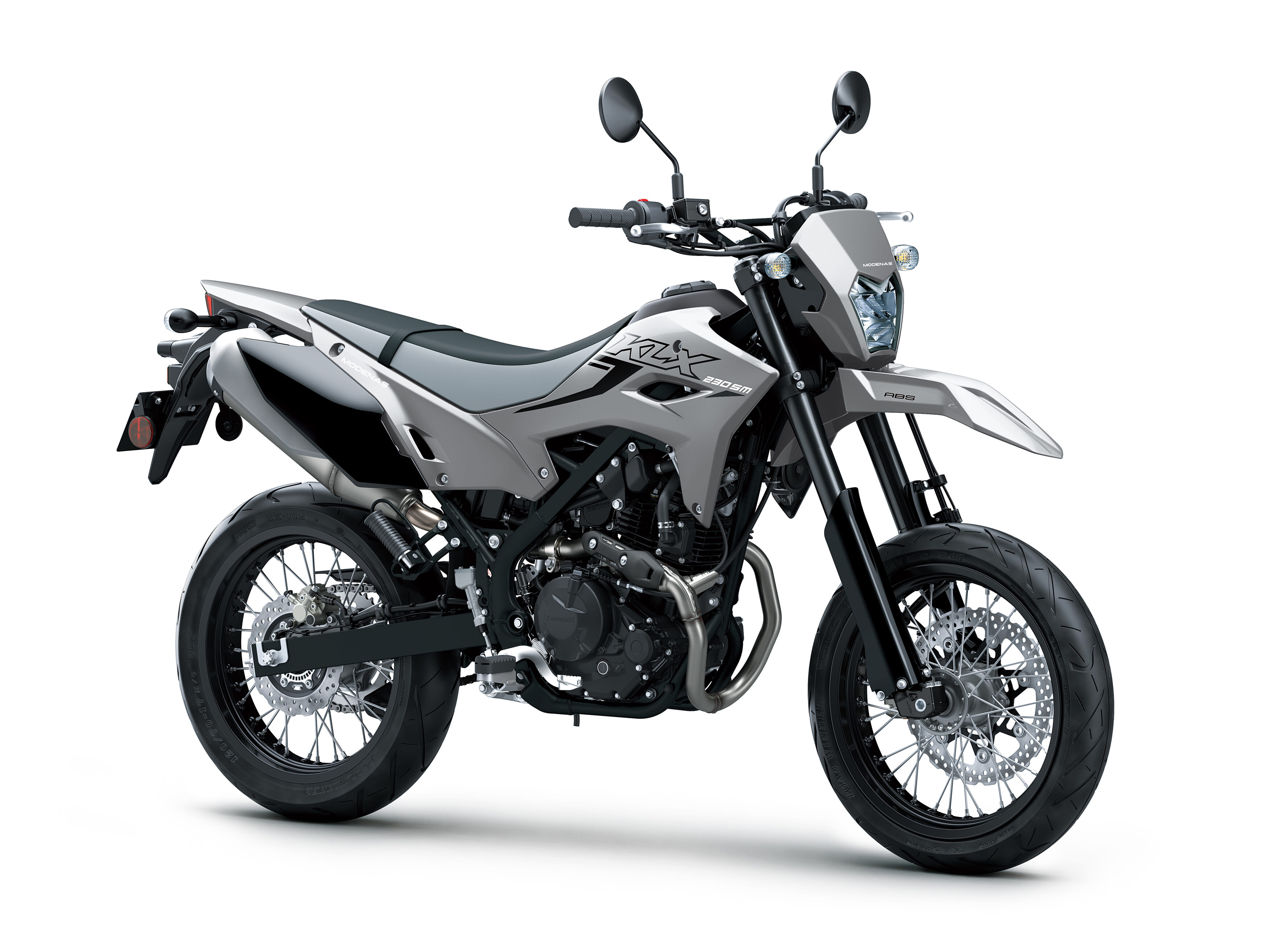

KLX 230SM
ESSENCE
-
FUEL-INJECTED 233 CM³ AIR-COOLED 4-STROKE SINGLE
-

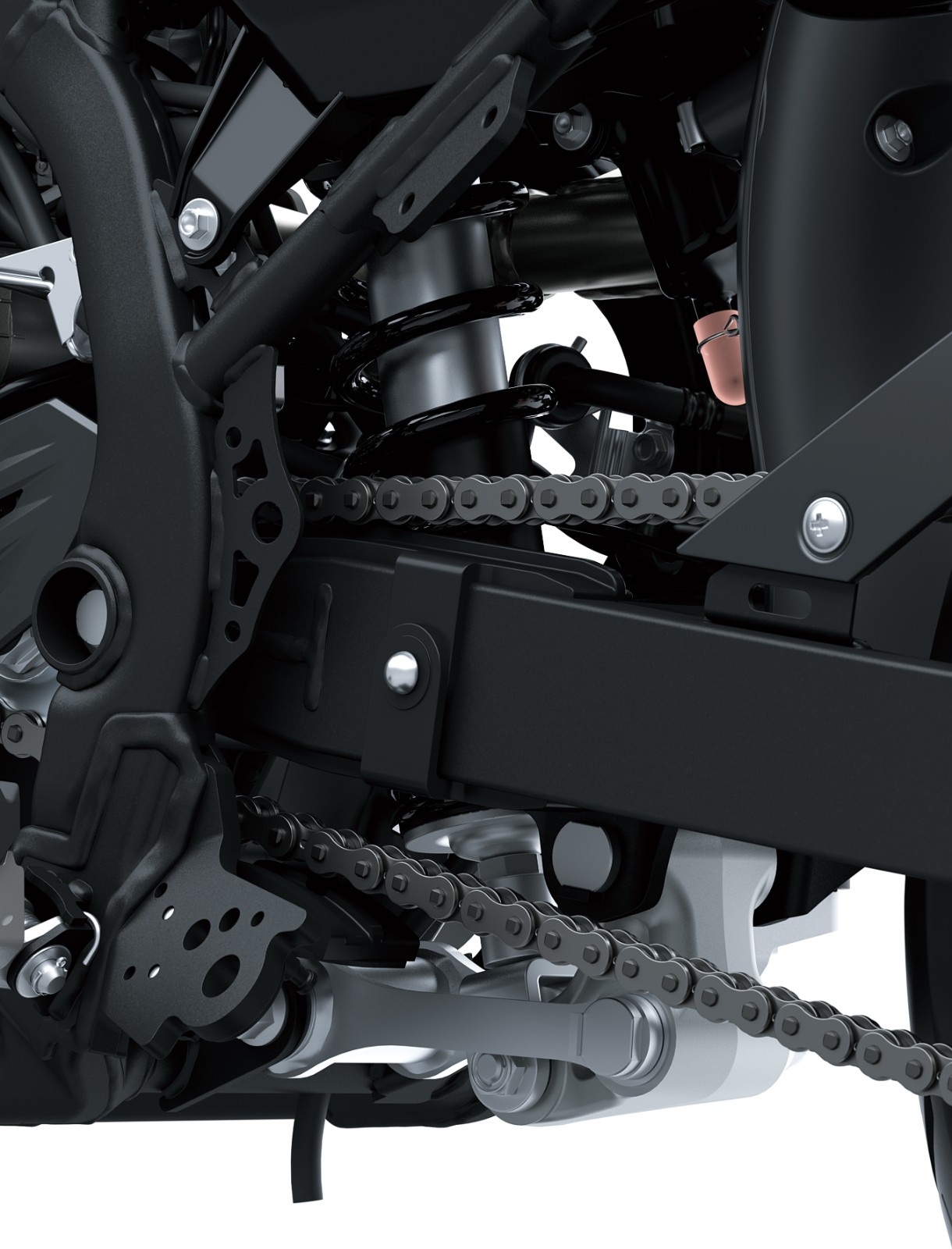

UNI TRAK REAR SUSPENSION
-

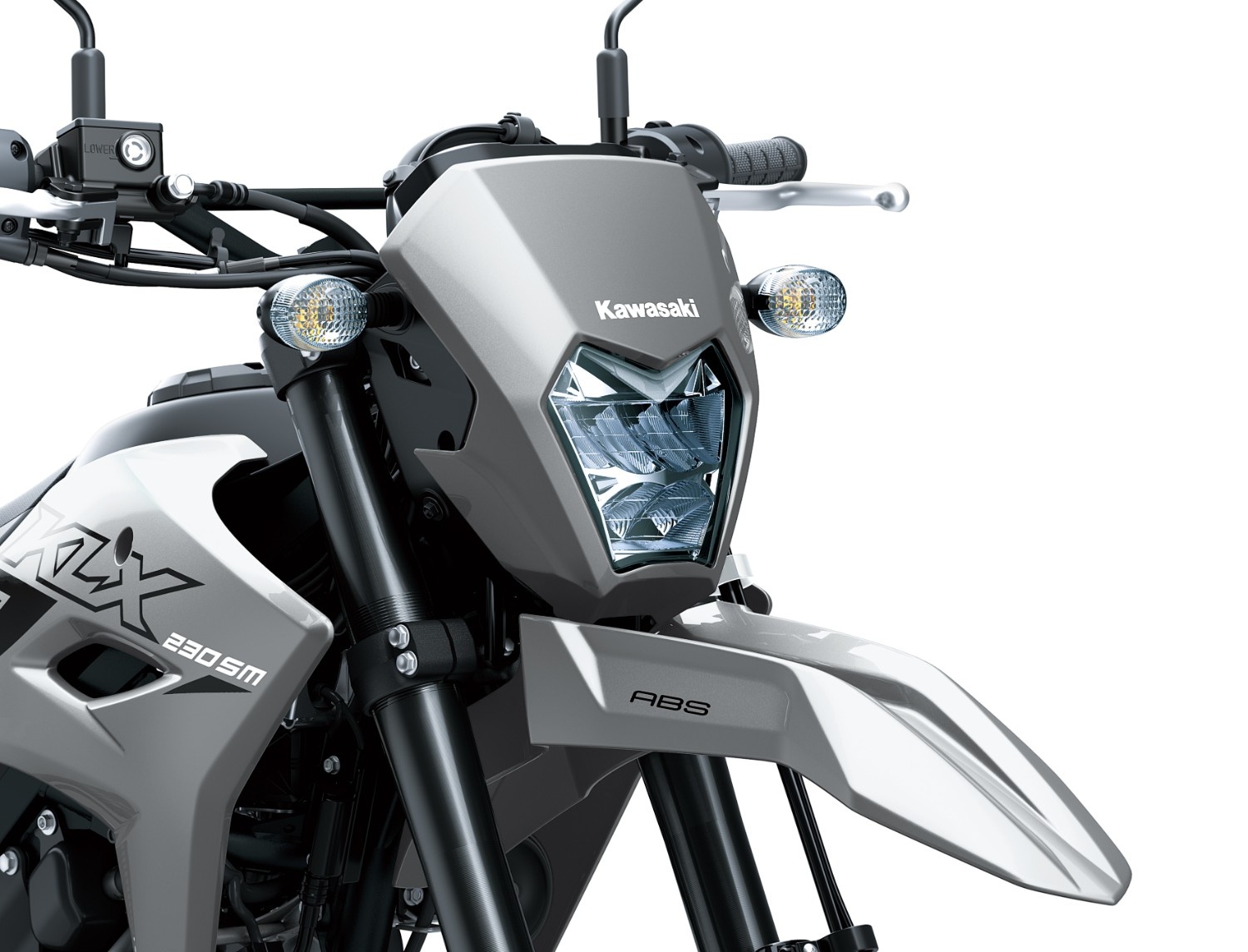

SHARP FRONT OWL DESIGN
-
17” WHEELS & TYRES
TOP FEATURES

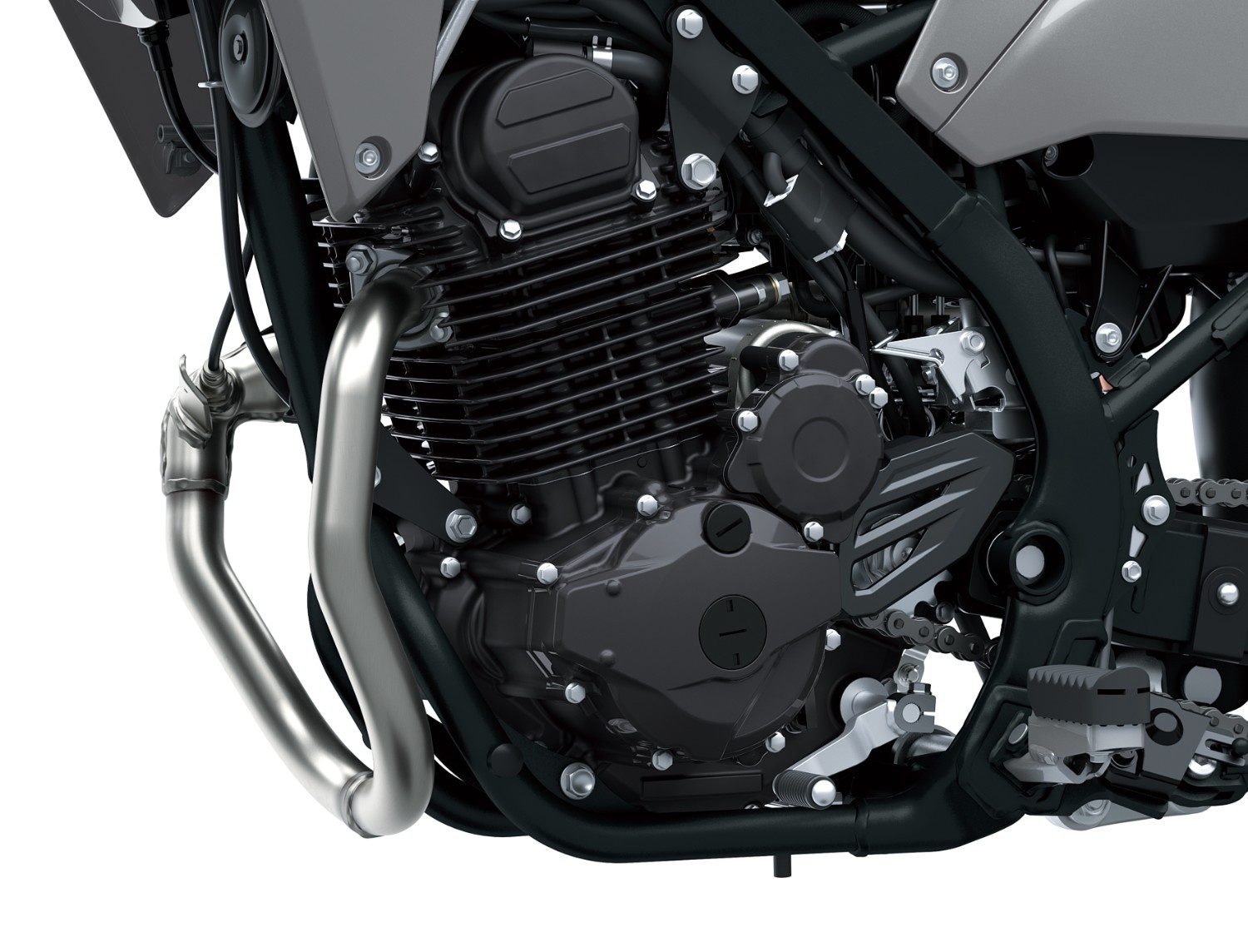

FUEL-INJECTED 233 CM³ AIR-COOLED 4-STROKE SINGLE ENGINE
The KLX230SM’s compact engine delivers strong low- to mid-range power with smooth torque for rider-friendly performance and linear acceleration. Its lightweight, air-cooled design enhances manoeuvrability and agile handling, making it ideal for urban riding.

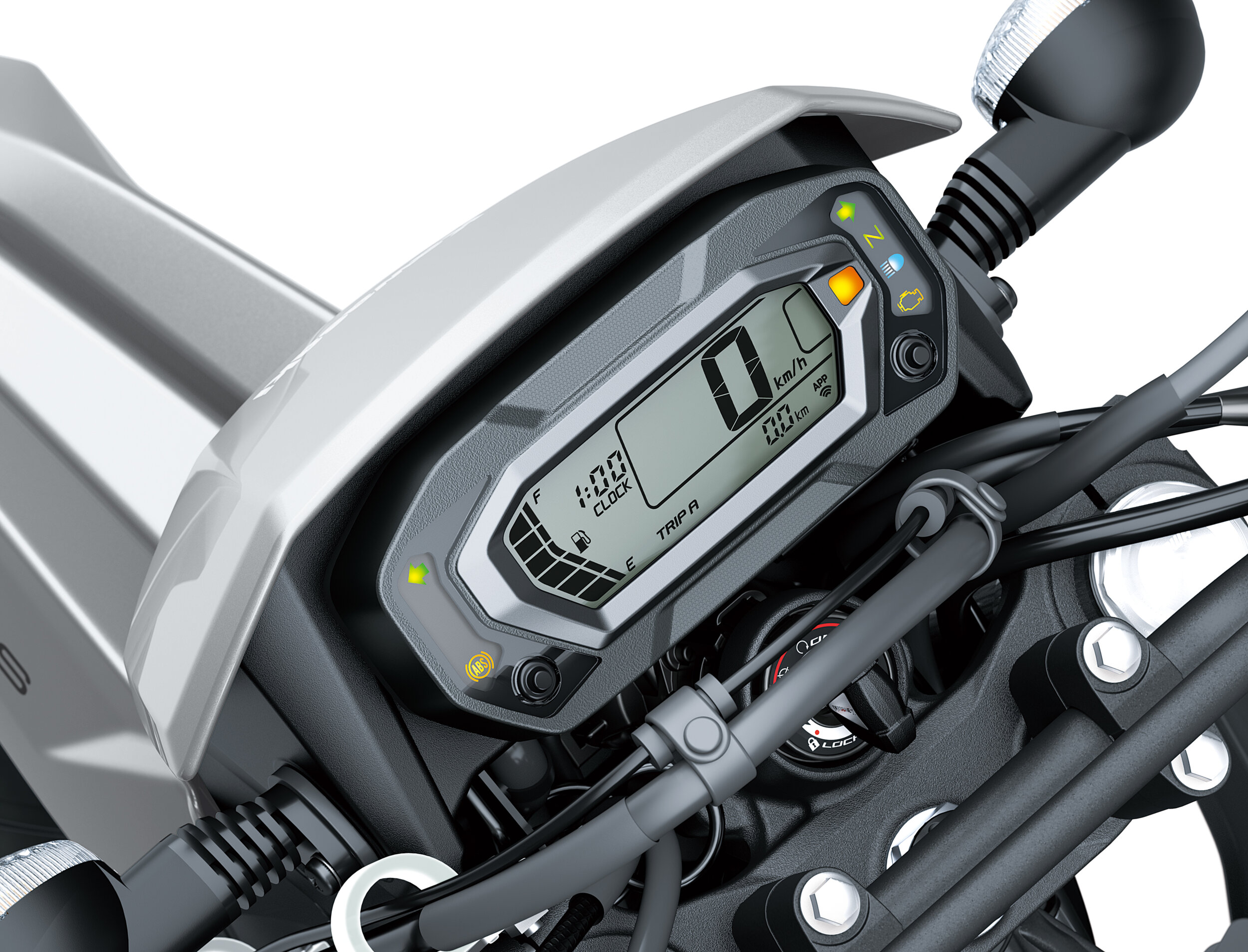

INSTRUMENTATION
The all-digital instrument panel features a large, easy-to-read LCD screen with at-a-glance information. Functions include speedometer, odometer, dual trip meters, fuel gauge, clock, smartphone call/mail notices, Bluetooth indicator, and indicator lamps.

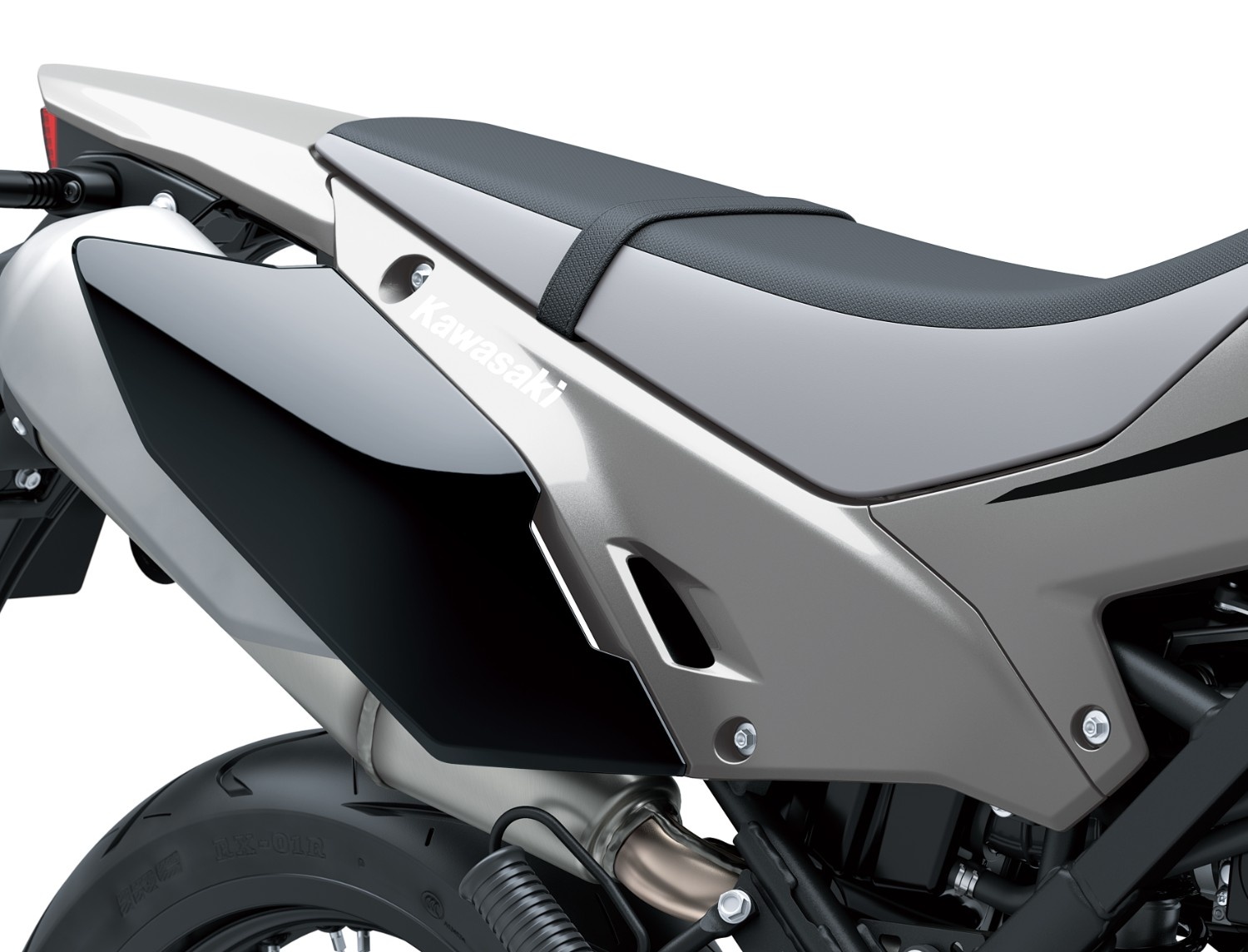

TWO-TONE FLAT SEAT DESIGN
A flat seat with two-tone colouring cleverly aligns its coloured portion with the bodywork to create a flowing, streamlined appearance for a clean, race-inspired look.SPECIFICATIONS
KAWASAKI TECHNOLOGY
ERGO-FIT
TECHNOLOGY
Engine Management Technology
Chassis Management Technology
POWER
-
Engine Type
Air-cooled, 4-stroke Single SOHC, 2 valves
-
Displacement
233 cc
-
Bore X Stroke
67.0 x 66.0 mm
-
Compression Ratio
9.4:1
-
Fuel Supply
Fuel injection : 32 mm x 1
-
Ignition System
Digital
-
Starting System
Electric
-
Lubrication System
Forced lubrication, wet sump
-
Transmission
6-speed, Return Shift
-
Primary Reduction Ratio
2.871 (89/31)
-
Final Reduction Ratio
3.071 (43/14)
-
Clutch Type (primary)
Wet Multi-Disc, Manual
-
Max. Power
13.2 kW / 8,000 rpm
-
Max. Torque
18.0 Nm / 6,400 rpm
PERFORMANCE
-
Frame Type
Perimeter, High-tensile steel
-
Front Suspension / Wheel Travel
37 mm inverted fork / 188 mm
-
Rear Suspension / Wheel Travel
New Uni Trak with adjustable preload / 223 mm
-
Front Brakes
Single 300 mm semi-floating petal disc (Effective diameter: 275 mm)
-

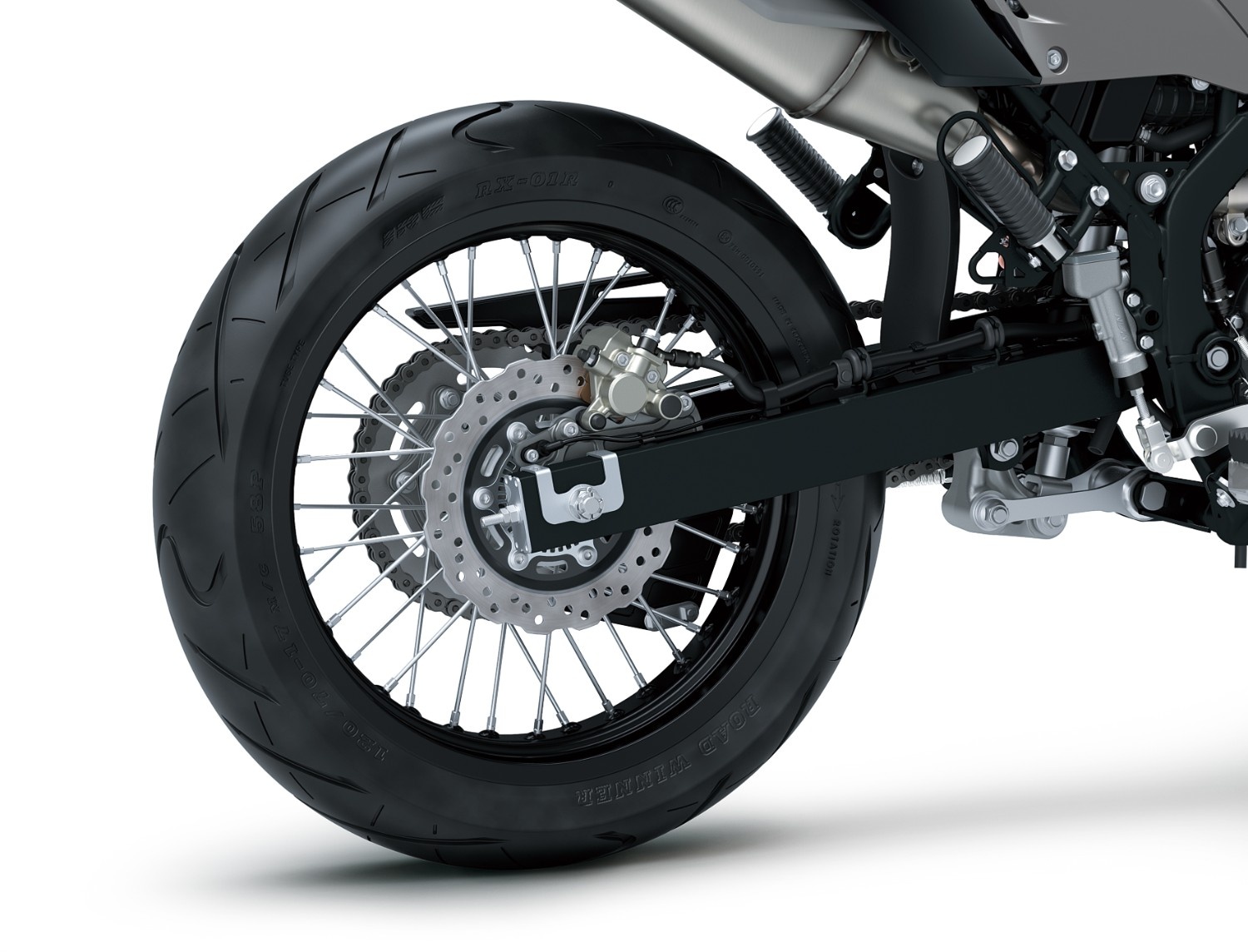

Rear Brakes
Single 220 mm petal disc (Effective diameter: 186 mm)
-
Front Tyre
110/70-17M/C 54P
-
Rear Tyre
120/70-17M/C 58P
-
Caster (Rake Angle)
24.9º
-
Trail
77 mm
-
Steering Angle (L/R)
45º / 45º
DETAILS
-
Overall Length
2,035 mm
-
Overall Width
845 mm
-
Overall Height
1,125 mm
-
Wheelbase
1,365 mm
-
Road Clearance
220 mm
-
Seat Height
840 mm
-
Curb Mass
136 kg
-
Fuel Capacity
7.6 litres
** The curb weight includes all materials and fluids required to operate properly, a full tank of fuel (over 90 percent capacity), and tool kit (if provided).
KAWASAKI CARE: Read the Manual and all warnings on the product. Always wear a helmet, eye protection, and appropriate clothing for riding conditions. Never drive under the influence of drugs or alcohol. Follow the maintenance schedule in your Manual. © 2022 Edaran Modenas Sdn Bhd. All Rights Reserved.
Specifications are subject to change.
