CONCEPT

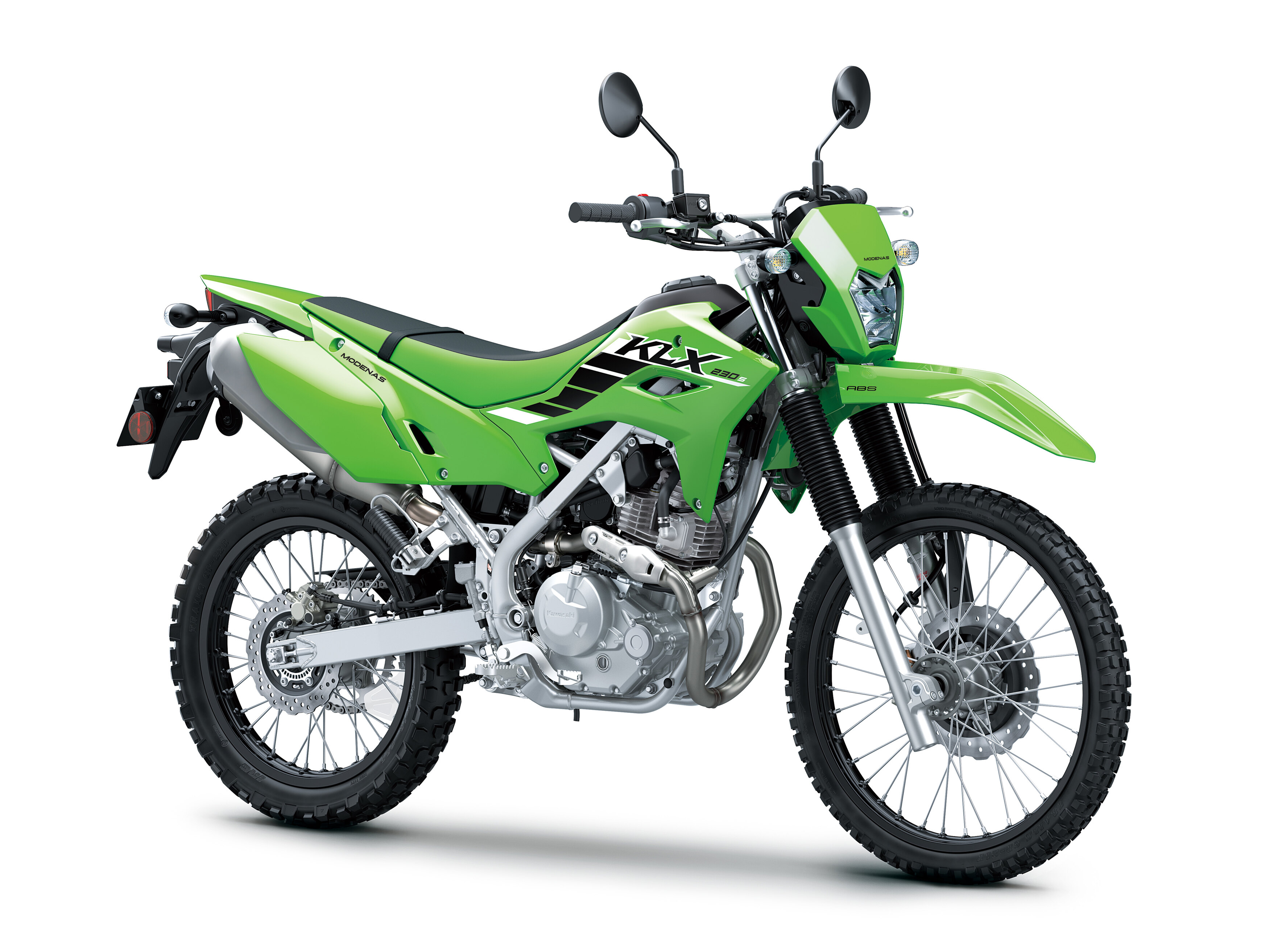

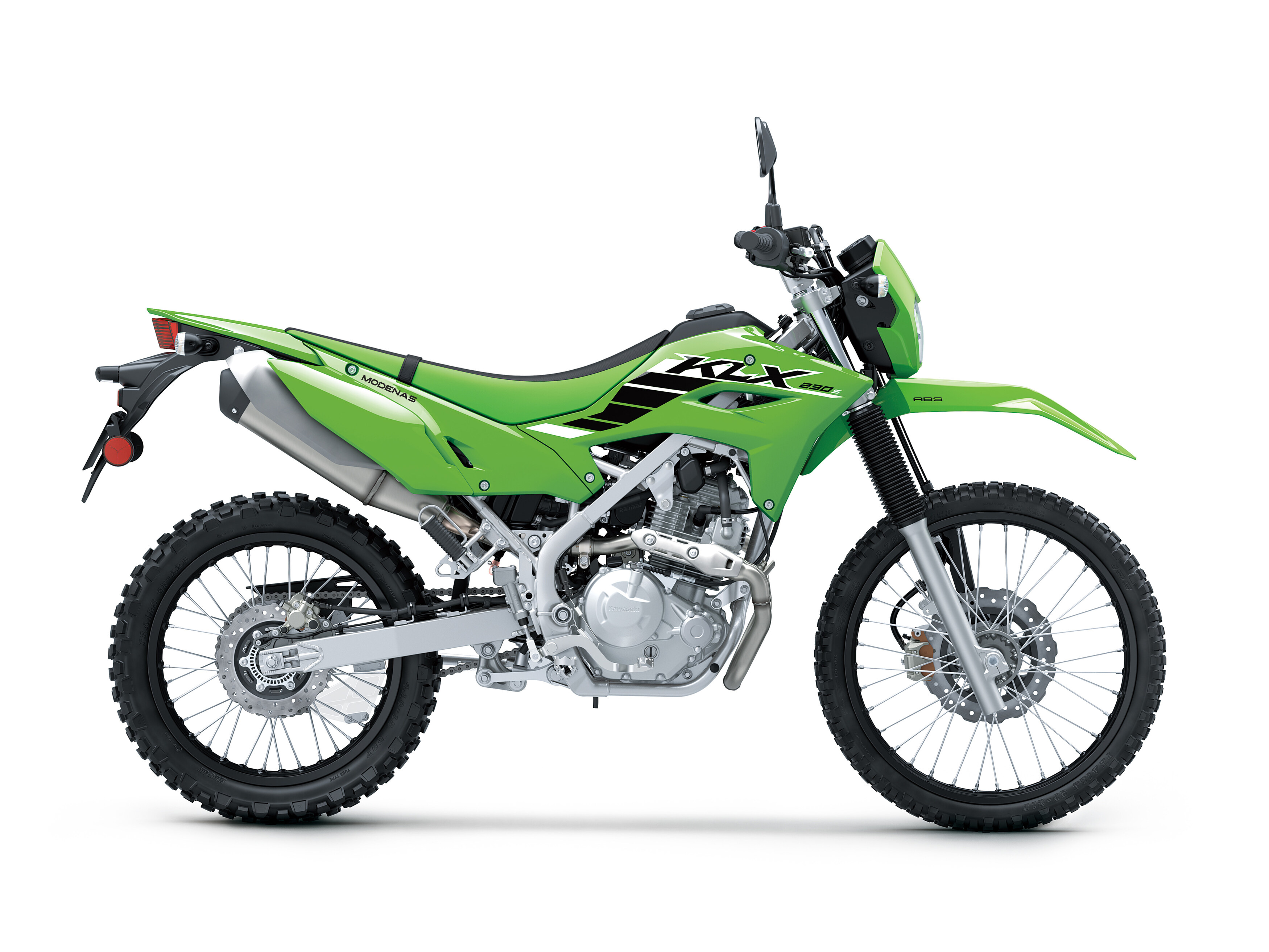

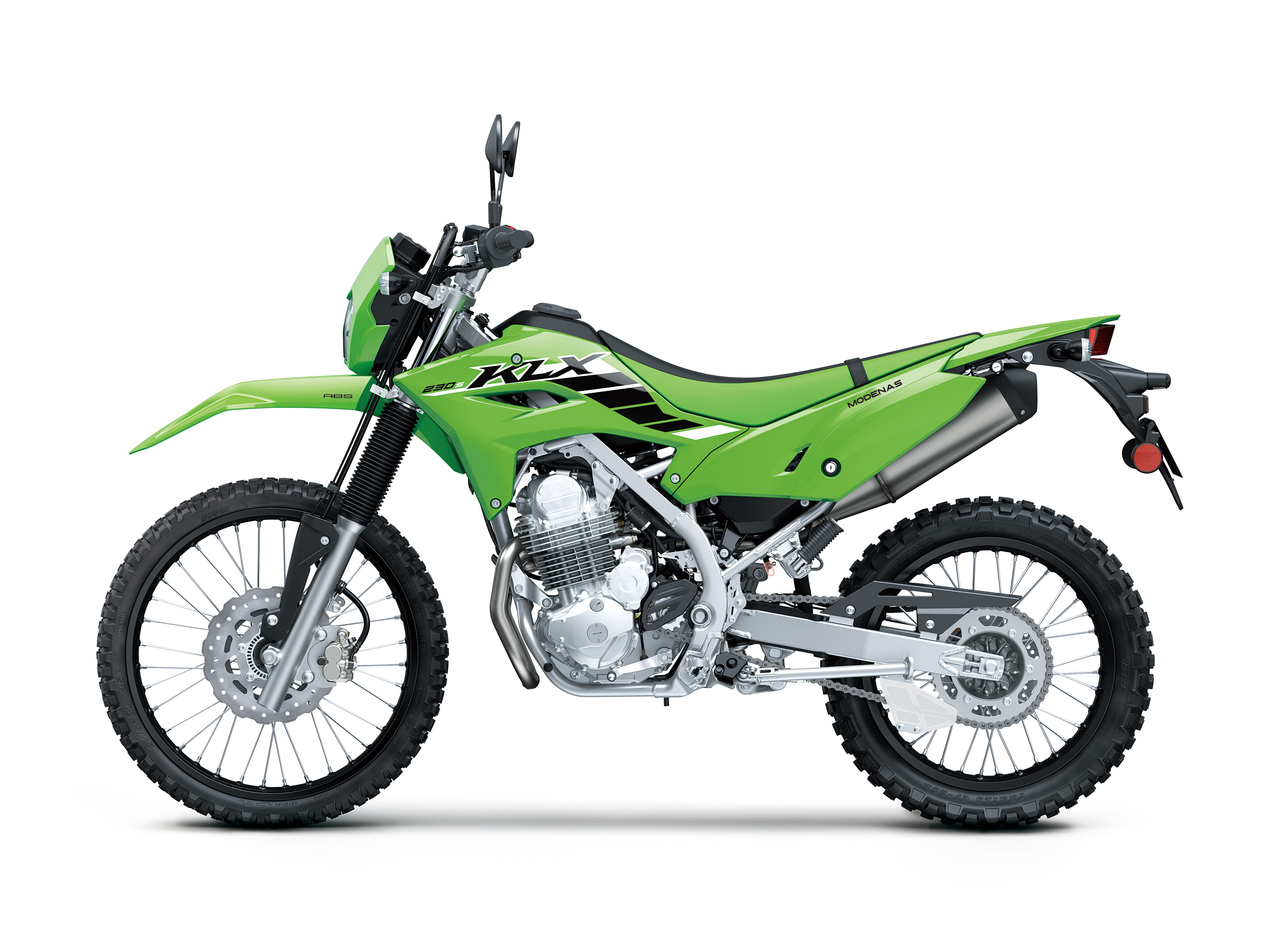

KLX 230
ESSENCE
-
FUEL-INJECTED 233 CM³ AIR-COOLED 4-STROKE SINGLE ENGINE
-
ELECTRIC START
-
FRONT & REAR DISC BRAKES
-
LOW-SEAT MODELS
TOP FEATURES

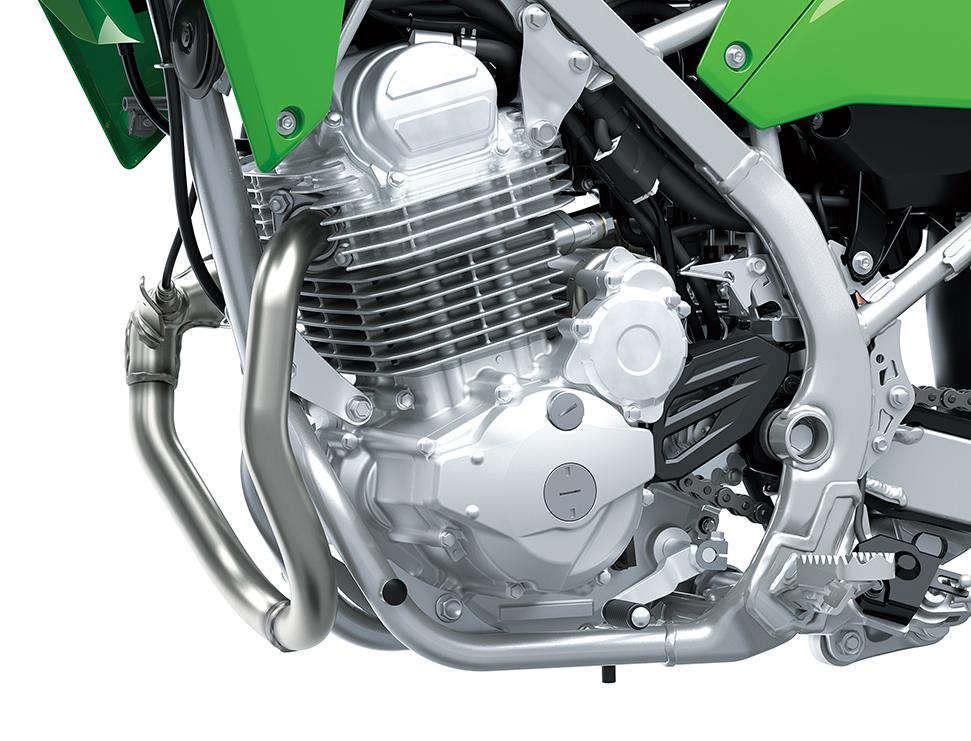

FUEL-INJECTED 233 CM³ AIR-COOLED 4-STROKE SINGLE
The KLX230’s compact engine delivers strong low- to mid-range power with smooth torque for rider-friendly performance. Its lightweight design and simple air-cooling make it ideal for trail riding.

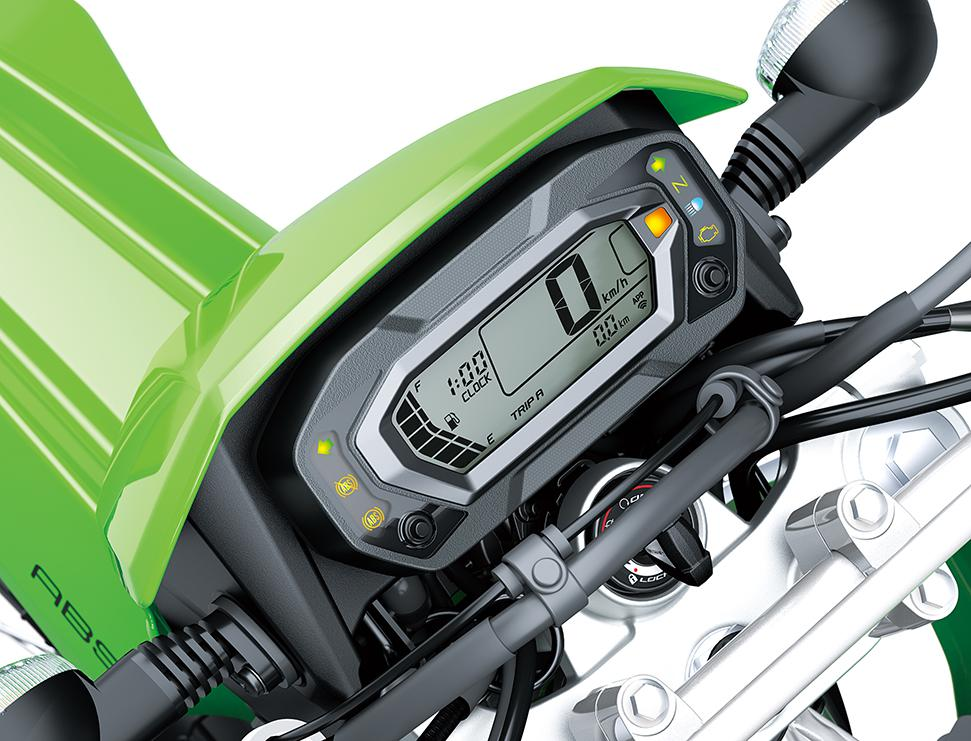

INSTRUMENTATION
An all-digital panel with a large, easy-to-read LCD screen provides at-a-glance information. Features include speedometer, odometer, dual trip meters, fuel gauge, clock, smartphone call/mail notices, Bluetooth indicator, and multiple indicator lamps.

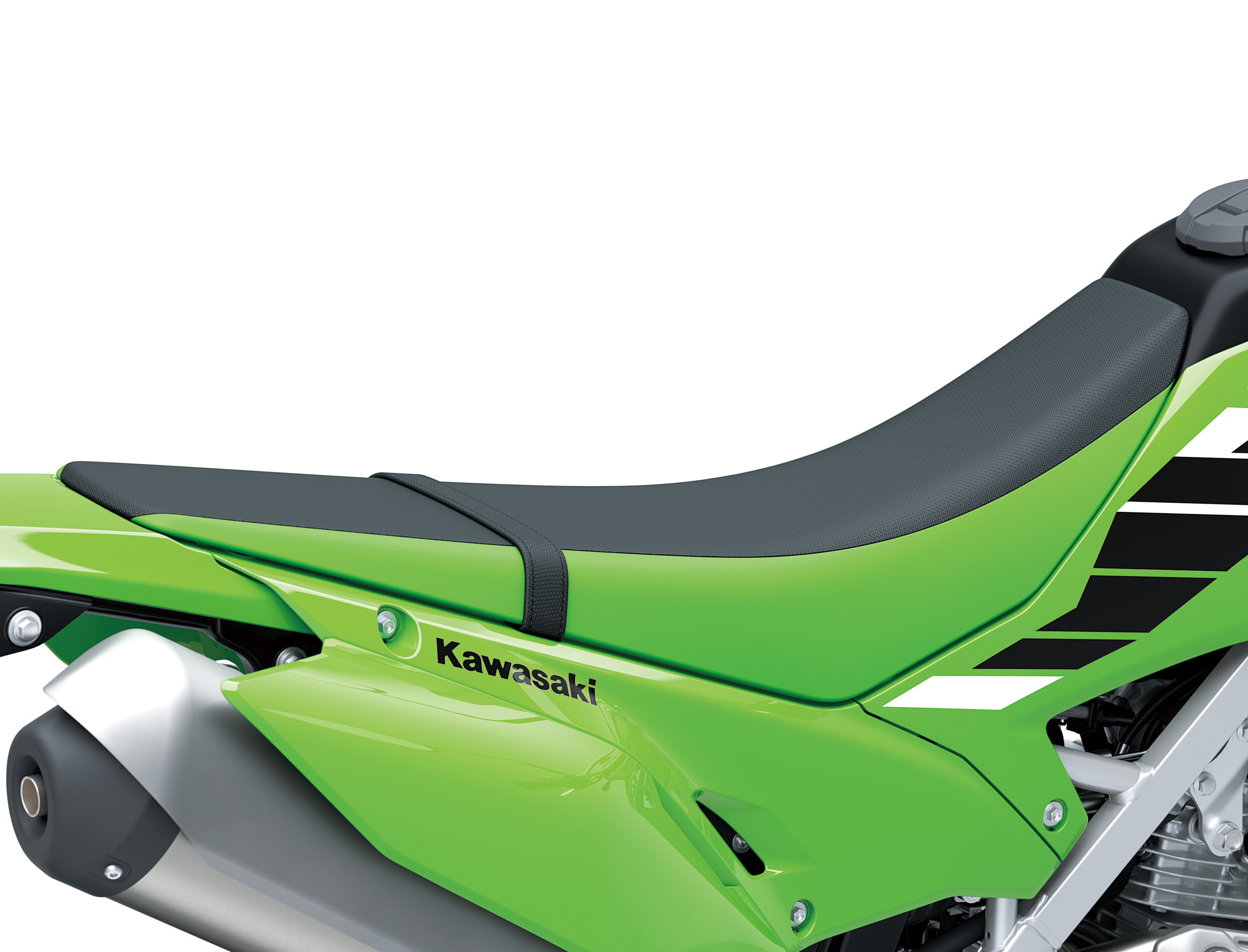

LOW-SEAT MODELS
The reduced seat height of the KLX230 S enables more riders to take on off-road trails with confidence. The 2024 model features significantly increased wheel travel for improved off-road performance.SPECIFICATIONS
KAWASAKI TECHNOLOGY
ERGO-FIT
TECHNOLOGY
Engine Management Technology
Chassis Management Technology
POWER
-
Engine Type
Air-cooled, 4-stroke Single, SOHC, 2 valves
-
Displacement
233 cc
-
Bore X Stroke
67.0 x 66.0 mm
-
Compression Ratio
9.4:1
-
Fuel Supply
Fuel Injection (ø32 mm x 1)
-
Ignition System
Digital
-
Starting System
Electric
-
Lubrication System
Forced lubrication, wet sump
-
Transmission
6-speed, Return Shift
-
Primary Reduction Ratio
2.871 (89/31)
-
Final Reduction Ratio
3.214 (45/14)
-
Clutch Type (primary)
Wet Multi-Disc, Manual
-
Max Power
13.2 kW / 8,000 rpm
-
Max Torque
18.0 Nm / 6,400 rpm
PERFORMANCE
-
Frame Type
Perimeter, High-tensile steel
-
Front Suspension / Wheel Travel
37 mm telescopic fork / 200 mm
-

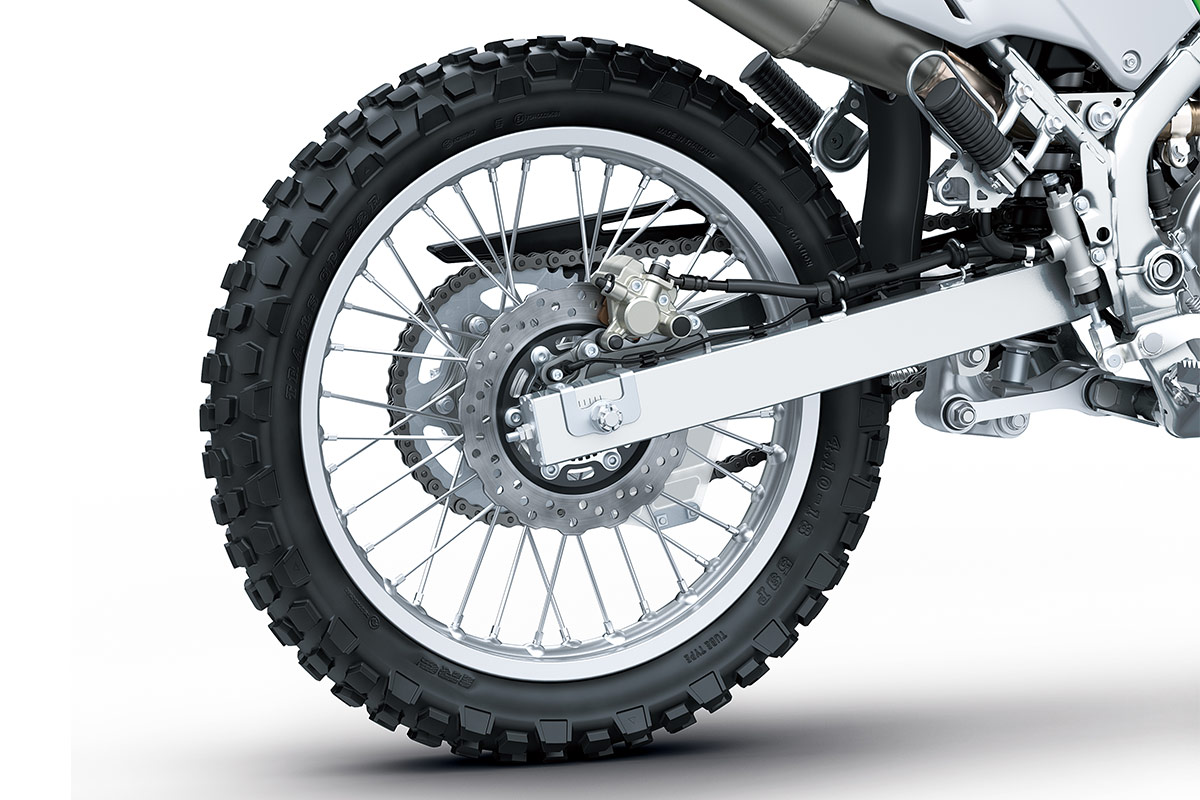

Rear Suspension / Wheel Travel
New Uni Trak with adjustable preload / 223 mm
-
Front Brakes
Single 265 mm petal disc (Effective diameter: 241 mm)
-
Rear Brakes
Single 220 mm petal disc (Effective diameter: 186 mm)
-
Front Tyre
2.75-21 45P
-
Rear Tyre
4.10-18 59P
-
Caster (Rake Angle)
24.6˚
-
Trail
96 mm
-
Steering Angle (L/R)
45˚ / 45˚
DETAILS
-
Overall Length
2,080 mm
-
Overall Width
845 mm
-
Overall Height
1,140 mm
-
Wheelbase
1,365 mm
-
Road Clearance
240 mm
-
Seat Height
845 mm
-
Curb Mass
133 kg
-
Fuel Capacity
7.6 litres
** The curb weight includes all materials and fluids required to operate properly, a full tank of fuel (over 90 percent capacity), and tool kit (if provided).
KAWASAKI CARE: Read the Manual and all warnings on the product. Always wear a helmet, eye protection, and appropriate clothing for riding conditions. Never drive under the influence of drugs or alcohol. Follow the maintenance schedule in your Manual. © 2022 Edaran Modenas Sdn Bhd. All Rights Reserved.
Specifications are subject to change.
