CONCEPT
Z900
ESSENCE
-
DUAL FRONT DISC BRAKES
-

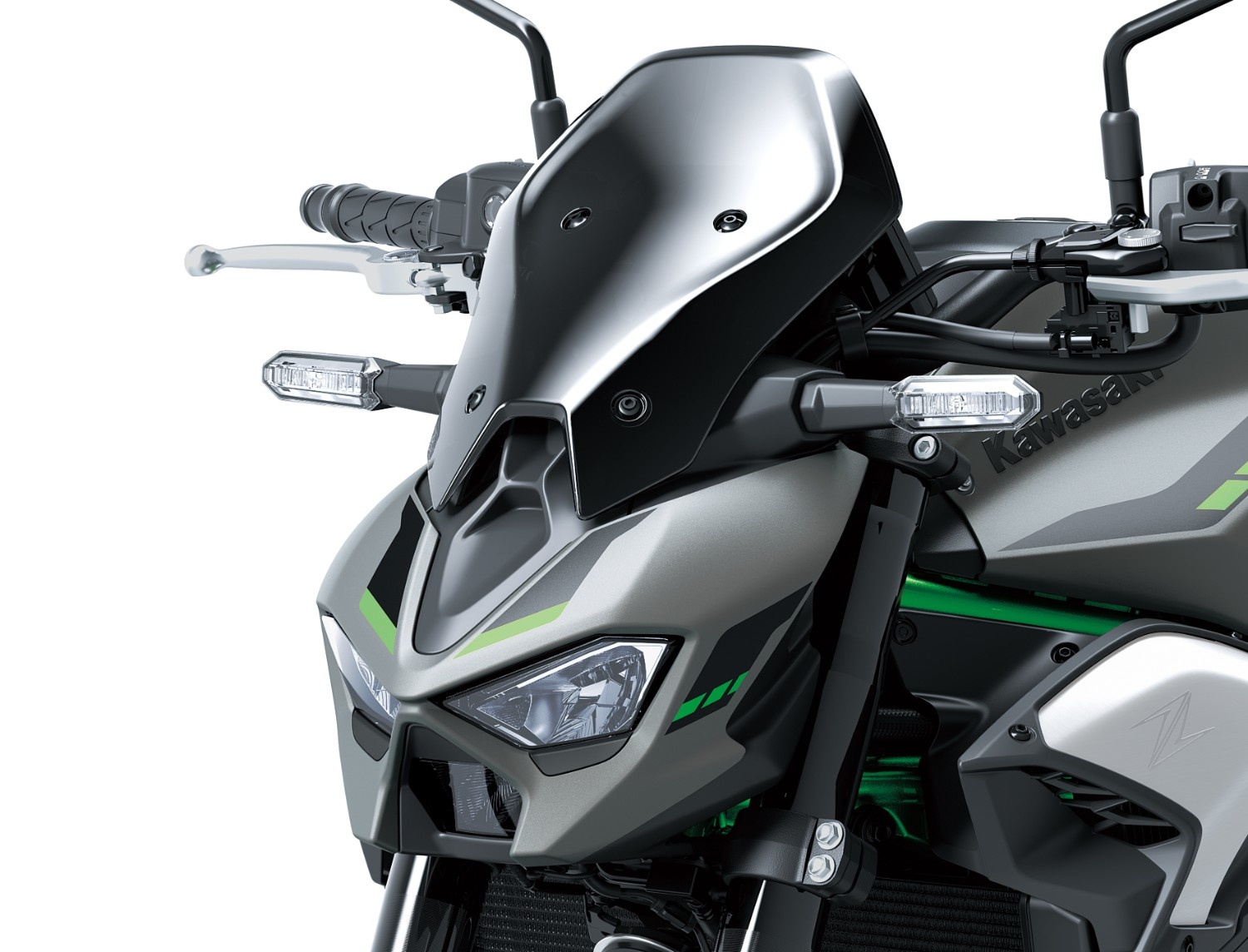

REFINED SUGOMI STYLING
-

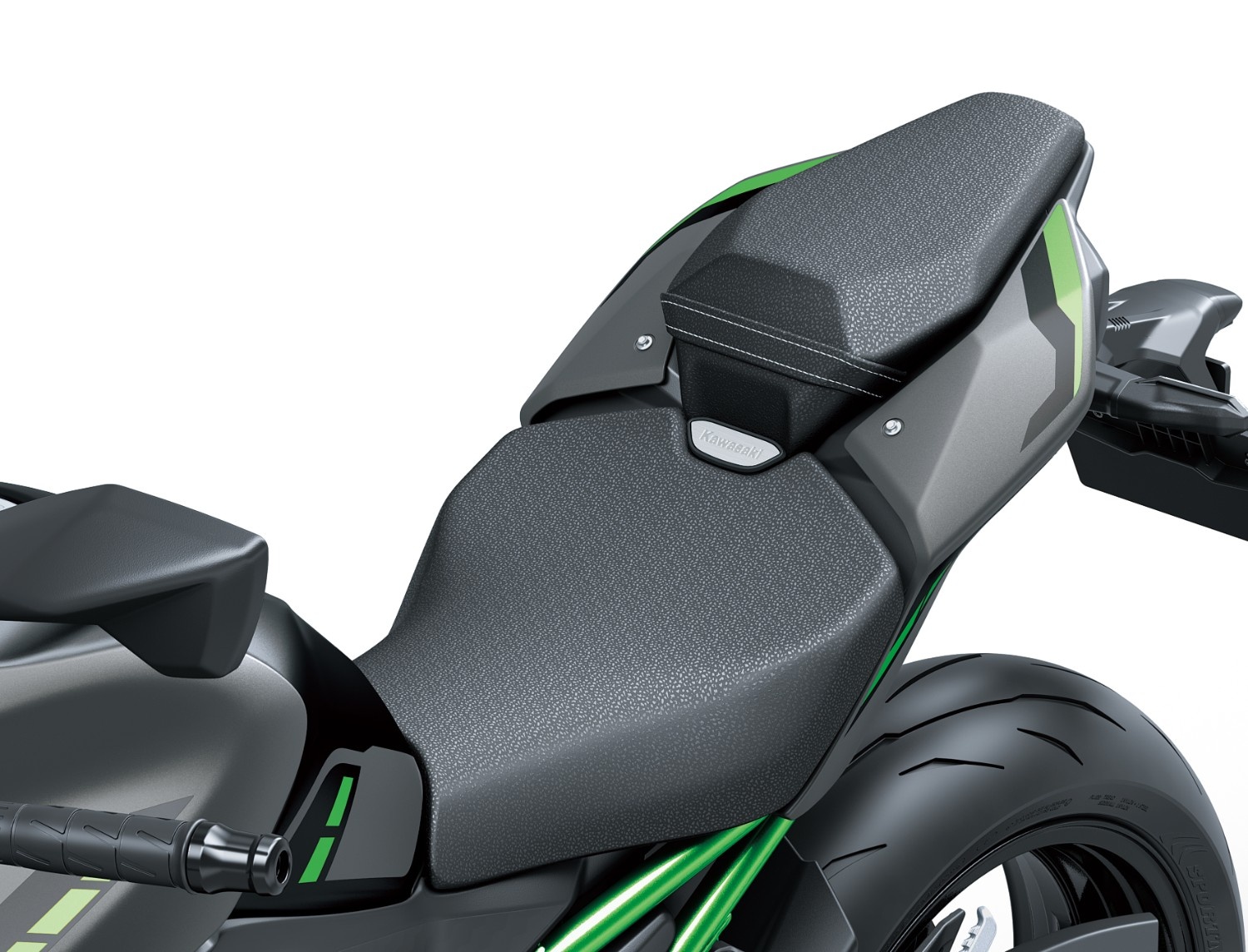

RIDER AND PASSENGER COMFORT
-
EXCITING IN-LINE FOUR ENGINE
TOP FEATURES

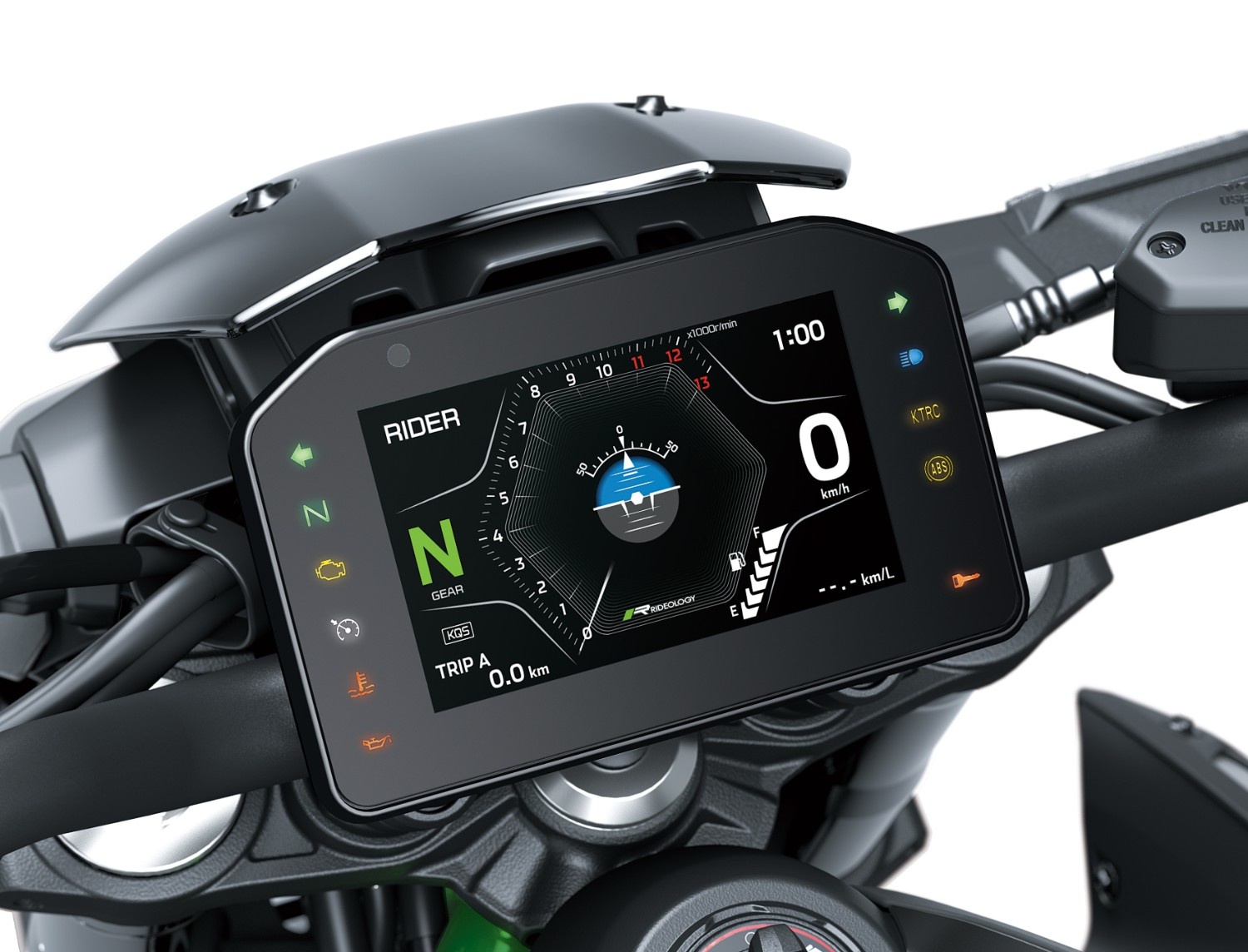

TFT COLOUR INSTRUMENTATION
A new 5” full-colour TFT display offers a high-tech, premium cockpit look with vivid visibility and wide viewing angles. The screen automatically adjusts brightness and background based on ambient light or rider preference.

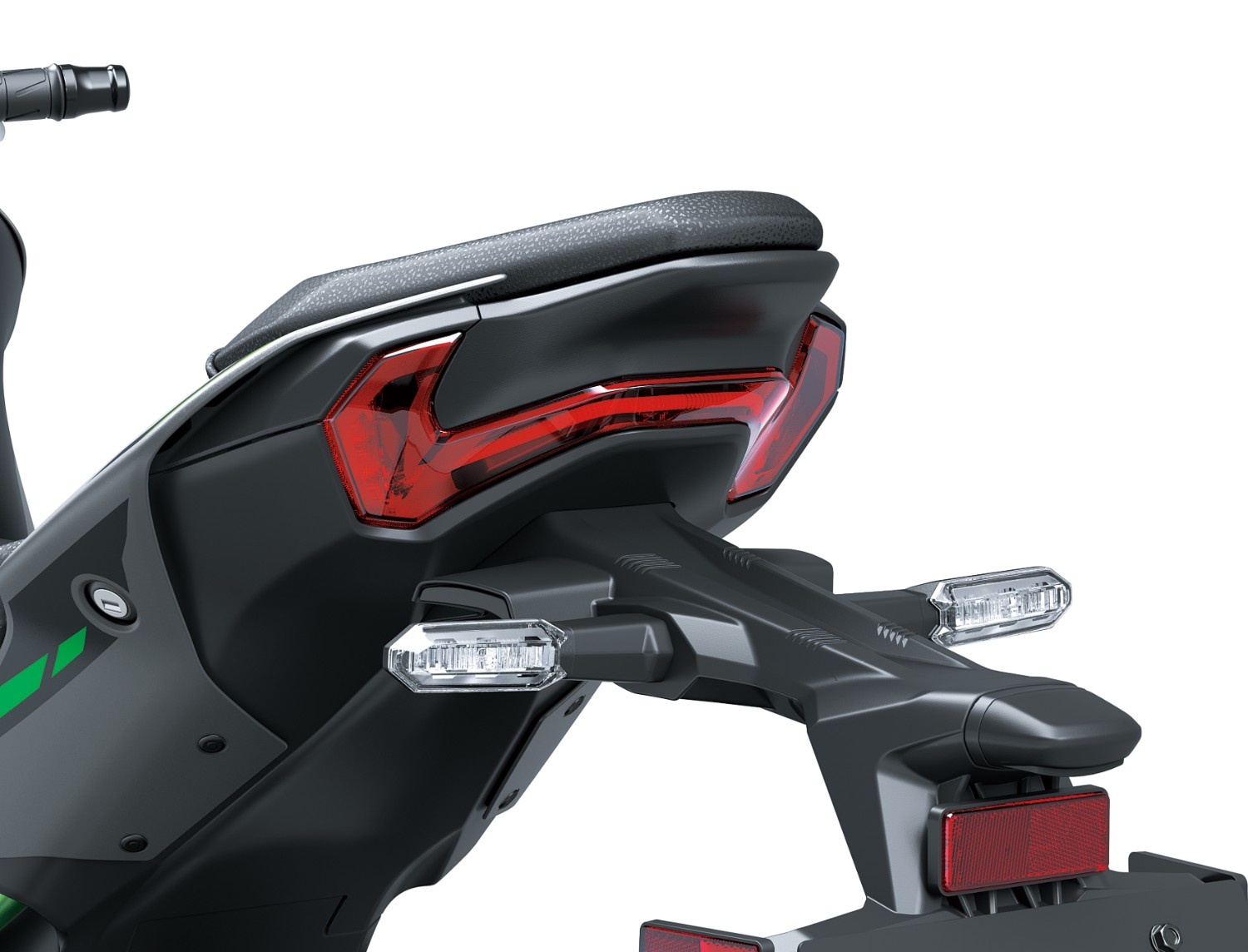

COMPACT TAIL DESIGN
A shorter tail cowl and floating-style taillight create a sleek, aerodynamic look, enhancing the bike’s compact and agile image.

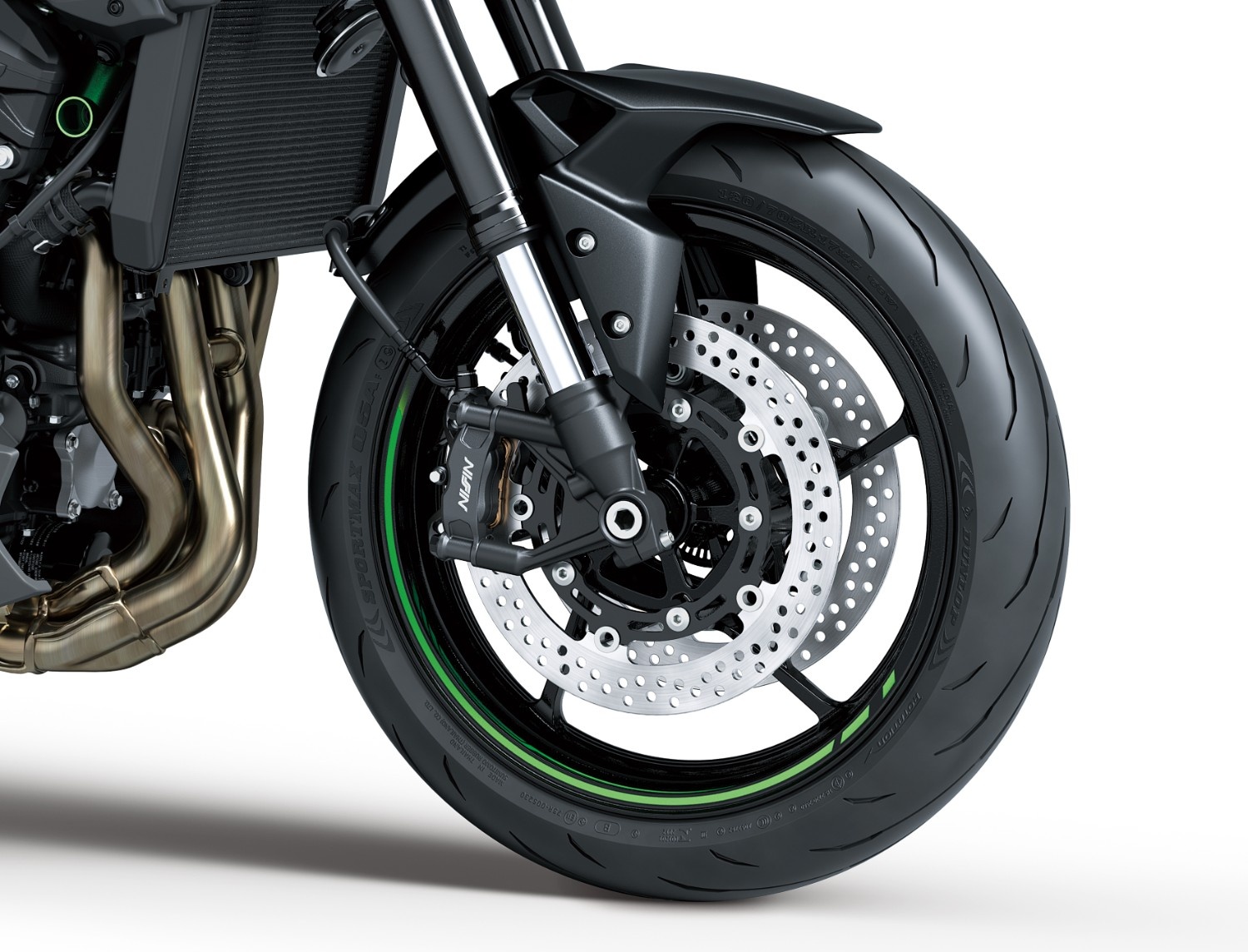

ADVANCED BRAKES, WHEELS & TYRES
Dual ø300 mm front disc brakes with radial-mounted opposed 4-piston calipers deliver powerful stopping performance and enhanced brake control, ensuring confident handling during sporty rides.SPECIFICATIONS

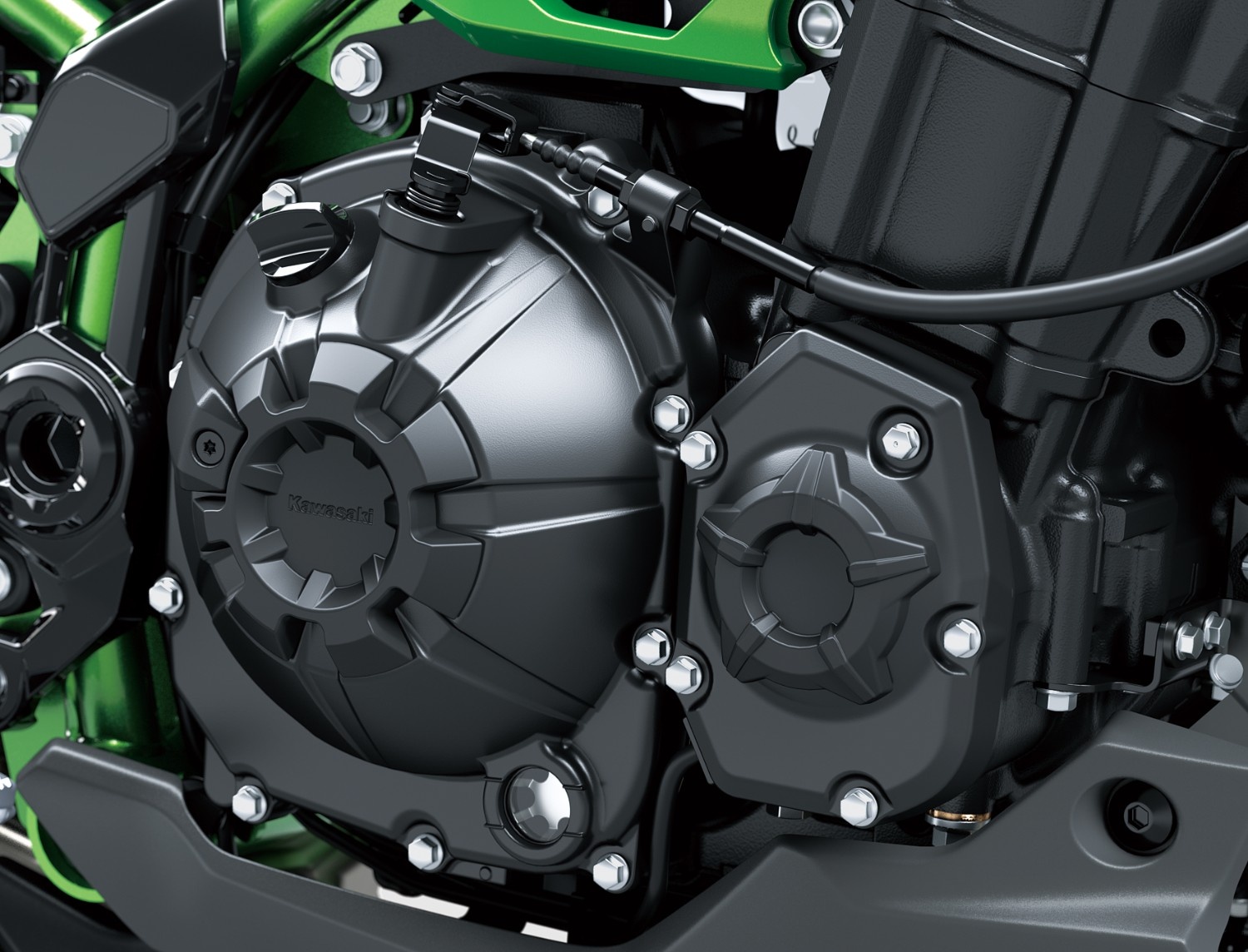

EXCITING IN-LINE FOUR ENGINE
ENGINE
ASSIST & SLIPPER
CLUTCH
TECHNOLOGY
Chassis Management Technology
POWER
-
Engine Type
Liquid-cooled, 4-stroke In-Line Four DOHC, 16 valves
-
Bore X Stroke
73.4 x 56.0 mm
-
Displacement
948 cc
-
Compression Ratio
11.8:1
-
Fuel Supply
Fuel injection: 36 mm x 4
-
Lubrication System
Forced lubrication, wet sump
-
Starting System
Electric
-
Ignition System
Digital
-
Max. Power
91.0 kW / 9,500 rpm
-
Max. Torque
97.4 N·m / 7,700 rpm
PERFORMANCE
-
Frame Type
Trellis, High-tensile Steel
-
Front Suspension
41 mm inverted fork with rebound damping and spring preload adjustability
-
Rear Suspension
Horizontal Back-link, gas-charged shock with rebound damping and spring preload adjustability
-
Wheel Travel (Front/Rear)
120 mm / 140 mm
-
Caster (Rake Angle)
24.7°
-
Trail
110 mm
-
Steering Angle (left/right)
33° / 33°
-
Tyre (Front)
120/70ZR17M/C (58W)
-
Tyre (Rear)
180/55ZR17M/C (73W)
-
Front Brakes
Dual semi-floating 300 mm discs (Effective diameter: 264 mm)
-
Front Caliper
Dual radial-mount, opposed 4-piston
-
Rear Brakes
Single 250 mm disc (Effective diameter: 216 mm)
-
Rear Caliper
Single-piston
DETAILS
-
Overall Length
2,065 mm
-
Overall Width
830 mm
-
Overall Height
1,075 mm
-
Wheelbase
1,450 mm
-
Road Clearance
145 mm
-
Seat Height
810 mm
-
Curb Mass
213 kg
-
Dry Mass
193 kg
-
Fuel Capacity
17 litres
-
Driving System
Chain
-
Transmission
6-speed, Return Shift
-
Primary Reduction ratio
1.627 (83/51)
-
Final Reduction ratio
2.933 (44/15)
-
Clutch Type (Primary)
Wet Multi-Disc, Manual
** The curb weight includes all materials and fluids required to operate properly, a full tank of fuel (over 90 percent capacity), and tool kit (if provided).
KAWASAKI CARE: Read the Manual and all warnings on the product. Always wear a helmet, eye protection, and appropriate clothing for riding conditions. Never drive under the influence of drugs or alcohol. Follow the maintenance schedule in your Manual. © 2022 Edaran Modenas Sdn Bhd. All Rights Reserved.
Specifications are subject to change.
