CONCEPT

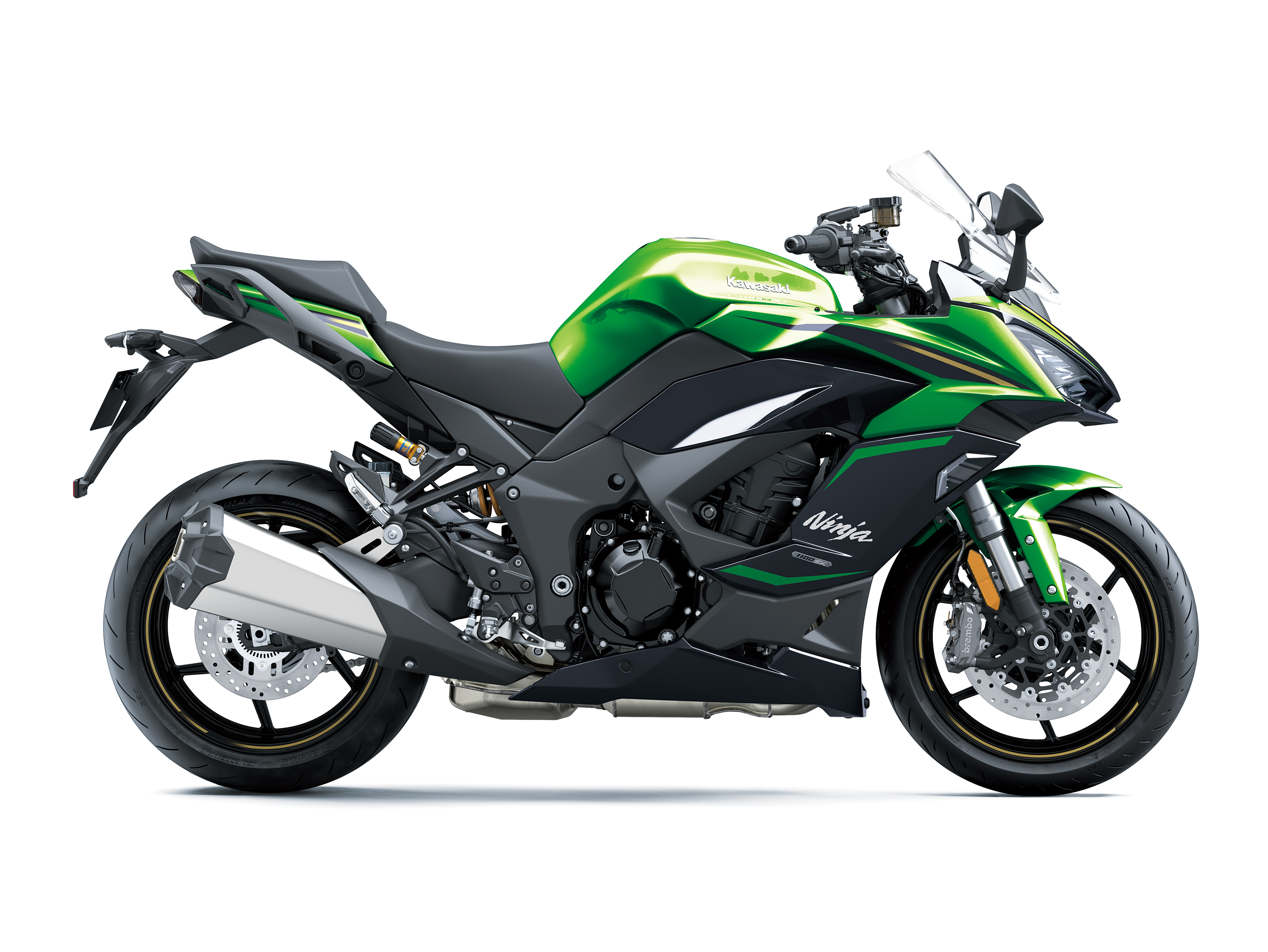

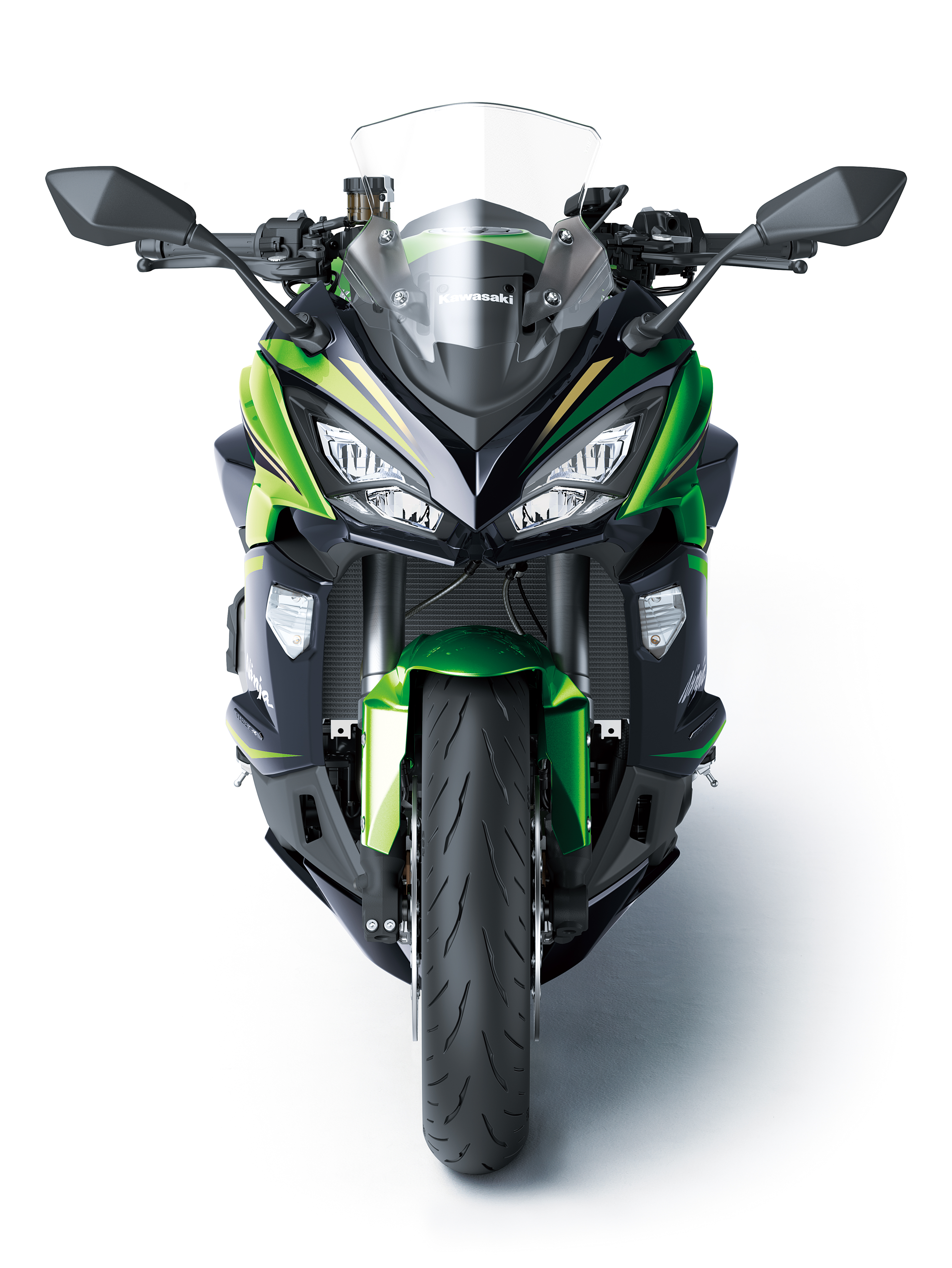

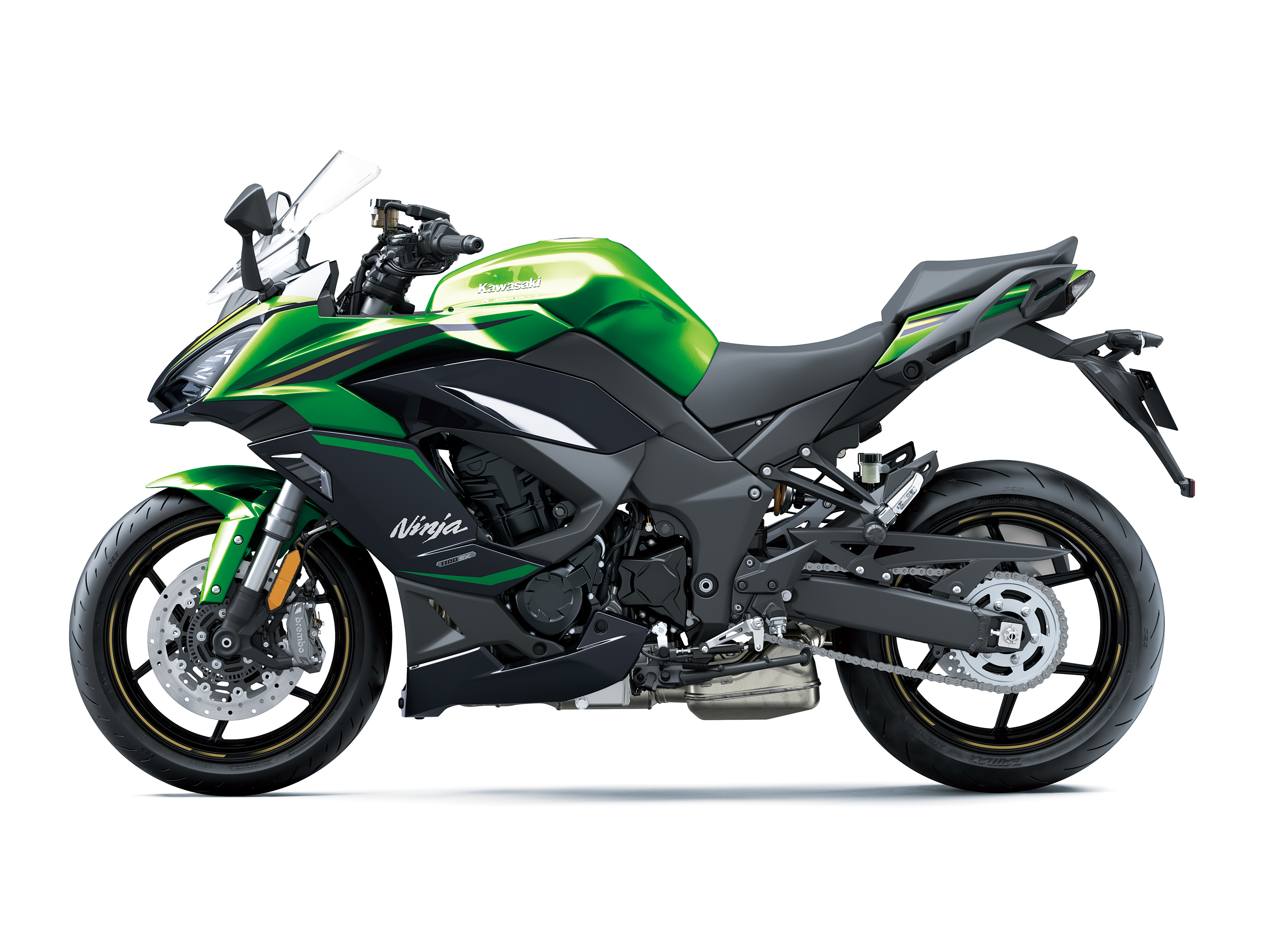

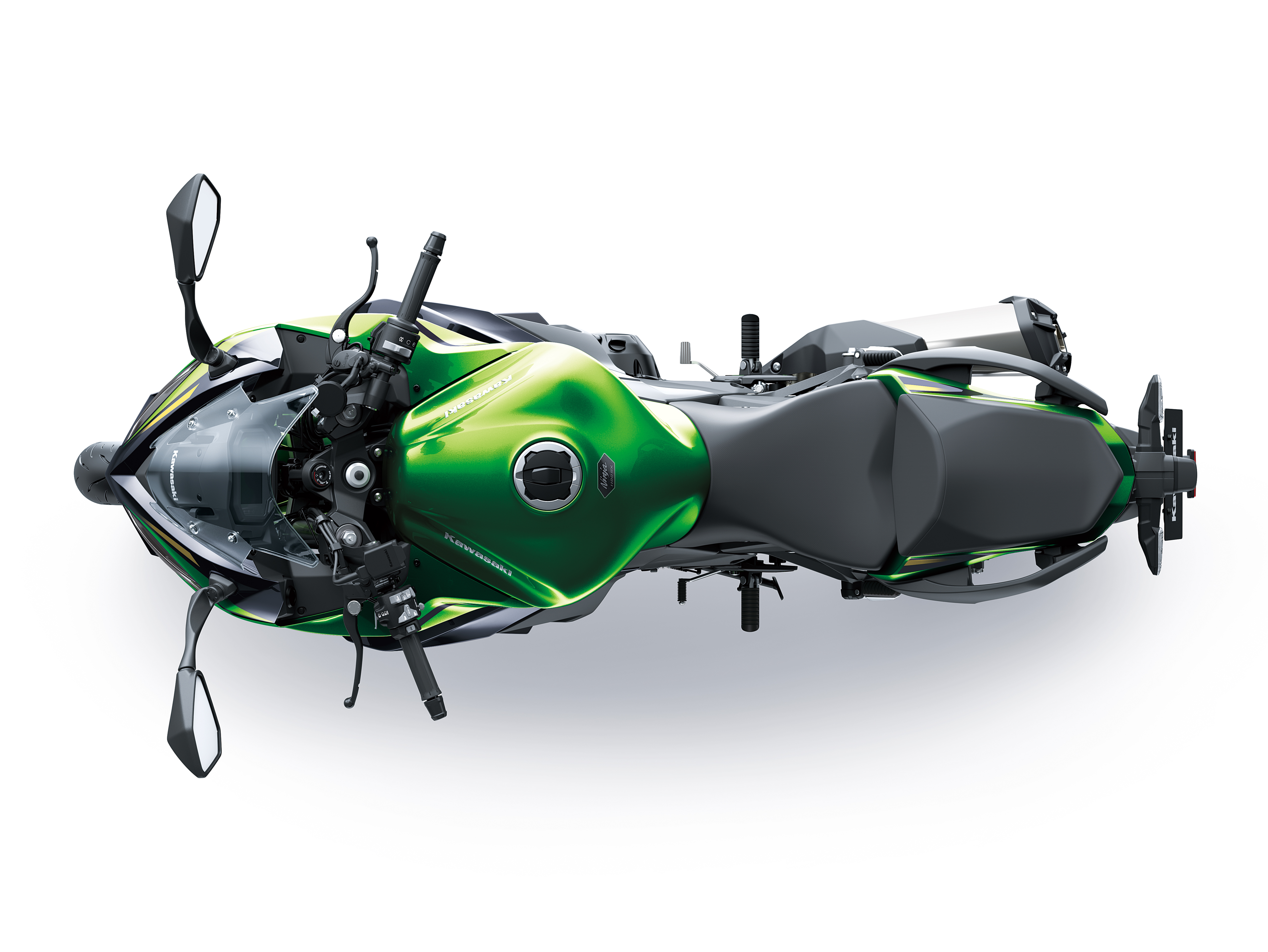

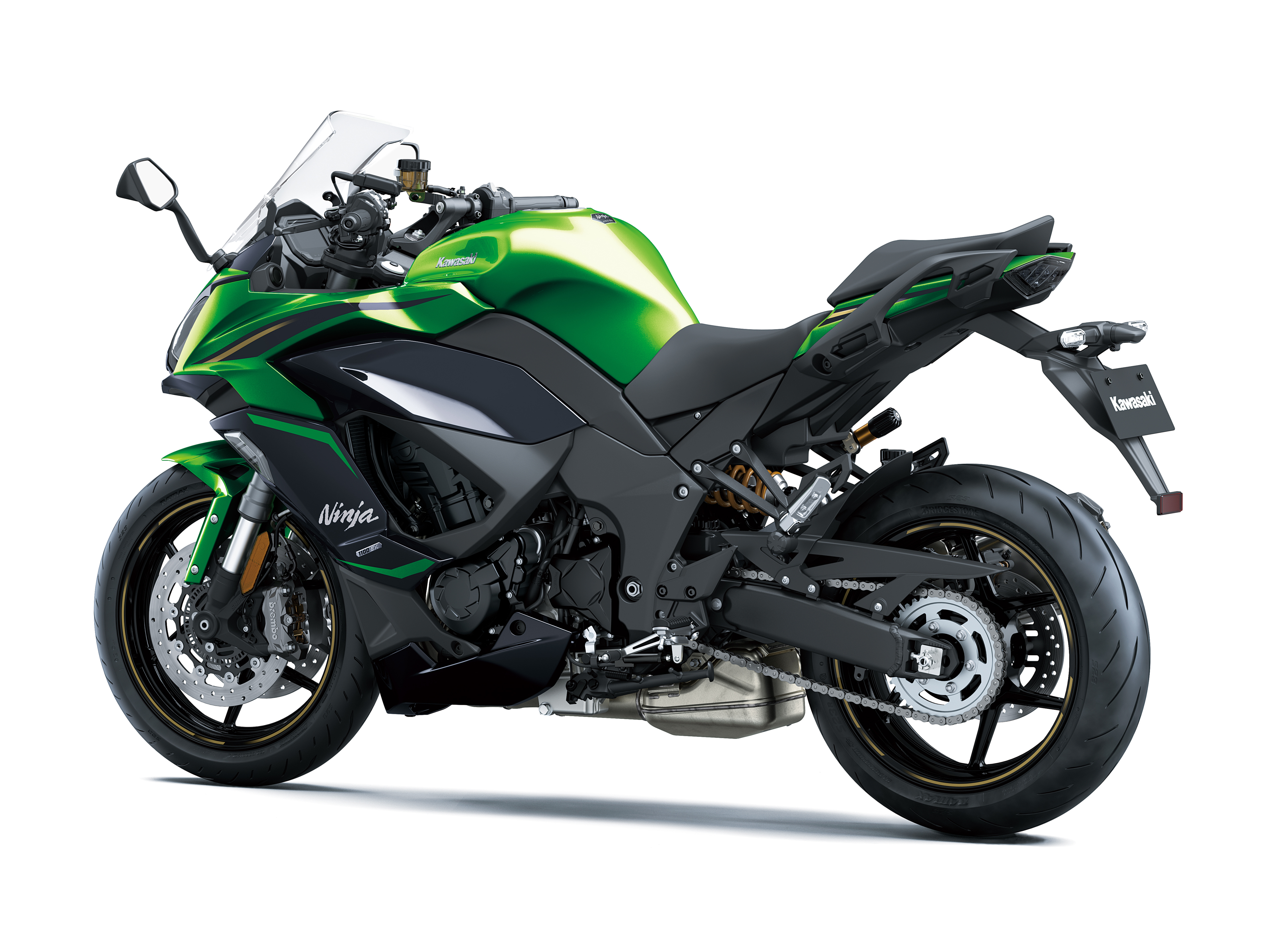

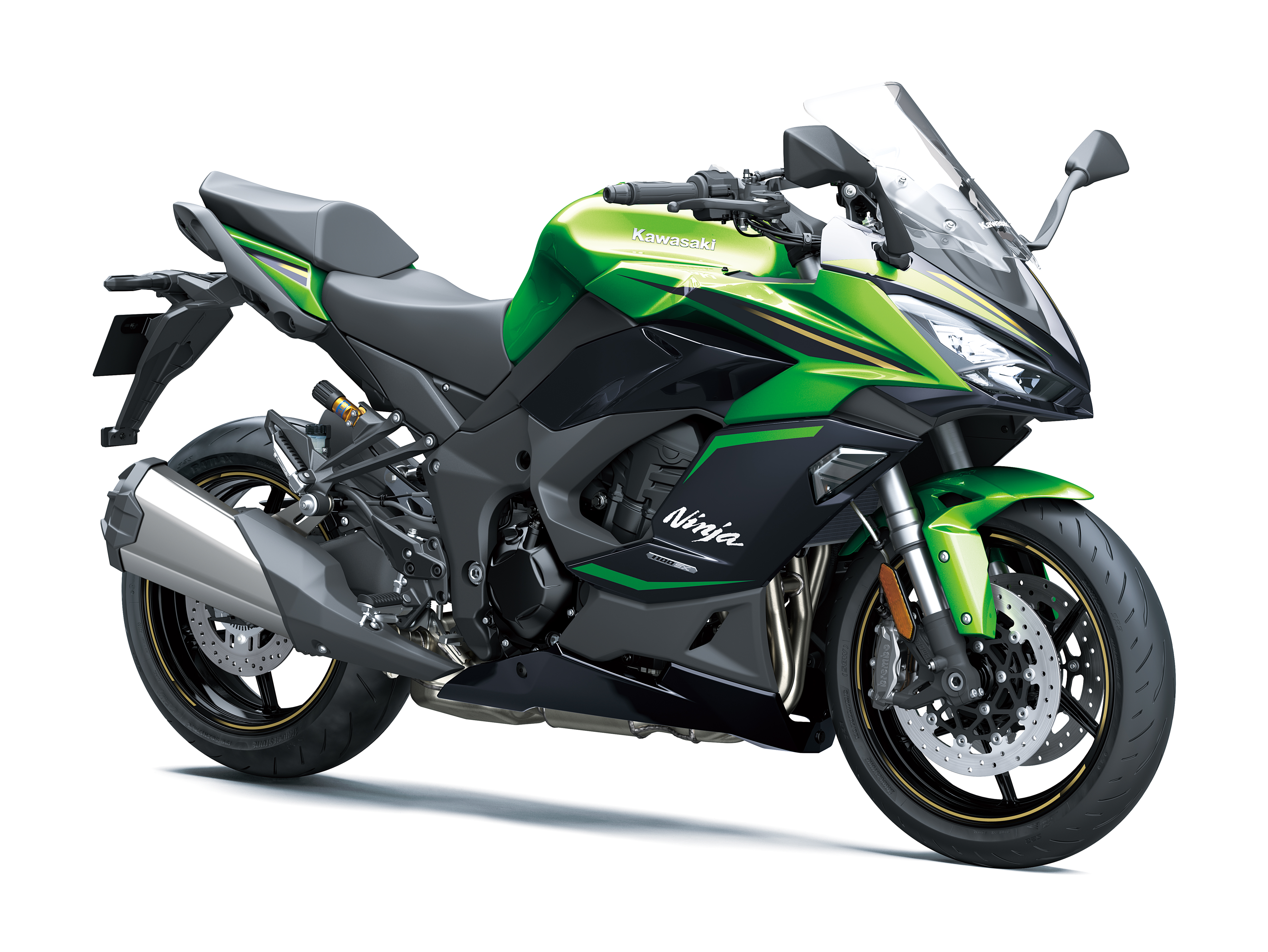

NINJA 1100SX SE
ESSENCE
-

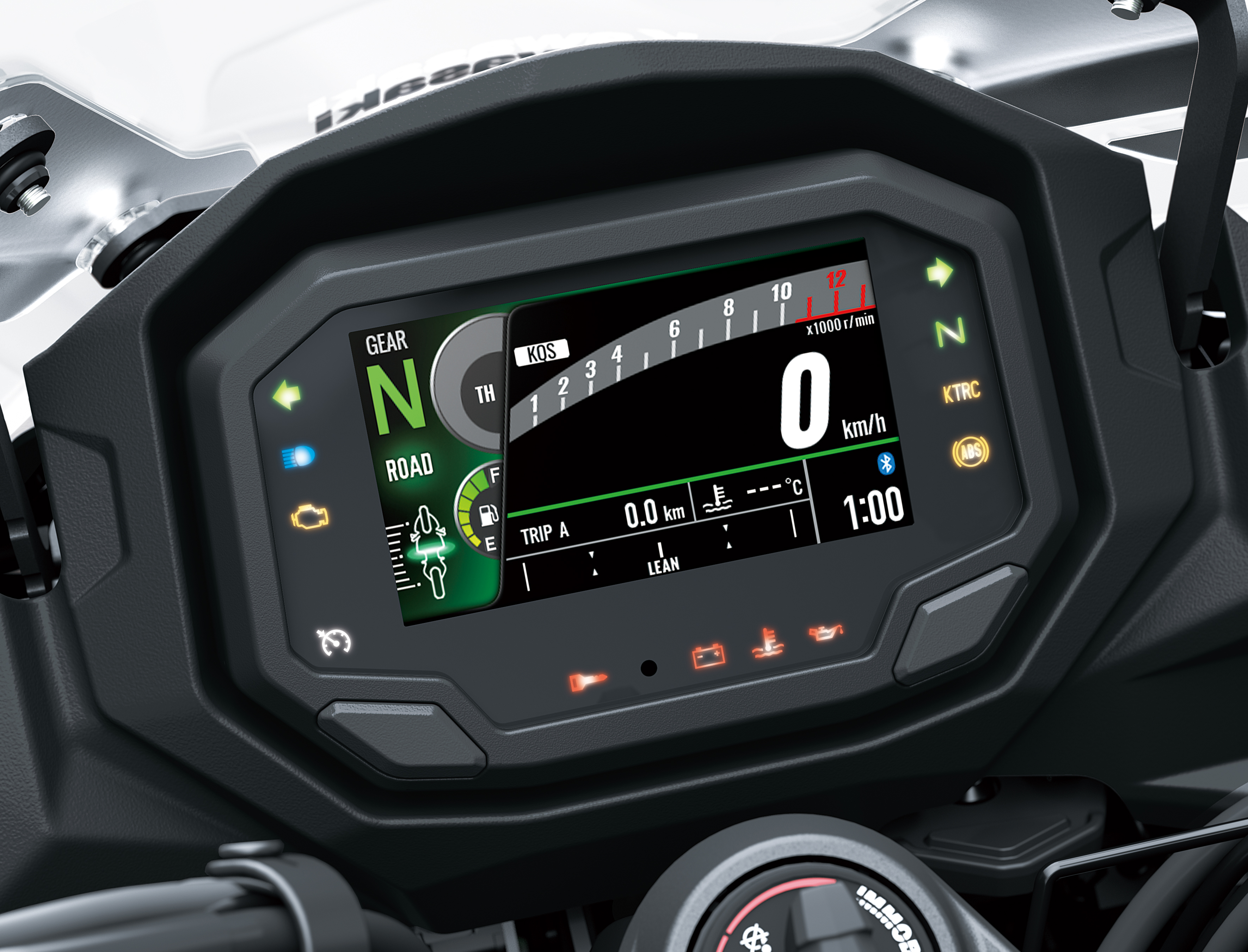

RIDER SUPPORT TECHNOLOGY : IMU-ENHANCED ELECTRONIC PACKAGE
-

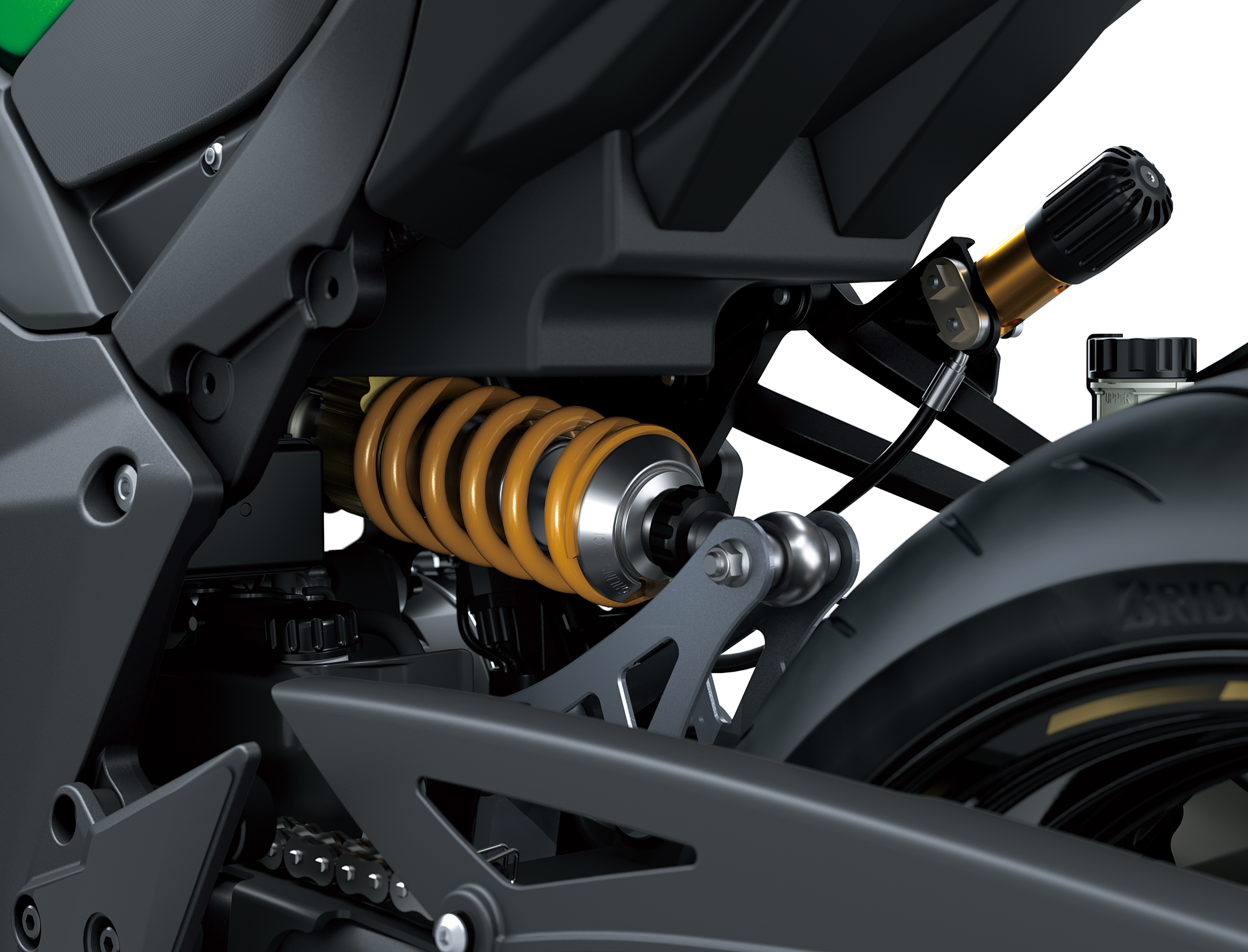

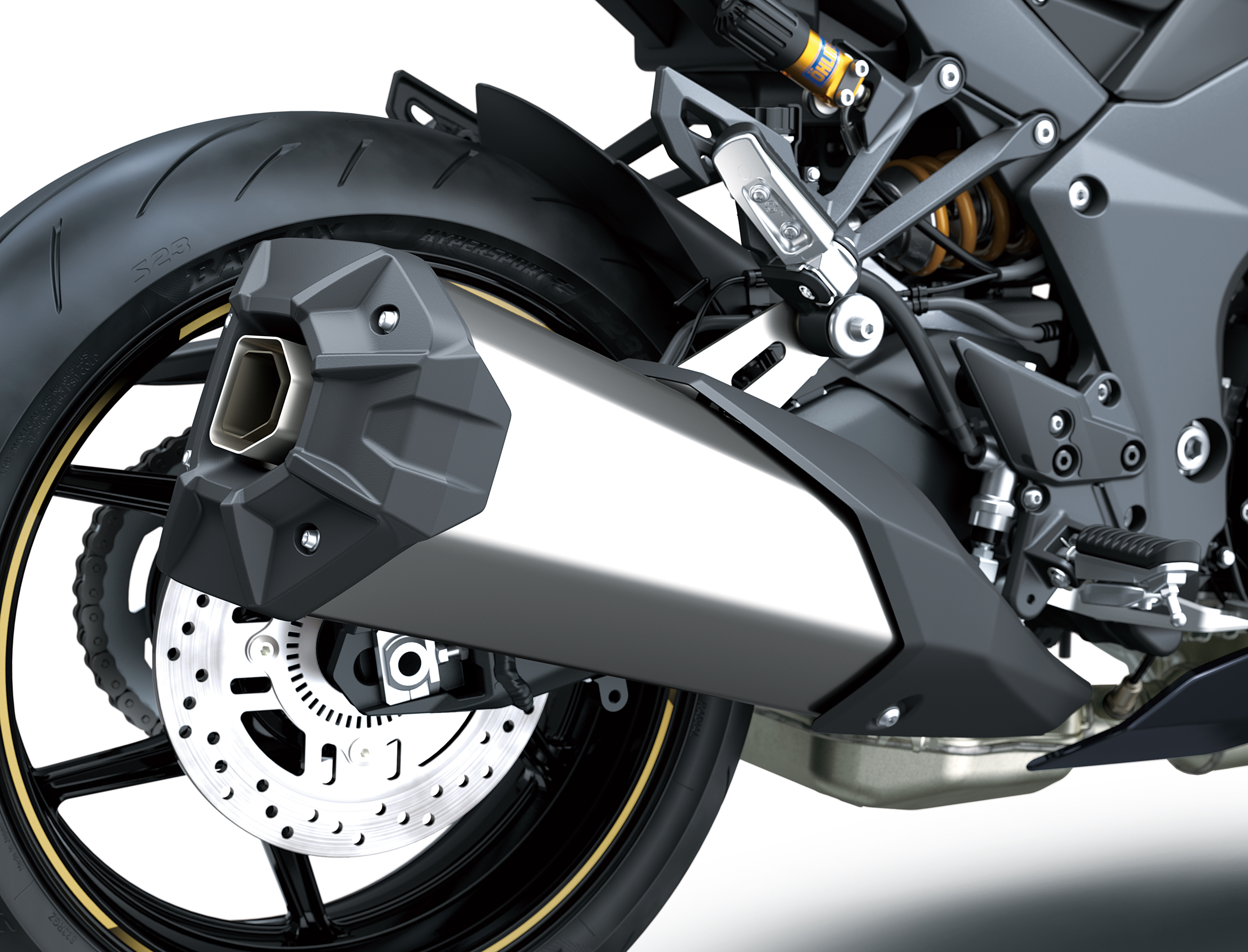

OHLINS S46 GAS-CHARGED MONOSHOCK
-

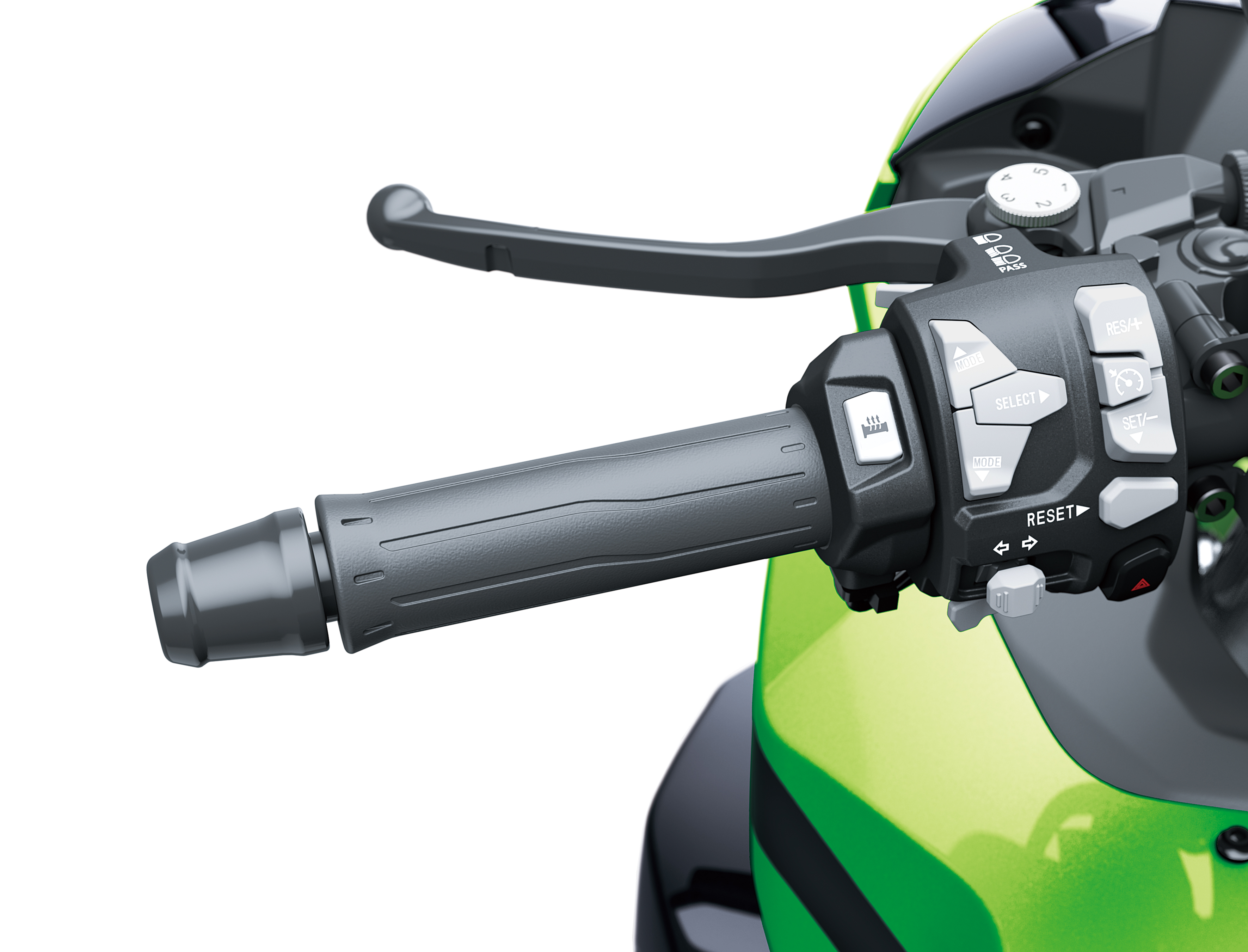

ELECTRONIC CRUISE CONTROL
-

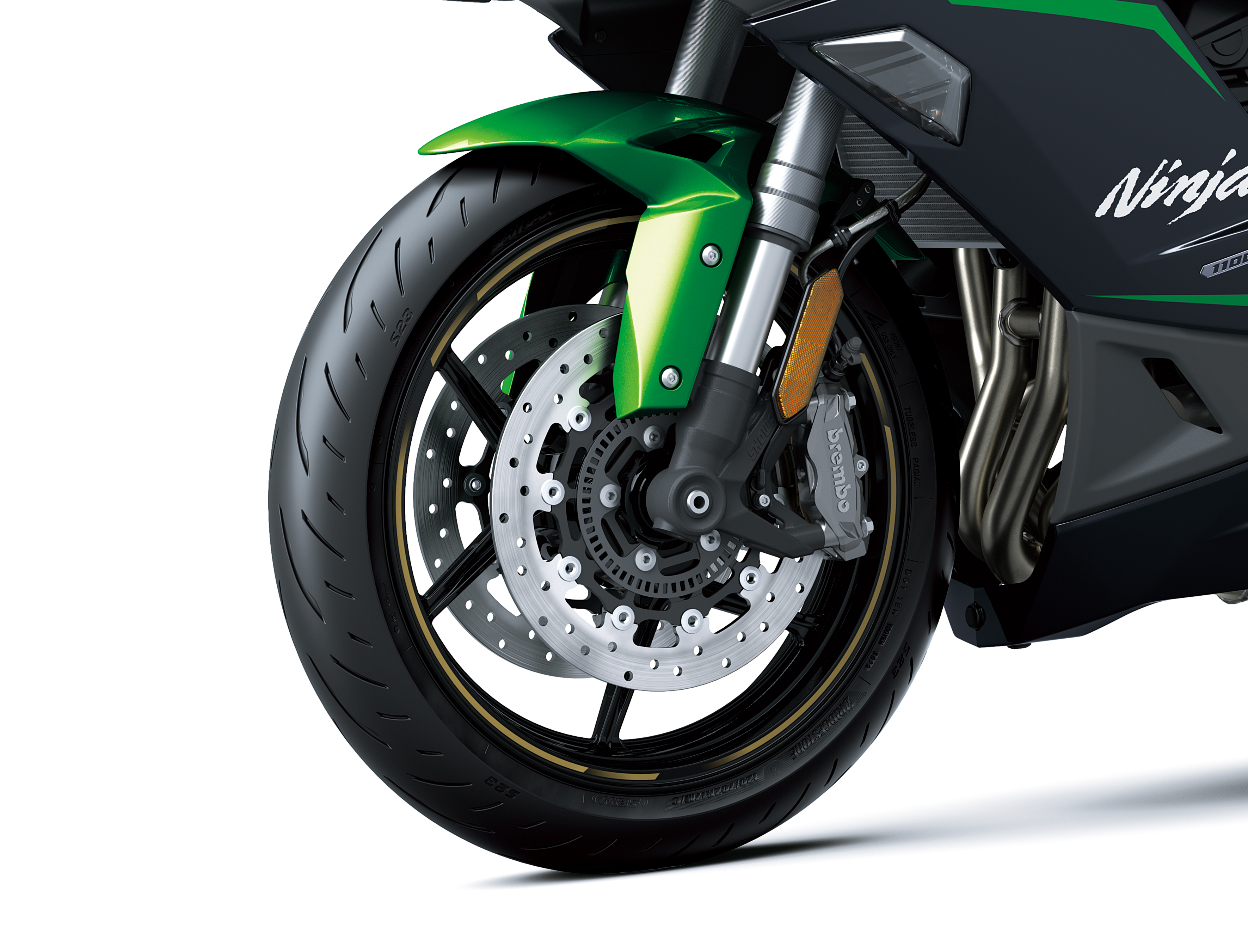

BREMBO M4.32 MONOBLOC CALIPERS
-

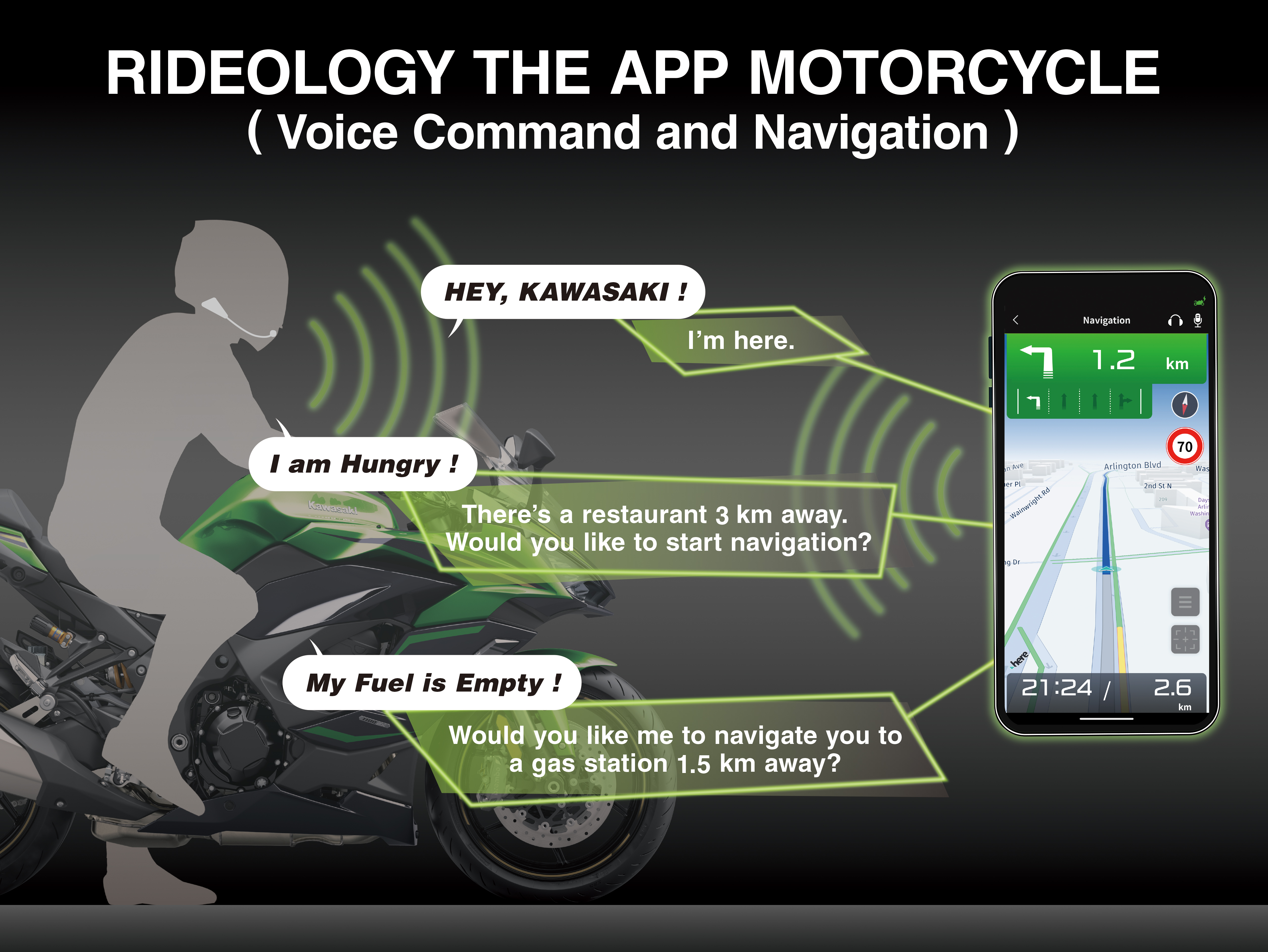

VOICE COMMAND & NAVIGATION
-
KAWASAKI QUICK SHIFTER (KQS)
-
KAWASAKI TRACTION CONTROL (KTC)
-
ENHANCED CHASSIS ORIENTATION AWARENESS :IMU
TOP FEATURES
KIBS (KAWASAKI INTELLIGENT ANTI-LOCK BRAKE SYSTEM)
POWER MODE SELECTION
COMFORTABLE ERGONOMICS
SPECIFICATIONS
VARIANT
SE
BREMBO
M4.32
OHLINS
S46
TECHNOLOGY
POWER
-
Engine
Liquid-cooled, 4-stroke In-Line Four DOHC, 16 valves
-
Displacement
1,099 cm3
-
Bore X Stroke
77.0 x 59.0 mm
-
Compression Ratio
11.8:1
-
Fuel Supply
Fuel injection: ø38 mm x 4
-
Lubrication System
Forced lubrication, wet sump
-
Ignition System
Digital
PERFORMANCE
-
Max. power
100.0 kW {136 PS} / 9,000 min-1
-
Max. torque
113.0 N·m {11.5 kgƒ·m} / 7,600 min-1
-
Driving system
Chain
-
Transmission
6-speed, return
-
Primary reduction ratio
1.528 (81/53)
-
Final reduction ratio
2.800 (42/15)
-
Clutch type (Primary)
Wet multi-disc, manual
DETAILS
-
Overall length
2,100 mm
-
Overall width
805 mm
-
Overall height (High/Low position)
1,225 mm / 1,190 mm
-
Wheelbase
1,440 mm
-
Road clearance
135 mm
-
Seat height
835 mm
-
Curb mass
234 kg
-
Dry mass
213 kg
-
Fuel tank capacity
19 litres
-
Suspension: Front
ø41 mm inverted fork with compression and rebound damping and spring preload adjustability
-
Suspension: Rear
Horizontal Back-link, Öhlins S46 gas-charged rear shock with rebound damping adjustability and remote spring preload adjustability
-
Brakes: Front
Dual radial-mount, Brembo M4.32 monobloc, opposed 4-piston
-
Brakes: Rear
Single ø260 mm disc, Single Piston
** The curb weight includes all materials and fluids required to operate properly, a full tank of fuel (over 90 percent capacity), and tool kit (if provided).
KAWASAKI CARE: Read the Manual and all warnings on the product. Always wear a helmet, eye protection, and appropriate clothing for riding conditions. Never drive under the influence of drugs or alcohol. Follow the maintenance schedule in your Manual. © 2022 Edaran Modenas Sdn Bhd. All Rights Reserved.
Specifications are subject to change.
